Scan code: LN65391 Manufacturer code: FD-CA-DEF-R5-BKO

Define R5 Blackout Edition Silent Gaming Case from Fractal Design

Fractal Design Define R5 Blackout Edition Mid Tower Computer Chassis, USB 3.0, Ultra Silent Design, ATX/mATX/mini-ITX

Thumbnail 1 : Define R5 Blackout Edition Silent Gaming Case from Fractal Design Thumbnail 2 : Define R5 Blackout Edition Silent Gaming Case from Fractal Design Thumbnail 3 : Define R5 Blackout Edition Silent Gaming Case from Fractal Design Thumbnail 4 : Define R5 Blackout Edition Silent Gaming Case from Fractal Design
Scan code: LN65391 Manufacturer code: FD-CA-DEF-R5-BKO
3xs Approved
£99.98Item due on 21 December 2018
Pre order
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

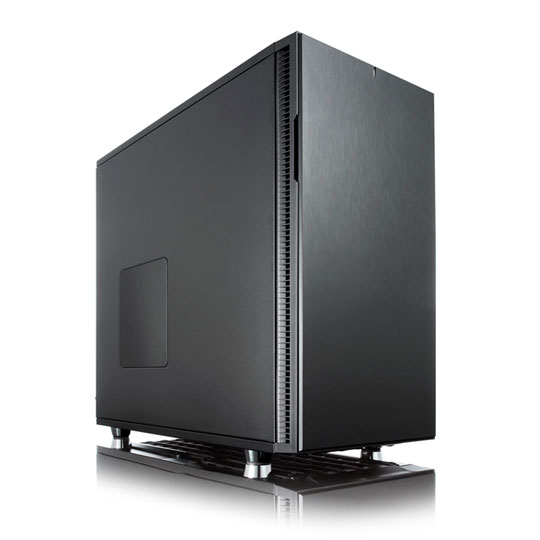

Product Overview The Fractal Design Define R5 Blackout Edition is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The Define R5 Blackout Edition case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent™ fan vent covers and finely tuned all black Dynamic Series fans.

The Define R5 Blackout Edition was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand. Features • Optimally designed for silent computing, while not compromising on airflow and cooling capabilities.
• Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front.
• Equipped with new tool-less ModuVent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
• Including two all-black Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
• Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.
• Newly configured front door with dual side mounting to better fit your work space.
• Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation and removal.
• The HDD cage system holds up to eight 3.5” or 2.5” drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages.
• The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components.
• Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design.
• The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system.
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
• Define R5 Blackout edition is available with window side panel.

Water cooling compatibility
• Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses (requires removal of drive bays).
• Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators) (420 and 360 mm radiators require removal of the ODD bay).
• Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm).
• Rear – 120 or 140 mm radiator.
Specifications
Core Chassis Specifications
Case Edition Define R5
Case Form Factor ATX
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 8 x 2.5"/ 3.5" HDD Docking
  • 2 x 5.25"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 9 x 120/140mm
Fans Included 2 x 120/140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 440 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 232 x 462 x 531 (WxHxD mm)
Weight 11.2 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Fractal Design Define R5 Blackout Edition Mid Tower Computer Chassis, USB 3.0, Ultra Silent Design, ATX/mATX/mini-ITX is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Solid and versatile. Bought this to house a 360mm radiator which I wanted to front mount, most other cases only offer top mount for 360mm radiators with a few with options for front mounting but then you lost 3.5" hard drive bays. Not so with the R5, super flexible mounting options and easy to build. Very well built, thick noise dampening coupled with my water-cooled CPU make this a very quiet case. Very happy with it.
Date published: 2017-09-20
Rated 5 out of 5 by from Big and quiet Nice case, plenty of room to get everything in. I did struggle to tidy the 4 pin power cable to the motherboard. Maybe it was the cable not being long enough from the Corsair RM650i PSU. Other than that the extra width gave me plenty of room to hide all the cables. The two SSD mounts behind the back plate are a good idea and I used both. Because of the cabling from my PSU I had to mount them half way off center because the cables would not reach. I think this is because my 3 hard drives and two SSDs need all the available Sata power connectors at the extreme ends of the cables, This made powering everything interesting. May be best get some extenders if you plan to fill the case up. The configurable cages for all the drives is a most excellent design. The trouble is there is space for loads of drives! Too many, so you'll be needing to remove a cage or two anyway. Two huge quiet fans included. I was a bit miffed I couldn't plug the fans into my motherboard because of the non-PWM fans. and have their own controller built into the case. Solidly built and quiet. reversible front door too!
Date published: 2017-03-07
Rated 5 out of 5 by from A top class case This is probably the best case I have come across. Beautifully made, well sound-proofed, solid and easy to work on. The case is slightly wider than most and this allows for better cable management and use of large 3rd party CPU coolers. Extremme flexibilty for placing of fans and coolers make it a dram to use. Only downside is the positioning of the two SSD mounts. A good idea but practically difficult when attaching the power supplies as only the straight connector at the end of a power cable will fit - hence two cables needed if you fit two SSD. A minor point which does not detract from the use of this case.
Date published: 2016-04-23
