Scan code: LN65392 Manufacturer code: FD-CA-DEF-R5-BKO-W

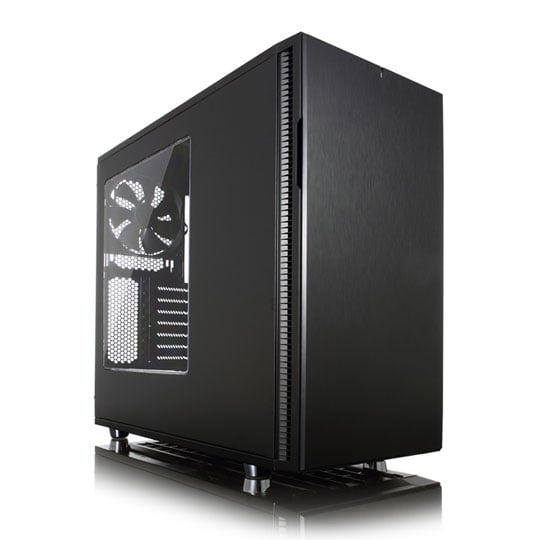

Fractal Design Define R5 Windowed Case- Blackout Edition

Fractal Design Define R5 Blackout Edition Mid Tower ATX Chassis + Window, USB 3.0, 7x Expansion Slots, 8x Fan Bays

Thumbnail 1 : Fractal Design Define R5 Windowed Case- Blackout Edition Thumbnail 2 : Fractal Design Define R5 Windowed Case- Blackout Edition Thumbnail 3 : Fractal Design Define R5 Windowed Case- Blackout Edition Thumbnail 4 : Fractal Design Define R5 Windowed Case- Blackout Edition
Scan code: LN65392 Manufacturer code: FD-CA-DEF-R5-BKO-W
3xs Approved
£104.99
From £8.75 / month (APR 0%)
Monthly Payment: £17.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
Monthly Payment: £8.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Sep 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The Fractal Design Define R5 Blackout Edition is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The Define R5 Blackout Edition case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, ModuVent™ fan vent covers and finely tuned all black Dynamic Series fans.

The Define R5 Blackout Edition was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand. Features • Optimally designed for silent computing, while not compromising on airflow and cooling capabilities.
• Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front.
• Equipped with new tool-less ModuVent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
• Including two all-black Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
• Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.
• Newly configured front door with dual side mounting to better fit your work space
• Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation and removal
• The HDD cage system holds up to eight 3.5” or 2.5” drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
• The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components.
• Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design
• The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system.
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
• Define R5 Blackout edition is available with window side panel

Water cooling compatibility
• Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses (requires removal of drive bays)
• Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators) (420 and 360 mm radiators require removal of the ODD bay)
• Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
• Rear – 120 or 140 mm radiator
Specifications
Core Chassis Specifications
Case Edition Define R5 Window
Case Form Factor ATX
Motherboard Form Factor
  • ATX
  • MicroATX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 8 x 2.5"/ 3.5" HDD Docking
  • 2 x 5.25"
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 8 x 120/140mm
Fans Included 2 x 120/140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 440 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 232 x 462 x 531 (WxHxD mm)
Weight 10.7 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Fractal Design Define R5 Blackout Edition Mid Tower ATX Chassis + Window, USB 3.0, 7x Expansion Slots, 8x Fan Bays is rated 4.5 out of 5 by 4.
Rated 5 out of 5 by from Probably the best case ive played with Excellent cooling features, brilliant noise reduction. The case itself is sturdy and very customizable. I love this case!!!!
Date published: 2016-05-05
Rated 4 out of 5 by from Good product We bought this for our Grandson, he is very pleased with it and found it easy to assemble.
Date published: 2016-01-03
Rated 4 out of 5 by from Great Case Pretty well made case with excellent choices of positioning of drives and brilliant cable management. Nice and sleek. Looks great. Masses of room inside, especially for a mid sized case. Not completely silent, even with my silent Coolermaster PSU but substantially more quiet than my previous Haf case. Will be much better for recording music with. I can recommend it, if you want to treat yourself, even if the price tag it a little high.
Date published: 2015-12-14
Rated 5 out of 5 by from Best case I have had This case looks good, feels solid and most importantly for me, it's silence optimised. The included fans are very quiet and when using the integrated fan controller on its lowest speed, along with the Be Quiet! Dark Rock 3 CPU cooler my PC is basically inaudible. Scan once again have delivered the best prices and by far the best customer service. I will definitely be purchasing from here again. Cheers Guys!
Date published: 2015-11-08
