Scan code: LN61289 Manufacturer code: FD-CA-DEF-R5-BK-W

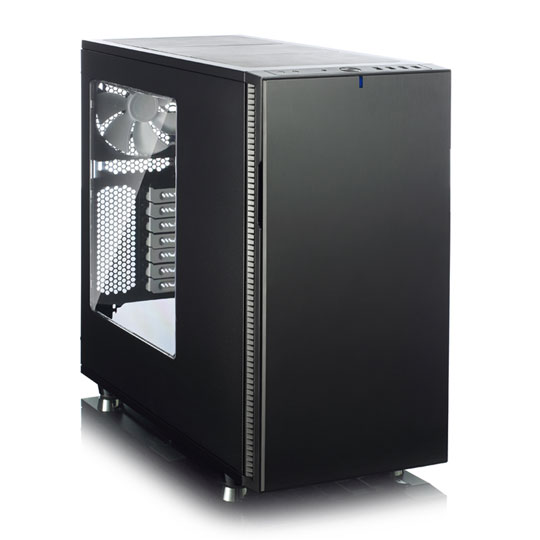

Fractal Design Define R5 Gaming PC Case with Window

Fractal Design Define R5 Black Mid Tower ATX/mATX/mini-ITX Computer Chassis with Window, USB 3.0, + Ultra Silent Design

Thumbnail 1 : Fractal Design Define R5 Gaming PC Case with Window Thumbnail 2 : Fractal Design Define R5 Gaming PC Case with Window Thumbnail 3 : Fractal Design Define R5 Gaming PC Case with Window Thumbnail 4 : Fractal Design Define R5 Gaming PC Case with Window Fractal Design Define R5 Gaming PC Case with Window : video thumbnail 1
Scan code: LN61289 Manufacturer code: FD-CA-DEF-R5-BK-W
3xs Approved
£98.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Sep 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview The Fractal Design Define R5 is the next evolution in the widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

The Define R5 case reaches the highest level of silent computing through strategically placed dense soundabsorbing material, ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics cards. Should you wish to expand your system with water cooling components or more fans the layout can easily be configured to meet your demand. Features • Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow and cooling capabilities.
• Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front.
• Equipped with new tool-less ModuVent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
• Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
• Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.
• Newly configured front door with dual side mounting to better fit your work space.
• Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.

Radiator Support and Information

Front - 360, 280, 240, 140 and 120mm radiators of all thicknesses (requires removal of drive bays)

Top - 420, 360, 280, 240, 140 and 120mm radiators (A thickness limitation of 55mm for both radiator+fan applies on 420, 280 and 140mm radiators)
(420 and 360mm radiators require removal of the ODD bay)

Bottom - 120 or 240mm radiator (Use of radiators in the bottom position limits the PSU length to 165mm)

Rear - 120 or 140mm radiator
Specifications
Core Chassis Specifications
Case Edition Define R5
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 8 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays 9 x 120/140mm
Fans Included 2 x 140mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 180 mm
Max GPU Card Length 440 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials
Dimensions 232 x 451 x 521 (WxHxD mm)
Weight 11.2 kg (Approx)
Please Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Fractal Design Define R5 Black Mid Tower ATX/mATX/mini-ITX Computer Chassis with Window, USB 3.0, + Ultra Silent Design is rated 5.0 out of 5 by 5.
Rated 5 out of 5 by from Excellent case This is a great case. Very well laid out, plenty of room for two gpus and great cable management. Looks good too. The only very slight niggle and I mean slight, is that the case is a little flexible with the side panels off. With the panels on, it is more than adequate. Something to be aware of as well is the limited space for water cooling radiators. Some will fit, others won't. Don't get the wrong idea, I love this case, just be aware of these two points.
Date published: 2015-08-08
Rated 5 out of 5 by from The Best Case I've Used The case is excellently put together, Fractal have thought of everything. Scan were very quick with delivery too. It's a shame I didn't get the case in white though, there were some issues with the stock I think, but I'm happy with the black one too. It only includes 2 fans, they're great fans but be aware that stock cooling on this case is pretty terrible, it needs a few more. I added 2 more fans, 1 intake and 1 exhaust (using up the modvent). When I'm not gaming the fan controller set to lowest makes the whole system inaudible even with the modvent open. With the new fans the temps of my rig dropped more than 20c under heavy load (with the inclusion of a new CPU cooler as well). Speaking of the cpu cooler, there's plenty of room for some large air cooled towers, I'm using a phanteks tc12dx and have about 2-3cm clearance from the window. It's got plenty of graphics card room, including a removable hard drive cage, I took mine out to help airflow. All in all. A very customizable case, looks very sleek and is my new favourite thing.
Date published: 2015-07-07
Rated 5 out of 5 by from Excellent case design Bought this case after seeing a system in Custom PC based on it and I'm not dissappointed at all. There are some excellent features on this case to help build a tidy and smart system. Key hightlights - Cable routing holes - SSD mounts between the motherboard mount and the side panel for 2 drives - Choice of drive bay configurations for 3.5" drives - Very quiet - Roomy The only "slight" niggle and it's not massive was the hole for the CPU power was awkward to feed the connector through. Did result in grommet coming off which isn't easy to put back on. If your after a new case, go no further!
Date published: 2015-05-06
Rated 5 out of 5 by from I could not be happier Bought this to replace my NZXT Phantom as I wanted something a bit quieter, a bit more reserved and large enough to fit a Kraken X61. Installing the components was too easy - the x61 fits just fine at the top once the drive cage was removed (and two of the sound dampening panels removed). The case is extremely quiet, even with the top panels removed and an extra intake fan added to the front. All in all, a worthy upgrade from a Phantom, which in itself is an excellent case.
Date published: 2015-03-19
Rated 5 out of 5 by from Excellent Case Brilliant case, nice and spacious inside, plenty of cable management and fan options. it has around an inch at the back for the 24pin cable to be routed easily without any bulging of the back panel. well insulated, very silent. highly recommended.
Date published: 2014-12-30
  • y_2018, m_9, d_17, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_GB, sid_61289, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Will this fit?

I am looking at this case but need to check whether I can fit the Kraken X61 and an optical drive and hard drives at the same time. On reading the reviews you have to remove the optical drive bay to fit a 280mm rad at the top or remove the rear fan. The Kraken is only 27mm thick so can you put the optical drive on the bottom 5.25 external bay and fit the Kraken above it? Does anyone have this setup with this case without restricting airflow? I need the hdd left in there so dont want to move the Kraken to the front of the case.
Asked by: Witch1
Hello, On top of the 27mm thick radiator there will need to be fans which will add to the thickness. So i am unsure if there will be enough room. There is room for a 240mm radiator so you could try a corsair h100i which should fit with no problems. Thanks,
Answered by: LizN
Date published: 2015-10-17
