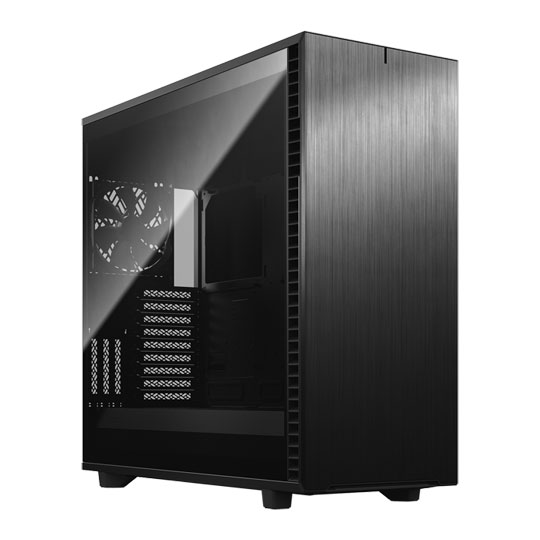

Fractal Design Define 7 XL Black Dark Windowed Full Tower PC Gaming Case
Fractal Design Define 7 XL, Black, Full Tower w/ Dark Tempered Glass, 3x 140mm Fans, USB 3.1 Type-C, SSI-EEB to Mini-ITX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£199.99|
|Total inc. interest:||£206.27|
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£199.99|
|Total inc. interest:||£212.17|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 8th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

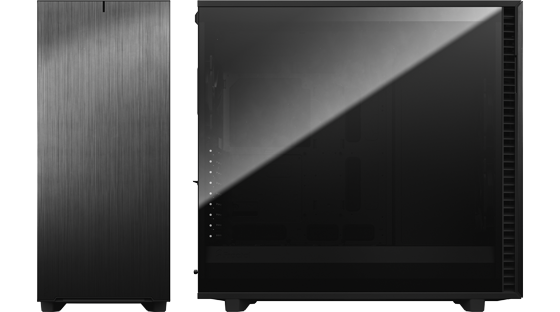

Fractal Design Define 7 XL Dark Windowed Black Gaming PC Case
Re-defining CapacityIntroducing the Define 7 XL, setting a new standard from what you should expect from a full tower chassis in terms of modularity, flexibility and ease of use. With a dual-layout interior, industrial sound damping, a full dark tinted tempered glass side panel and massively versatile layout supporting the largest E-ATX and enterprise boards, multiple GPU setups, crazy outlandish water loops and almost two dozen storage devices (in storage layout), you'll be hard pressed to find a limit to to what you can do with your builds in the Define 7 XL.
Limited only by your Imagination

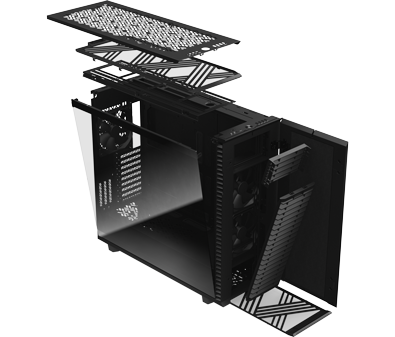

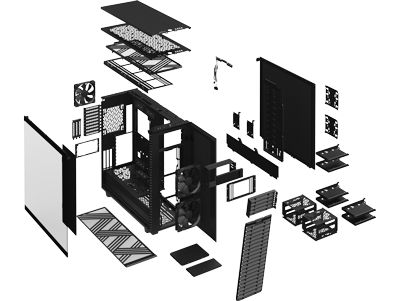

Heavily Optimised Modular Dual Layout Design Fractal Designs have been back to the drawing-board with the define 7 XL, reaching all new heights with a new dual layout design featuring a new top & front panel design, tool-less push-to-lock top latching side panels and a new filtration system, switch between open layout and storage layout depending on your needs freeing up space for greater cooling/greater storage. take advantage of the ultra slim Nexus 2+ fan hub and connect up to three PWM fans and six 3-pin fans and use the extensive cable management along the edge of the case to keep things neat and tidy.
New Milestone in top panel design The all new top panel design for the define 7 XL allows the top cover and cooling bracket to be completely removed to give you complete open access to both sides of the board from almost any angle, this amazing feature has also been improved with the inclusion of an interchangeable top cover that has been made far less complex than previous generations by removing all moving parts and plastic inserts to give you more durable and easy to install one-part steel covers, you can now simply pull to remove the solid sound damped cover and replace it with the included ventilated panel for additional cooling support.
Re-Defined Front Panel All new annodised aluminium cover curves to wrap panel edges and give the define 7 a smoother front profile. The front panel now houses hinges with magnetic latching that makes the process of opening and closing the panel much easier and an easy to use reversible hinge has been added to ensure changing the door can be done efficiently and easily. Finally the ODD bracket can be removed, flipped and reinstalled to extend fan rails all the way to the top to provide room for the installation of 4x120mm front fans.
Robust Front I/OThe front panel I/O has had an upgrade too for your convenience including a total of 5 USB ports consisting of, 1x USB 3.1 Gen 2 Type-C with fast charging and transfer speeds up to 10Gbps, 2x USB 3.0 ports and 2x USB 2.0, Fractal have ensured you will always have space to plug in those peripherals.
Take a Peek Inside
Superb airflow and cooling options The Define 7 XL Full Tower includes three dynamic X2 140mm fans, ensuring optimal airflow via two intake fans and a single exhaust, with a total of 9x 140mm or 11x 120mm fan mounts numerous airflow paths are available and for those of you that prefer to water cool, the Define 7 XL has you covered with radiator support up to 480mm in the front or in the top and 280mm in the base depending on whether or not the optical disk drive is installed, The removable PSU shroud inlays act as a pump/reservoir/drive mount using the included multi-bracket or can be removed to free up additional space at the front for large radiators.
Multitude of Storage options Part of the brilliance of having a modular open layout system is the amount of mounting options available to you and for storage Fractal Designs haven't held back with a whopping 8x 3.5"/2.5" expandable up to 18! 2x 2.5" dedicated SSD mounts expandable up to 5! and 2x 5.25" Drive bays, the ball really is in your court when it comes to storage options. The trays Fractal Designs have used are sturdy steel trays fitted with vibration-damping grommets and a new universal multi-bracket enables you to convert any standard 120mm fan position to a HDD/SDD, Pump or reservoir mount, build it your way.
Clean Cable ManagementFractal Designs have put large amounts of work into an effective cable management system for the Define 7, a detachable PSU cable helps to conceal excess cables under the shroud itself, there are integrated cable guides to make routing cables much simpler and cleaner there are 5 fractal branded velcro straps and a massive additional 16 tie-down locations, with a total of 30mm cable routing space and sleeved front I/O wiring keeping this case neat and tidy is a seamless process.
Easy Cleaning and Maintenance
take pride in your buildDefine 7 makes maintenance of your PC fun, efficient and simple with high airflow nylon filters integrated on the front, top, and base with full PSU coverage and front access for easy-to-clean convenience. Even if you decided to switch out your industrial sound damping steel top panel with the included ventilated panel, this is filtered also to reduce the chance of particulates making it into your case and with the new chassis design opening up to full expose the case interior there really is no excuse for not keeping the Define 7 XL Clean.
|Core Chassis Specifications|
|Case Edition||Define 7 XL|
|Case Form Factor||Full Tower|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Standard Expansion Slots||9|
|Vertical Expansion Slots||3|
|Fans & Filters|
|Fans Included||3 x 140mm|
|Liquid Cooling Support|
|Front Radiator Compatibility||1 x 120/140/240/280/360/420/480mm|
|Top Radiator Compatibility||1 x 120/140/240/280/360/420/480mm|
|Bottom Radiator Compatibility||1 x 120/140/240/280mm|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||185 mm|
|Max GPU Card Length||549 (524 w/ Front Fan, 359 w/ Optional HDD Cage) mm|
|Cable Routing Space||30 mm|
|Window Configuration||1 x Main Side|
|Window Construction||Tempered Glass (Tinted)|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length||250 mm|
|Chassis Physical Specifications|
|Chassis Construction Materials|
|Dimensions||240 x 566 x 604 (WxHxD mm)|
|Weight||16.64 kg (Approx)|
