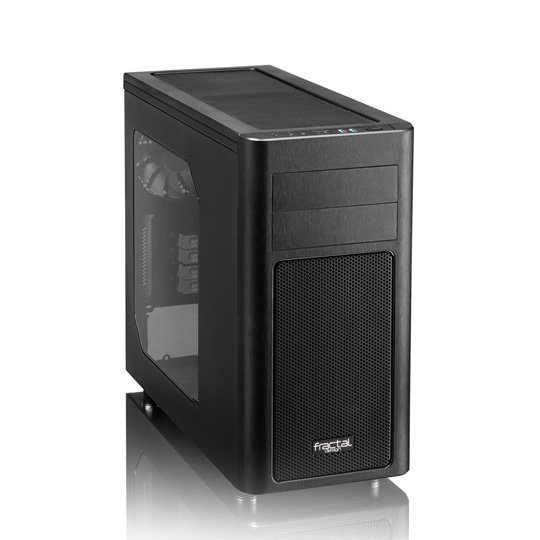

Fractal Design ARC Mini R2 microATX Black Case No PSU

Fractal Design ARC Mini R2 micro-ATX Compact Performance Case with USB 3.0 w/o PSU

Fractal Design
Scan code: LN54112 Manufacturer code: FD-CA-ARC-MINI-R2-BL Request call
£77.99Item currently awaiting an ETA
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review 3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The Arc Mini R2 micro ATX case combines excellent cooling potential and build configurability in a compact, minimalistic and elegant chassis design.

For a case of this size, it offers unmatched possibilities for water cooling components. And with room for up to six 3.5” drives plus an additional two 2.5” drives hidden behind the motherboard plate, you can build a well-cooled PC with ample storage space.

The Arc Mini R2 is built to last and is filled with smart features such as dust filters, fan controller, space for tidy cable routing, three case fans included and a window side panel. Features • A compact micro ATX case designed for exceptional airflow and cooling
• Superior water cooling support for its size, accommodating multiple thick 240mm radiators or even a 360mm radiator for an uncompromised cool system build
• Three Silent Series R2 fans included, giving you excellent cooling straight out of the box! 4 additional fan positions are available

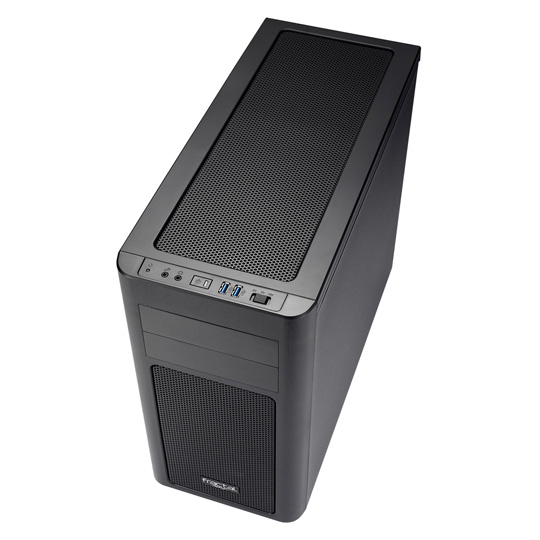

• Featuring an integrated three-speed fan controller and USB 3.0 on the front panel for easy access
• Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
• Great storage capacity for a mini chassis, with up to six 3.5” drives and two additional 2.5” drives
• Innovative SSD position mounting, using brackets to allow for easy access once your system is completely built
• Featuring a large stylish window side panel to show off your set up in style
• Designed with ample space for easy, tidy cable routing and an overall a neat build
Specifications
Case Edition ARC Mini R2
Case Form Factor Mini Tower
Motherboard Form Factor
  • MicroATX
  • Mini-ITX
Material
Front/ Side/ Top Panel
  • 1 x HDD Activity LED
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power LED
  • 1 x Power On/Off button
  • 1 x System Reset button
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 4
Fan Bays
  • 2 x 120/140mm
  • 5 x 120mm
Fans Included
  • 2 x 120mm
  • 1 x 140mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 165 mm
Max VGA Card Length 400 mm
Colour Black
Dimensions 210 x 405 x 484 (WxHxD mm)
Weight 9 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Customers also bought
Reviews
Fractal Design ARC Mini R2 micro-ATX Compact Performance Case with USB 3.0 w/o PSU is rated 4.9 out of 5 by 8.
Rated 5 out of 5 by from I unreservedly recomend this case. I don't normally bother writing reviews but this product deserves a mention. I bought mine for a new build and I am so happy I chose this case over the others available and given another free choice would buy it again.. The overall design and build quality is exceptional and there is a lot of attention to detail throughout. I'm certainly impressed by the vast array of options it has to offer particularly when it comes to cooling and media storage. To be honest I can't really fault it for the money but if I were to be ultra picky I'd say that the power button could be a little more substantial. Don't get me wrong its perfectly adequate but a heavy handed user could destroy it I feel. The dust filers are easy to get off, the fan mounting options are as much as any case could ever offer, the paint quality is excellent as is the colour scheme if you like black and white (and I do it looks classy) the list of features is as long as your arm with this case and easily researched on their website or you tube. And I can vouch for the advertising blurb on the website it does and is as good as they say it is. Definitely worth paying a bit extra for.
Date published: 2016-09-29
Rated 5 out of 5 by from Oozes Quality Don't be fooled by the "micro ATX" size. Easily fit a Maximum VIII Gene and a 165mm high cooler, with space for 2 front fans, rear fan, base fan and top fan. Just enough clearance for an Asus twin frozr G4 GTX970 without taking the middle cage out. Good clearance at the back of the mobo tray for cable routing although you do need to be careful to lay your cables out neatly to avoid squashing them too much. Great case to build in. Would have been nice if the 3 fans provided were PCM, rather than DC controlled, as you have better low speed control, but that's my only gripe. All in all a well built case that runs cool and quiet.
Date published: 2016-08-09
Rated 5 out of 5 by from Good design lots of space I really like this case. I like that you can pretty much take everything out of it so you can maximise airflow ect. The side window is smoked I like that when u look into it you only see things that illuminate ect. Nothing really bad I can say. I'd buy it again.
Date published: 2014-09-19
Rated 5 out of 5 by from Great to work with and excellent build quality I was seriously impressed by what this case offers. It is easily the best case I've owned in terms how easy it is to work with, the cable management on offer and the build quality. It looks good too; not overly boring yet nowhere near as ugly as some performance/gaming orientated cases. The only thing I'm unsure about is the tinted side window. Ideally I would've liked to have it without a side window altogether and a side window tinted as much as the one on this case doesn't seem to make sense.
Date published: 2014-07-01
Rated 5 out of 5 by from Great M-atx case Very good case from Fractal again, supplied with good quite fans for the price, and includes 2 x 120 & 1 x 140. Good clearance for cables in the back, with a good CPU cut out for other coolers to fit well. I personally used the 2 ssd positions on the back of the M/board plate for ease of installations as they will never be needed to be touched with configuration changes or upgrades. Only wished that they could of had a fan position in the side window to cool GFX card and M/B. Great buy for the price, and will serve many an upgrade option.
Date published: 2014-05-26
Rated 5 out of 5 by from Great customisability I ripped out the drive bays and now it seems pretty empty but it has improved airflow and made space for some mods I plan on doing I also love the amount of radiator support. I will mention it came with no film over the window which I would of liked to keep it scratch free for a while I make space.
Date published: 2014-03-03
Rated 5 out of 5 by from An outstanding case! This case is brilliant! For a micro-ATX gaming PC build, this case ticks all the boxes and at an excellent price. The case is made from strong, sturdy material. The side panels have little flex in them even with the window side panel. Screws and fittings have weight and feel robust. The plastic bezel is sturdy and easy to remove as well as having an attractive brushed aluminium look. The tinted window is very attractive, making the inside of your finished build subtle but still viewable. The dust filters are a great addition. The front bezel filter is easy to remove and clean as well as the top filter which only needs the removal of two thumb screws. The bottom filter is easy to get to unlike other cases. The feet are high enough for it to be removed without lifting the case. The inside is, again, very well designed. The HDD cage is modular, allowing me to remove the top cage (which was unnecessary to me at the time) allowing more airflow from my front fans to my graphics card. The motherboard tray is good and i`ve had no problem with fitting my motherboard into the case. The cable management area behind the tray has adequate space for all my cables and the holes are fitted with rubber grommets. The dedicated SSD mounts behind the motherboard tray is very clever but again I didn`t need them. The top HDD cage can be put in a different orientation to allow greater airflow if you are needing the top cage. The power supply mount is fitted with padding which will stop it from rattling. The large case feet allows the power supply to breathe and can expel the heat much more effectively unlike some cases with lower feet. Overall this is an outstanding case; a must-buy for people building micro-ATX systems. For its size it offers excellent airflow to all those hot components. The price tag is staggering considering all the features that would normally be seen in more expensive cases. A huge thumbs up to Fractal Design!
Date published: 2014-02-05
Rated 4 out of 5 by from Very good case for the price Everything is great except for the fact that the motherboard tray is slightly off so your sockets won't line up 100% with the backing plate that comes with your motherboard. It still works fine. Btw, had 2 cases, same problem.
Date published: 2014-01-27
  • y_2017, m_6, d_19, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_GB, sid_54112, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does it have a windowed side panel?

Asked by: Mikey3198
Yes. The window is "smoked" effect perspex, so you won't see much when powered off, but will see all the pretty LEDs and other bits of lighting when on, if that's your thing.
Answered by: Thepom
Date published: 2016-10-15

Corsair H110i GT

Hi could you tell me if a CW-9060019-WW - Corsair Hydro Series H110i GT High Performance CPU Cooler with 280mm Radiator for Intel/AMD CPU's would fit in this case. Thanks
Asked by: jcypser
If you remove the optical drive cage, yes.. if not you can fit radiators up to 240mm in the top
Answered by: TommyFamzy
Date published: 2016-02-21
