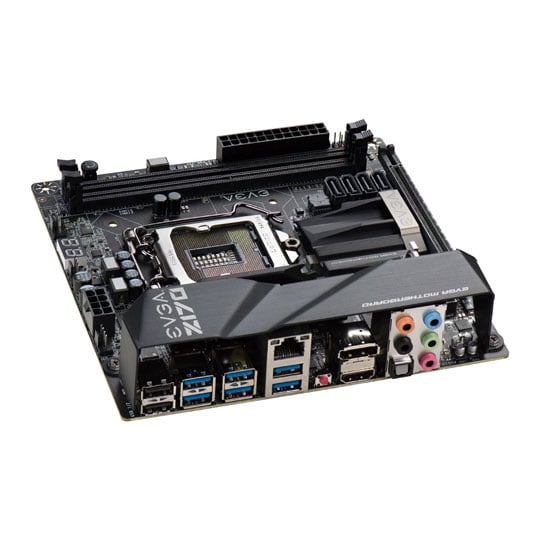

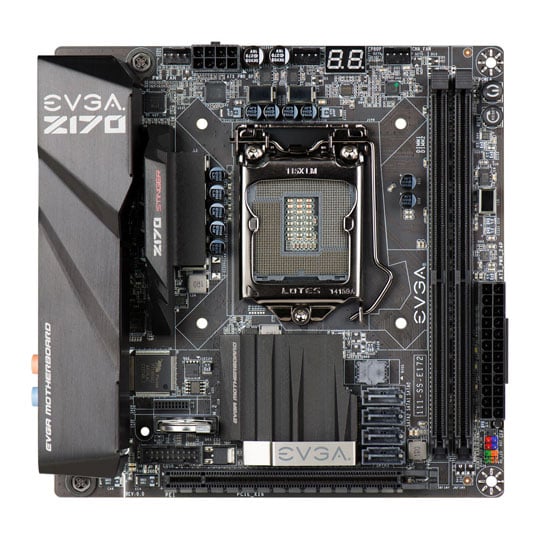

EVGA Z170 Stinger Intel Skylake Mini ITX Motherboard

EVGA Z170 Stinger, Intel Z170, S 1151, DDR4, SATA3 6Gbps, M.2 (Key E), Intel LAN, USB 3.0, Mini ITX

Scan code: LN66487 Manufacturer code: 111-SS-E172-KR Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £15.53 / month (APR 14.9%)
Monthly Payment: £30.02
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £172.99
Total inc. interest: £180.11
Monthly Payment: £15.53
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £172.99
Total inc. interest: £186.36
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
3xs Approved High End
Delivery options £5.48 By DPD On 24th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The EVGA Z170 Stinger motherboard is engineered to exceed the best. Featuring a next generation Intel Z170 Express Chipset with DDR4 3200MHz+ memory support, this motherboard is built to perform. Four native SATA 6G ports, eight native USB 3.0 provide robust storage and I/O options, and the mITX form factor allows for an extremely compact performance system.

Z170 Platform
Intel® Z170 Platform Unlocks Incredible Efficiency

Intel® Z170 Chipset
• Supports up to 8 CPU threads (4-core)
• Supports DDR4 Memory
• First to support PCI-E 3.0 from PCH

Performance Leadership
• Up to 11% Faster CPU (SPECint_rate_base2006)
• 22% Lower TDP (65W vs 84W)
• Up to 28% Faster Intel HD Graphics (3DMark 11 Graphics Score)

10 Layer PCB
High layer count enhances stability both for heavy loads as well as high overclocking.

High Gold Content for CPU Socket
Higher volume of precious metal (Gold) used in the sockets greatly improves the conductivity and produces a cleaner signal due to less resistance/impedance.

Onboard Power, Reset and CMOS Reset Buttons
When testing on the Z170, or running it in a benching environment, you do not need to worry about wiring the board to a case to have access to power and reset buttons, as they are built onto the board.

4 Phase PWM
A 4 Phase PWM helps to ensure that the power reaching the processor is clean and stable. Features • USB 3.0 Support
• SATA 6Gbps Support
• 8 Channel High Definition Audio
• 100% Solid State Capacitors
• EVGA Vdroop Control
• EVGA E-LEET Tuning Support
• 4 Phase PWM
• 10 Layer PCB
• Onboard Clear CMOS, Power and Reset Buttons
• Onboard CPU Temperature Monitor
• Isolated Audio traces for better sound clarity
• Onboard POST Code Indicator/CPU Temp Monitor
• Black Nickel CPU ILM
• PCI Express 3.0 Support
• 150% Increased Socket Gold Content
• Replaceable BIOS Chip
• Supports Intel Core i3, i5, and i7 Socket 1151 Processors
• 2x DIMM Slots for Dual-Channel DDR4 3200MHz+ (up to 32GB)
Core Specifications
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel Z170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 3200+(OC)
Max. Memory Capacity 32GB (2x16GB)
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 2-Digit debug code LED
  • 1 x 24-pin (Power)
  • 3 x 4-pin Fan
  • 1 x 8-pin (Power)
  • 3 x Fan Header (V)
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Power button
  • 1 x Reset Button
  • 4 x SATA III - 6Gb/s
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x BIOS/CMOS Reset button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 6 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
EVGA Z170 Stinger, Intel Z170, S 1151, DDR4, SATA3 6Gbps, M.2 (Key E), Intel LAN, USB 3.0, Mini ITX is rated 4.7 out of 5 by 3.
Rated 4 out of 5 by from Really good, but... This board is really cool for a mini itx evga build. (with an evga cooler and gpu) However, the IO cover (the part that says evga) needs to be taken off in order for a gpu with a backplate to fit comfortably there. How did evga overlook such a thing? Especially when i was using an evga 1080 with a backplate, you would expect their own products to work fine together. I got it to fit by cutting off a tiny part from the cover, certainly not ideal but it did the job. The bios is excellent and the led screen is very handy. This is a good motherboard but for the price everything should be perfect.
Date published: 2017-04-07
Rated 5 out of 5 by from full of features has all the features of their larger boards except smaller. the power buttons and led readout on the motherboard is incredibly useful. it looks great also.
Date published: 2016-04-16
Rated 5 out of 5 by from Amazing Best Mini ITX board I've ever owned. The only thing hurting it is no Core 3D. Other then that this board is great in every way possible
Date published: 2015-09-10
