Scan code: LN82238 Manufacturer code: 142-SX-E297-KR

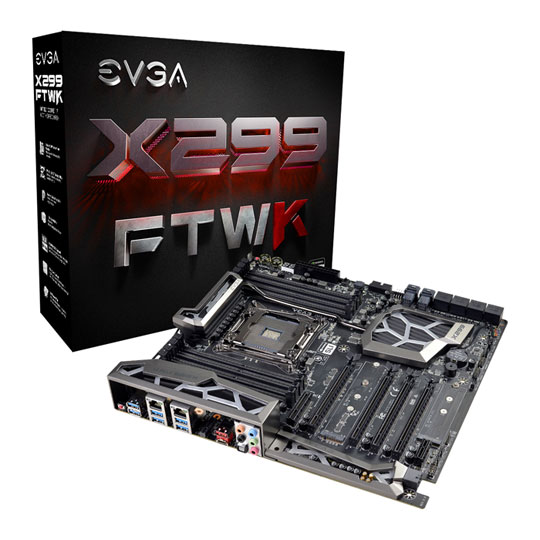

EVGA Intel X299 FTW K Extreme E-ATX Motherboard

EVGA FTW K X299, Intel X299, S 2066, DDR4, SATA III, Dual M.2/U.2, 3-Way SLI, Intel/Killer GbE, USB 3.1 Type-A/C, E-ATX

Thumbnail 1 : EVGA Intel X299 FTW K Extreme E-ATX Motherboard Thumbnail 2 : EVGA Intel X299 FTW K Extreme E-ATX Motherboard Thumbnail 3 : EVGA Intel X299 FTW K Extreme E-ATX Motherboard Thumbnail 4 : EVGA Intel X299 FTW K Extreme E-ATX Motherboard
Scan code: LN82238 Manufacturer code: 142-SX-E297-KR
£337.99
From £14.09 / month (APR 0%)
Monthly Payment: £56.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £337.99
Total inc. interest: £337.99
Monthly Payment: £28.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £337.99
Total inc. interest: £337.99
Monthly Payment: £18.78
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £337.99
Total inc. interest: £337.99
Monthly Payment: £14.09
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £337.99
Total inc. interest: £337.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.44 / month (APR 15.9%)
Delivery Options
  • By DPD On 24th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Built to Perfection
Introducing the EVGA X299 motherboard line-up - built for the Next Generation Intel® X299 platform. The EVGA X299 motherboard line-up combines incredible features, overclocking and the latest SSD standards, including M.2, U.2 and Intel® Optane™ support. EVGA's GUI BIOS focuses on functionality and overclocking support to give you power and ease of use. With these features and more, it is easy to see how the EVGA X299 Motherboards are built to perfection.

EVGA X299 FTW K
The EVGA X299 FTW K is built to win. The included Killer NIC prioritizes and reduces latency to keep you at the top of your game from the first match to the last. If that wasn't enough, a newly-designed VRM provides the cleanest and most stable power to the CPU possible. A total of 8 DIMM slots support up to 128GB of DDR4 memory, and a 4 layer memory T-routing design allows for extreme memory speeds of 4133MHz+. An RGB I/O Cover, along with RGB Chipset heatsink, lets you customize the look to match your rig.

Intel X299 Chipset
• Supports up to 36 CPU threads (18-Core/18 Hyperthreads).
• Supports DDR4 up to 3600MHz+ Skylake-X and 4133MHz+ Kaby Lake-X.
• First Intel-Extreme series with Gen3 PCIe from PCH.

Intel Optane Memory Ready
Be fully prepared when Intel unleashes its latest storage solutions using its ground-breaking 3D XPoint architecture.

Built in U.2
Next generation storage interface supports up to 32Gb/s of bandwidth.

Killer NIC
Built in Killer Ethernet helps to prioritize and reduce network latency to keep you at the top of your game.

USB 3.1 (Type-A/Type-C)
Connect the latest peripherals and devices at speeds of up to 10Gb/s, with user-friendly Type-C connectors.

High Gold Content for CPU Socket
Higher volume of precious metal (150% Gold) used in the socket greatly improves the conductivity and produces a cleaner signal due to less resistance/impedance.

On-board Power, Reset and CMOS Buttons
The power, reset and CMOS reset buttons are built into the X299 FTW K, so you don’t need to worry about wiring the board to a case when testing or benching in an open air environment. (Reset button is located on the rear I/O panel). Features • Intel Extreme CPU 2066 Socket.
• E-ATX Form Factor.
• Up to 3-Way SLI.
• RGB LED I/O and Heatsink.
• High Definition 7.1 Channel Audio + Optical.
• High efficiency 14 phase digital VRM.
• On-board power, reset and clear CMOS buttons.
• EVGA E-LEET X tuning utility.
• Dual BIOS support.
• M.2 NVMe PCI-E SSD support.
• U.2 NVMe SSD support.
• Intel Optane Memory Ready.
• Switchable DC/PWM fan control.
• On-board CPU temperature monitor.
Specifications
Core Specifications
Edition FTW K
Form Factor E-ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4) [6+ Core] / Dual (2) [4 Core]
Memory Type (ECC)
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 128GB (8x16GB) [6+ Core] / 64GB (4x16GB) [4 Core]
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x PCIe 3.0 x1
  • 4 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 8 x SATA III - 6Gb/s
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I219 (Gigabit LAN)
  • 1 x Killer E2500 (Gigabit LAN)
Rear I/O Connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 276.7 x 304.8 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298
