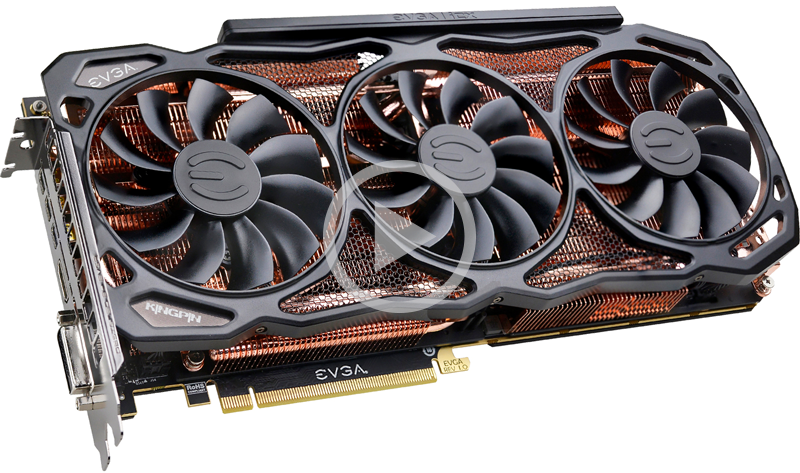

EVGA NVIDIA GeForce GTX 1080 Ti 11GB KINGPIN Graphics Card
EVGA GeForce GTX 1080 Ti K|NGP|N (KINGPIN) GAMING 11GB GDDR5X VR Ready Graphics Card, 3584 Core, 1582MHz, 1695MHz Boost
EVGA GTX 1080Ti KINGPIN Edition
KINGPIN Edition GTX 1080 Ti from EVGA
The KINGPIN GTX 1080 Ti is building on an already powerful graphics platform and taking it to another level. This card can be overclocked past a guaranteed 2025 MHz+ using the XOC software, this combined with the innovative iCX cooling technology allows the GTX 1080 Ti to reach new heights. The all-copper heatsink delivers superior cooling performance, while maintaining a high-level of compatibility by sticking within a standard dual-slot form factor. A single slot adapter is also included which allows users who choose to pair this card with the EVGA Hydro Copper waterblock (sold separately) for even more expansion card flexibility when water cooling for the ultimate in performance. Also included with the card is a KINGPIN t-shirt, and the chance to meet legendary overclocker Vince "K|NGP|N" Lucido himself.
Golden KINGPIN Event
Available until 29th September 2017
Calling all EVGA GeForce GTX 1080 Ti K|NGP|N owners! EVGA is giving six lucky winners the exclusive opportunity to meet K|NGP|N himself. The winners will fly to Taiwan to meet and overclock with the king guru himself, Vince "K|NGP|N" Lucido. EVGA will fly you to Taiwan, put you up in a hotel, and provide meals for the duration of the trip. The trip will feature a two day extreme overclocking workshop with K|NGP|N...and a special prize! Click here for more details.
Graphics Card Performance World Records

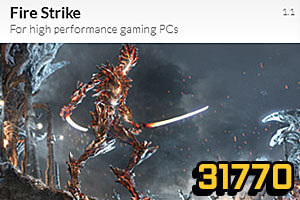

3DMark Fire Strike
World Record - 31,770

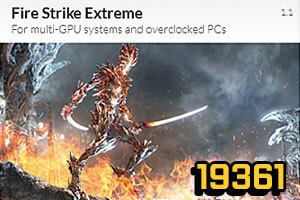

Fire Strike EXTREME
World Record - 19,361

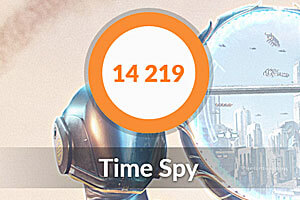

3DMark Time Spy
World Record - 14,219

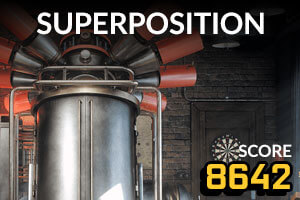

World Record - 8,642
Overclocked KINGPIN Edition Graphics Cards
If you're not familiar with the name, KINGPIN is an extreme overclocker that has multiple 3D performance World Records; many of which are with this very card. The slogan for the KINGPIN overclocking brand is 'Built to be the world's best without compromise' which is what this graphics card is all about.
EVGA iCX Cooling Technology
iCX is more than just a Cooler

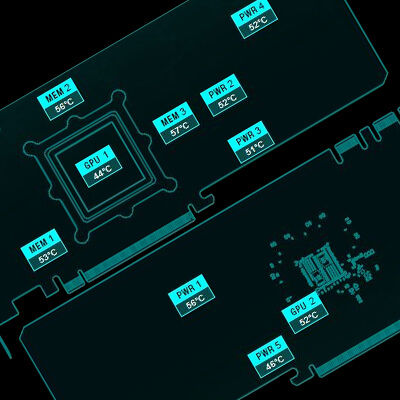

No card is worthy enough to take the throne without EVGA's iCX Technology, and the GTX 1080 Ti KINGPIN reigns supreme. Featuring a total of 11 global patents (pending and granted), iCX from EVGA is efficiency perfected. With 9 additional sensors embedded on the PCB, a newly designed die-cast baseplate and backplate, purposefully-directed airflow chambers, and full control using EVGA Precision XOC, EVGA's iCX is the very definition of Interactive Cooling. Another feature on the KIGPIN card is that has RGB lighting to enhance the look of the card in your system.
Distinctive KINGPIN Appearance
Designed for Power
The 1080 Ti KINGPIN is designed for power, cable management, and control, featuring right-angle PCI-e connectors and an EVBOT connector. EVGA's KINGPIN products are known for their distinctive appearances, and the GTX 1080 Ti KINGPIN is no exception featuring its unmistakable mark of quality and performance.

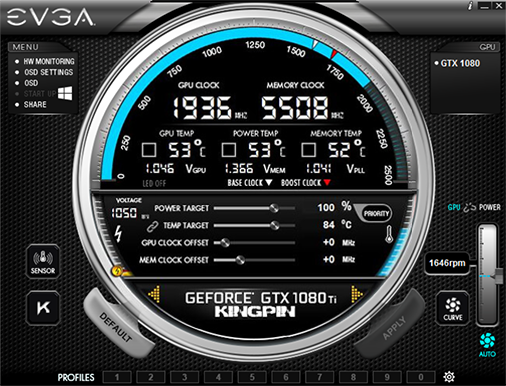

Precision XOC Enthusiast
Full GPU Control for the Enthusiast in You

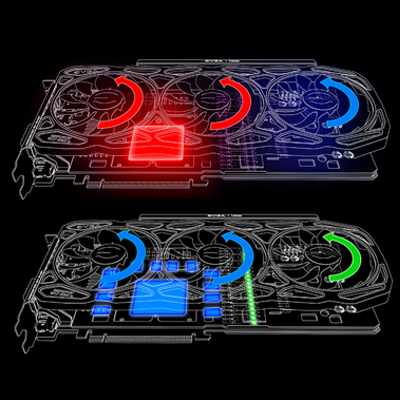

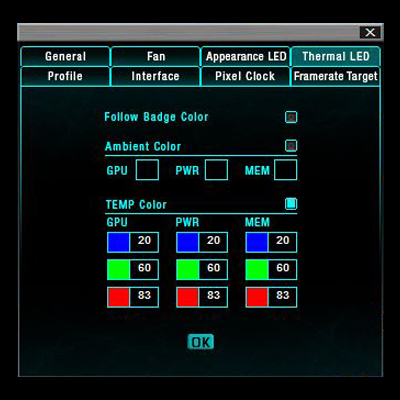

Each of the iCX's thermal sensors can be monitored in real time and displayed through Precision XOC OSD. This genius technology will grant you the power to take control over the VGA/Power fans simultaneously or asynchronously.
Connections on the KINGPIN 1080 Ti
3x Mini-DisplayPort / HDMI 2.0b / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1080 Ti|
|Manufacturing process||16 nm|
|NVIDIA Tensor Cores|
|Core Clock||1582 MHz|
|Boost Clock||1695 MHz|
|Memory Clock||11016 MHz|
|Memory Bus||352 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||iCX Cooler & Technology with RGB LED|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Minimum Recommended PSU||600 W|
|Maximum GPU Temperature||91 °C|
|Dimensions||142.69 x 299.72 mm|
