Electrovoice - EVOLVE30M - Portable Column System
Electrovoice - EVOLVE30M, 1000W Portable Column System, Bluetooth Connectivity, QuickSmartDSP, Collapsible Design
Portable Powered Column System
Electrovoice - EVOLVE 30M
Superior Electro-Voice sound qualityThe Electrovoice EVOLVE 30M was created to deliver a drastic step up in all-around performance for a column system in its size/price category. It features an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions using the next-generation Electro-Voice QuickSmart Mobile application.

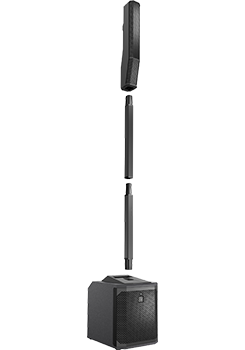

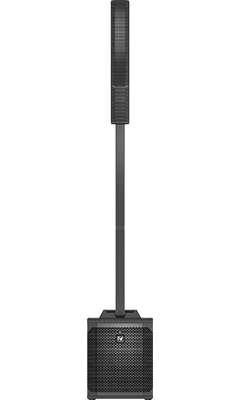

It includes a speaker array, a two-piece pole connector, an array and pole backpack carry case, and a powered subwoofer, all designed to pack up and assemble quickly, look great on stage, whilst withstanding real-world wear and tear. All this makes it a great choice for solo musicians/performers and smaller musical groups and venues, or any application that requires an easy-to-use, highly portable and lightweight system with vast connectivity, control, coverage and output relative to its size.
For events like weddings, the mixer allows the same system to support the various mics and inputs required for participants, musicians, and background music during the day, all with enough power to fill the danceroom for a DJ set or live performance in the evening.
123 dBMax SPL
51Hz - 20kHzFrequency Response
1000WTotal Power
at a glance
• 6 column-arrayed HF drivers and 10" LF driver deliver huge power
• Bluetooth connectivity comes built-in so you can stream music between performance or for backing tracks
• QuickSmart mobile app provides powerful DSP and a variety of professional effects
• Composite waveguides provide spacious coverage for the entire venue
• Collapsible design allows for compact storage and easy transport
Refined Industrial Design

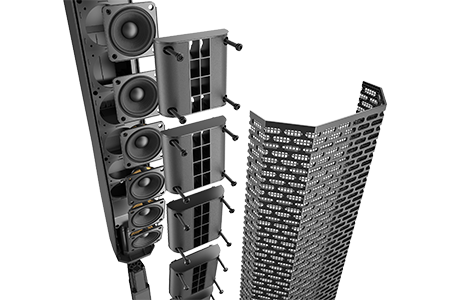

professional-grade componentsThe full-range column array and its six lightweight 2.8” neodymium drivers deliver ultra-wide 120° coverage usinf proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members.
The array enclosure is made from a durable composite material and incorporates an ergonomic aluminum handle. It is acoustically optimized using four out of sight tuning ports on the rear of the enclosure.
A 10” subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for superor rigidity and acoustical performance. The array and sub are connected by a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching. An advanced Class-D amplifier delivers up to 1000 W of power: 500 W to the subwoofer and 500 W to the column array. The speakers are protected by a black powder-coated 18-gauge steel grille. Together, these components generate a genuinely impressive performance-to-size ratio in an elegant form factor that looks and sounds great.
Industry-leading QuickSmart DSP
optimize every detailQuickSmart DSP enables navigation of system parameters via an LCD with single-knob control, along with multiple options for signal routing and inputs.
Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.
The above audio functions can all be controlled using the QuickSmart Mobile app, adjust your system’s sound accurately from across the room, from the audience point of view. The fully configurable app has a simple, easy-to-read user interface and utilizes Bluetooth Low Energy (BTLE) technology for the adjustment and monitoring of all parameters of up to six EVOLVE 30M systems simultaneously. EVOLVE 30M offers simple or sophisticated operation according to application, making great sound easy for users of ever level.
Powerful Onboard Mixer

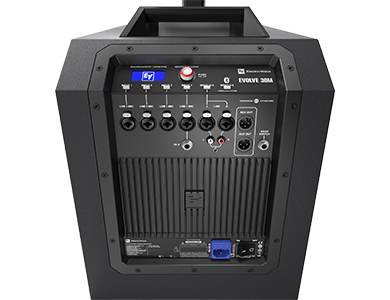

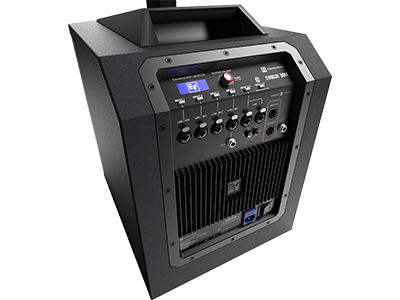

mix your show like a proDeveloped in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord, the integrated fully featured, fully configurable digital mixer has several inputs (4x XLR/TRS combo mic/line inputs, 1x XLR/TRS combo stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input) with professional-grade preamps and mix functions. The mixer can be controlled via the QuickSmart Mobile app or via the single-knob/LCD interface.
Musician-Friendly Features
reduced setup timeIndependent channel aux sends and Hi-Z and foot switch inputs are available for flexible system configuration, and a variety of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for additional shaping.
Together with the built-in mixer, these help to reduce setup time and on-stage clutter by reducing the need for external effects pedals and processors. The onboard effects can be controlled using the QuickSmart Mobile app or via the single-knob/LCD interface. High-resolution, low-latency Bluetooth streaming ensures excellent results for music playback or accompaniment.
Introducing The EVOLVE 30M Compact Column Loudspeaker System
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Bi-amped |
| Channels | 8-channel mixer |
| LF Driver Size | 10" woofer |
| HF Driver Size | 6 x 2.8" |
| LF Driver Power Amp | 500W |
| HF Driver Power Amp | 500W |
| Total Power | 1000W |
| Inputs | 4 x XLR-1/4" combo, 2 x XLR-1/4" combo (stereo), 1 x 1/4" TRS (Hi-Z), Dual RCA Stereo, 1 x 1/8" (aux) |
| Outputs | 2 x XLR (mix/aux) |
| Other I/O | 1 x 1/4" (footswitch) |
| Wireless | Bluetooth |
| Frequency Range | 45Hz to 20KHz (-10 dB) |
| Frequency Response | 51Hz-20kHz |
| Crossover Frequency | 200 Hz |
| Maximum Peak SPL | 123 dB SPL @ 1m |
| Horizontal Coverage Angle | 120° |
| Vertical Coverage Angle | 40° |
| Signal Processing | DSP Presets, 7-band Graphic EQ |
| Enclosure Material | 15mm Plywood, Composite column, Aluminum pole |
| Mounting Options | Floor |
| Power Source | Standard IEC AC power cable |
| Dimensions | Width: 13" (sub), 3.7" (column) Height: 17.6" (sub), 24.4" (column) Depth: 17" (sub), 6.2" (column) |
| Weight | 44 lbs. |
