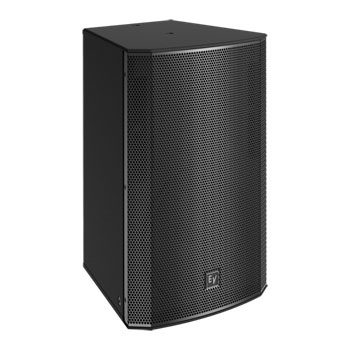

Electrovoice - EVC-1122-95 12" 2-Way Loudspeaker - Black

Electrovoice EVC-1122-95B 12" 2-Way Loudspeaker, 300W Continuous, 1200W Peak, 90° x 55° Constant Directivity

Scan code: LN130441 Manufacturer code: F.01U.329.285
Call for price
FREE DELIVERY ON YOUR ENTIRE BASKET
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

12" 2-Way Loudspeaker
Electrovoice - EVC-1122-95

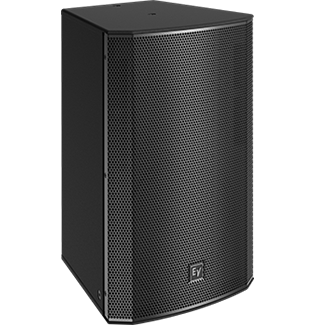

Electrovoice EVC-1122-95

12" speaker with 90x55 coverageElectro-Voice EVC loudspeakers are two-way systems that can be used in a wide variety of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are needed in a compact and cost-effective package. EVC loudspeakers are designed to complement other EV-Innovation models such as the EVF, EVH, EVA, and EVU.

The high frequency elements of EVC loudspeakers are made using a single 1/4-inch pure titanium dome compression driver directly paired to a rotatable constant directivity waveguide that provides uniform pattern control and smooth, linear response. The low frequency section uses a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover uses a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and enhanced definition through the critical vocal range.

The EVC series is an incredibly cost-effective solution for multiple fixed-install applications. The enclosures are made using 15mm plywood and finished with EVCoat for improved durability. The loudspeakers have been crafted with multiple M10 suspension points along with attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers take wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel uses EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier no matter how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

126 dBMax SPL

70Hz - 22kHzFrequency Response

Impedance

at a glance • 12-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
• Power rating: 300 W Continuous, (1200 Peak)
• Passive system: 95 dB, 126 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

Loud&Clear - see it all in 50sec!

The Tech Spec

Features Specification
Max Calculated SPL 126dB
Rotatable coverage 90° x 55°
Frequency Range (-10 dB) 50Hz-25kHz
Suspension eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
Minimum Impedance
HF Transducer DH-3
Frequency Response (-3 dB) 70Hz-22kHz
LF Transducer EVS-12M
Grille 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Weight Net 44.75lbs (20.3kg)
Shipping Weight 50.04lbs (22.7kg)
Enclosure 15mm weather-resistant plywood with EV Coat
Colour Black
Dimensions (H x W x D) 616 x 395 x 401mm
Passive crossover frequency 1.6kHz
Rec. high-pass frequency, 4th Order 45 Hz for 8Ω (50 Hz with TK-150 transformer)
Environmental Specs IEC 60529, IP44 (IP55 for PI versions)
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
Power Handling (Continuous / Peak) 300/600/1200W
Connectors Dual four-pin 10 AWG (6 mm) Phoenix/ Euro Block screw-terminals
