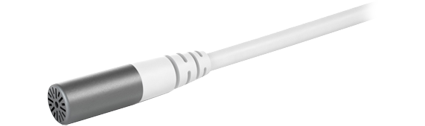

DPA Microphones - '6060 Subminature Microphone' (White)
CORE Omni Submini Normal SPL Microdot Mic
A Submini Unlike Any OtherThe DPA 6060 CORE Subminiature Microphones are only 3 mm in size but deliver the audio quality of the larger, award-winning DPA mics. Small in size but big in clarity, consistency and durability, which are all vital features. By sizing down CORE by DPA technology, it proves you don't have to sacrifice sound quality to focus on aesthetics.
102 dBDynamic Range
20 Hz - 20 kHzFrequency Response
144 dBMax. SPL
Amazing Features
• Modular adapter system fits most professional wireless systems
• Renowned DPA sound in a 60% smaller package
• Amazing 3 mm CORE capsule technology
• Stainless steel, PVD-coated mic housing

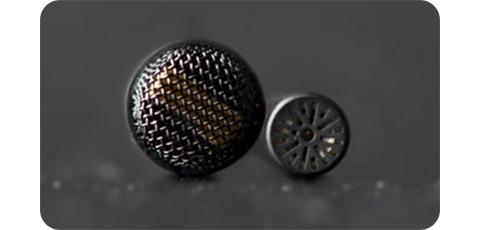

Shrinking CORE To 3 mm
Lower Noise FloorDPA have taken the outstanding CORE technology and shrunk it down to fit into the(0.12 in) subminiature mics. Despite their small size, the performance of the 6060 CORE Subminiature Series is completely comparable to the 5 mm (0.20 in) miniature capsules that are acclaimed world-wide.
The subminiatures have a lower noise floor than any other 3 mm (0.12 in) capsule out there and are able to capture high sound pressure levels without any distortion too.
Advanced New Mic Design
Extremely DurableThe tiny capsule has a cap that can be removed for cleaning and can be firmly reattached to the mic body with a solid click that can both be felt and heard. The supplied cap works in its nature to the low-boost grid of the 5 mm (0.20 in) versions.
Both the mic itself plus the cap are made of stainless steel and finished with a Physical vapor deposition (PVD) coating making it incredibly durable and able to tolerate high temperatures, resilient against impacts and resistant to abrasion.
The cable is often the weak spot on these types of mics, but DPA have chosen to use the same size cable (Ø 1.6 mm (.06 in)) and the same rugged cable relief as on the 5 mm (0.20 in) mics.

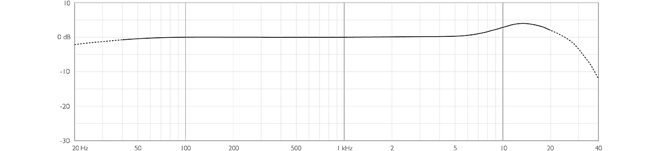

6060 Frequency Response

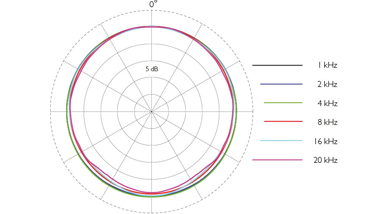

Polar Pattern
The Tech Spec
| Features | Specification | Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz | Effective frequency range ±2 dB | 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A)) |
| Distortion, THD < 1% | 123 dB SPL RMS, 126 dB SPL peak |
| Dynamic range | Typ. 102 dB | Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR adapter |
| Power supply (for full performance) | or wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom power). Will work from 12 V | Connector | MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack |
| Weight | 8 g (0.29 oz) incl. Cable and MicroDot connector |
| Microphone head size (h x w x d) | 3.4 / 14.4 mm (0.13 / 0.57 in) |
| Capsule diameter | 3 mm (0.12 in) |
| Cable length | 1.8 m (5.9 ft) | Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
