DJI SDR Transmission 2

1 TX to 8 RX With ControlA single transmitter feeds up to eight receivers, each with remote control. Directors and DPs get a high-resolution feed, while operators and focus pullers can adjust settings and control the camera remotely.

Multi-Group TransmissionA single transmitter feeds up to eight receivers, each with remote control. Directors and DPs get a high-resolution feed, while operators and focus pullers can adjust settings and control the camera remotely.

DCI 4K MonitoringSDR Transmission 2 transmits DCI 4K/60fps, 10-bit HDR, and H.265 video at bitrates up to 50 Mbps. The result is rich detail, smooth color transitions, and clear highlights and shadows, with consistent image quality across multiple cameras.

Up to 4 km RangeVideo transmission reaches up to 4 km. From open stadiums to dense mountain forests, and through demanding car-to-car shots or FPV drone work, it sustains a reliable link where you need it most.

Latency as Low as 35 msEven with higher image quality, latency stays as low as 35 ms. That keeps monitoring and remote commands, like focus pulls and gimbal moves, responsive.

TX/RX SwitchableSwitch between transmitter and receiver on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for.

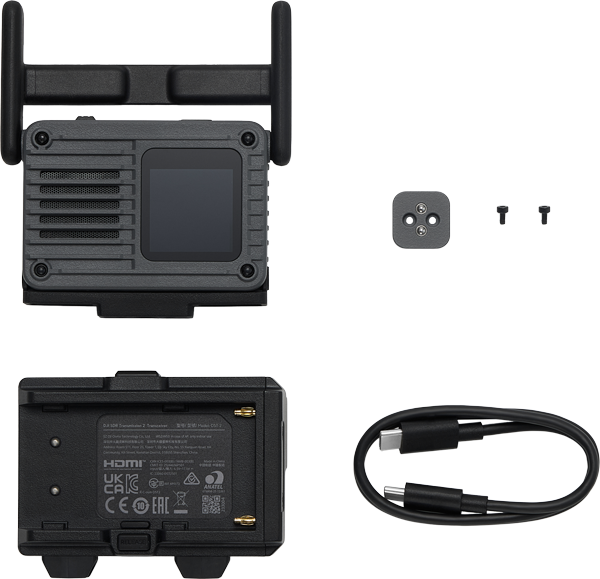

Approx. 136g UnitThe unit provides one HDMI and two USB-C ports. Its lightweight body reduces the load on handheld gimbals and mounts easily across a wide range of camera setups.

Expansion PlateProvides one SDI, one HDMI, and four USB-C ports. It also supports metadata transmission via SDI from mainstream cinema cameras like ARRI and RED.

Transceiver CageFor car mounts and other outdoor setups, the cage adds protection with plenty of mounting points. It locks the unit firmly onto a wide range of gimbals and rigs.

Camera SwitchingNo more rebooting, scanning, and re-pairing. Switch between camera feeds from the transceiver or the DJI Ronin app, saving valuable time on set.

Monitor FeedDelivers an ultra-high-definition, low-latency feed to professional monitors over SDI, HDMI, or DP, so multiple monitors can share the same clean image.

Mobile FeedFor monitoring on the move, connect a phone or tablet to the receiver over USB-C and view the feed in the DJI Ronin app. A wired link keeps it stable and high-bitrate.

PTP/CEC Camera ControlDJI SDR Transmission 2 supports PTP camera control, allowing users to view and adjust aperture, shutter speed, and ISO settings, while also enabling photo capture and video recording through the app. Additionally, it supports CEC control for Sony cameras, activating Mirror Control mode.

Control for the RS Series StabilisersThe transceiver can wirelessly control RS Series stabilizers via the DJI Ronin app, supporting Force Mobile, virtual joystick, and gimbal recentering features.
