DJI SDR Transmission 2 Combo
DJI SDR Transmission 2 Combo, Video Transmitter/Receiver, DCI 4K/60fps 10-bit HDR, Up to 4km Range
Email me when the availability or price changes
Finance this product
- From £19.58 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £13.96 / month (APR 15.9%)
DJI SDR Transmission 2 Combo
Go Small, Connect AllDJI SDR Transmission 2 advances SDR technology with stronger interference resistance, better image quality, and greater range. Even on crowded sets, it maintains a high-bitrate, low-latency feed. Multi-Group Transmission and Auto Channel 2.0 offer a seamless, stable feed, while a pairing-free connection offers fast camera switching with DCI 4K/60fps 10-bit HDR wireless transmission. A TX/RX switchable transceiver design and Ronin series compatibility bring pro-grade performance to a compact, lightweight form factor.

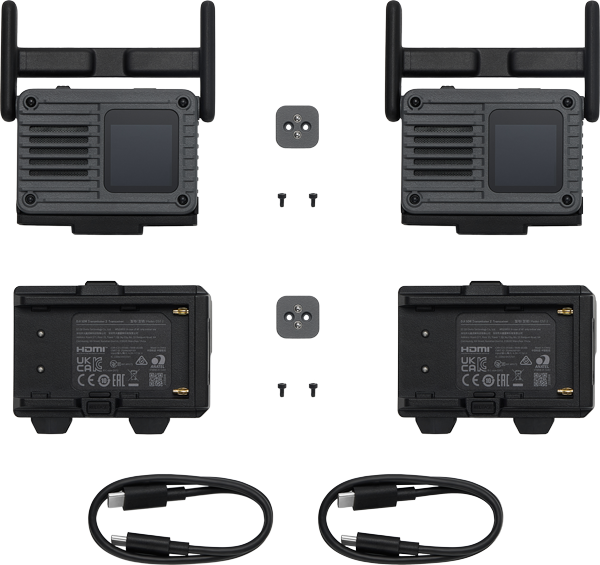

In the Box• 2x DJI SDR Transmission 2 TransceiverL
• 2x DJI SDR Transmission 2 Camera Cold Shoe Adapter
• 2x DJI SDR Transmission 2 NP-F Battery Adapter
• 2x Firmware Update Cable (USB-C to USB-C, 50 cm)
Multi-Group Transmission
1 TX to 8 RX With ControlA single transmitter feeds up to eight receivers, each with remote control. Directors and DPs get a high-resolution feed, while operators and focus pullers can adjust settings and control the camera remotely.
Multi-Group TransmissionA single transmitter feeds up to eight receivers, each with remote control. Directors and DPs get a high-resolution feed, while operators and focus pullers can adjust settings and control the camera remotely.
Auto Channel 2.0
Channel ManagementAuto Channel 2.0 takes over channel management on set. With Auto Mode enabled, transceivers recognize one another and intelligently coordinate frequencies. More accurate spectrum scanning and conflict diagnostics allow each unit to hop frequencies seamlessly as conditions change, maintaining a stable connection despite interference, even with multiple systems running side by side.
SDR, Evolved
DCI 4K MonitoringSDR Transmission 2 transmits DCI 4K/60fps, 10-bit HDR, and H.265 video at bitrates up to 50 Mbps. The result is rich detail, smooth color transitions, and clear highlights and shadows, with consistent image quality across multiple cameras.
Up to 4 km RangeVideo transmission reaches up to 4 km. From open stadiums to dense mountain forests, and through demanding car-to-car shots or FPV drone work, it sustains a reliable link where you need it most.
Latency as Low as 35 msEven with higher image quality, latency stays as low as 35 ms. That keeps monitoring and remote commands, like focus pulls and gimbal moves, responsive.
Compact Body, Serious Capability
TX/RX SwitchableSwitch between transmitter and receiver on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for.
Approx. 136g UnitThe unit provides one HDMI and two USB-C ports. Its lightweight body reduces the load on handheld gimbals and mounts easily across a wide range of camera setups.
Expansion PlateProvides one SDI, one HDMI, and four USB-C ports. It also supports metadata transmission via SDI from mainstream cinema cameras like ARRI and RED.
Transceiver CageFor car mounts and other outdoor setups, the cage adds protection with plenty of mounting points. It locks the unit firmly onto a wide range of gimbals and rigs.
Ronin Ecosystem & Beyond
Integrates seamlessly with DJI RS series stabilisers. With the DJI Ronin app, a single phone handles both monitoring and control, from operating the gimbal wirelessly to starting and stopping recording.
Professional Monitoring & Control
Camera SwitchingNo more rebooting, scanning, and re-pairing. Switch between camera feeds from the transceiver or the DJI Ronin app, saving valuable time on set.
Monitor FeedDelivers an ultra-high-definition, low-latency feed to professional monitors over SDI, HDMI, or DP, so multiple monitors can share the same clean image.
Mobile FeedFor monitoring on the move, connect a phone or tablet to the receiver over USB-C and view the feed in the DJI Ronin app. A wired link keeps it stable and high-bitrate.
DJI Ronin App Monitoring Assistance Tools
The app supports professional monitoring tools such as LUT, histogram, waveform, and false color, delivering a more efficient and precise monitoring experience.
PTP/CEC Camera ControlDJI SDR Transmission 2 supports PTP camera control, allowing users to view and adjust aperture, shutter speed, and ISO settings, while also enabling photo capture and video recording through the app. Additionally, it supports CEC control for Sony cameras, activating Mirror Control mode.
Control for the RS Series StabilisersThe transceiver can wirelessly control RS Series stabilizers via the DJI Ronin app, supporting Force Mobile, virtual joystick, and gimbal recentering features.
Power Supply Solutions
The transceiver supports industry-standard NP-F battery types with a voltage range of 6.8 to 8.4 V.
