Scan code: LN128775 Manufacturer code: R-CH510-WHNNE1-G-1

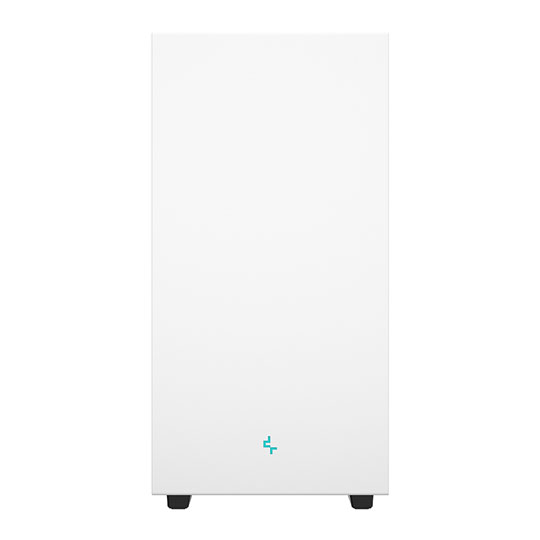

DeepCool CH510 TG White Mid Tower PC Case

DeepCool CH510 TG White Mid Tower Chassis, Tempered Glass Window, 1x 120mm Fans, mITX/mATX/ATX/EATX

Thumbnail 1 : DeepCool CH510 TG White Mid Tower PC Case Thumbnail 2 : DeepCool CH510 TG White Mid Tower PC Case Thumbnail 3 : DeepCool CH510 TG White Mid Tower PC Case Thumbnail 4 : DeepCool CH510 TG White Mid Tower PC Case
Scan code: LN128775 Manufacturer code: R-CH510-WHNNE1-G-1
Order now and get it tomorrow, Wed 24th Jul
Get it Tomorrow, 24 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

DeepCool CH510 White Tempered Glass Mid Tower ATX Case

DeepCool CH510 White PC Case

Spacious Mid-Tower Case The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.

Simply Streamlined

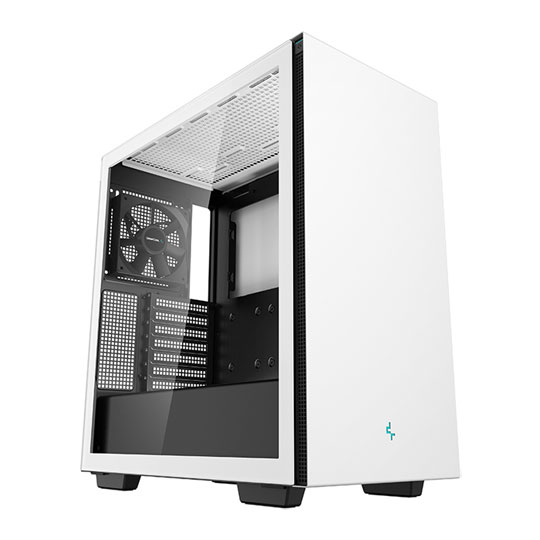

Tempered Glass design

Safety lock feature A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.

Versatile Cooling Capacity

Keep your components cool Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.


Case fans 9 x 120mm


Case fans 5 x 140mm

A Complete Build Experience

Build design

Clean and sleek design The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.

The Support you Need


GPU Support BracketThe built-in GPU support bracket ensures that your graphics card never has to sag.


Headset HolderA convenient headset holder can be pulled out from the front panel to help you organize.


Dust FiltersDedicated dust-filters help keep your system clean.


Rubber GrommetsHigh quality rubber grommets and ample cable space helps manage clutter.


PSU AirflowThe steel side panel features ventilation for airflow when using PSU shroud fans.

Easy Access Side Panels


Expand your cooling Quickly get to your internal components with a simple design with side vents allowing more air to flow in and out of the chassis.

Compatibility at it's Finest

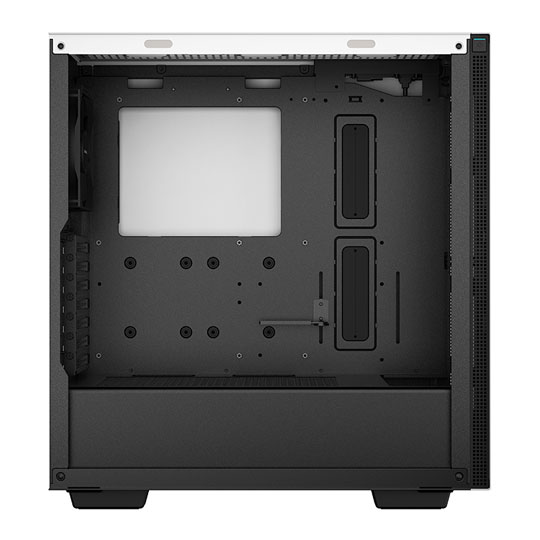

Wide and spacious interior Maximize potential with flexible configurations that meet the needs of any system setup. The CH510 provides ample space without being too bulky.

CPU Cooler height up to: 175mm
Space for large GPUs: 380mm

Front I/O Panel


Superior connectivity access A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.

Core Chassis Specifications
Case Edition CH510 TG White
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Reverse Connection Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 2 x 3.5" External

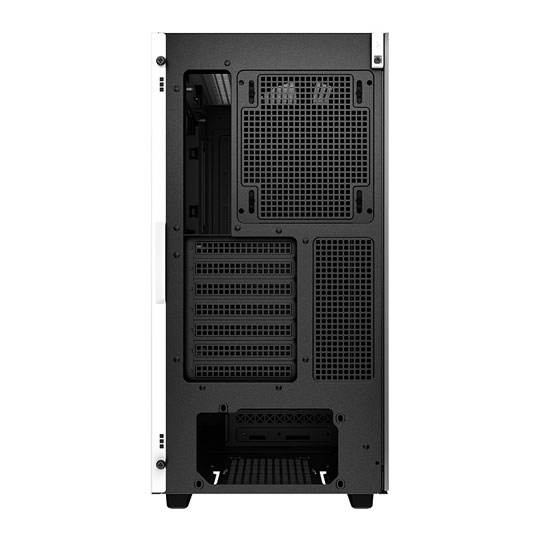

Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays 7 x 120mm / 5x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 360mm
Top Radiator Compatibility 1 x 360mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 140mm
Side Radiator Compatibility
Max CPU Cooler Height 175 mm
Max GPU Card Length 380 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 170 mm
Chassis Physical Specifications
Colour White
Chassis Construction Materials Steel
Dimensions 230 x 471 x 435 (WxHxD mm)
Weight 7.2 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN128775
Model Number R-CH510-WHNNE1-G-1
GTIN 6933412715016

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
3 months
Manufacturer Contact Details
Beijing Deepcool Industries Co
