Datavideo - 'Cap-2'

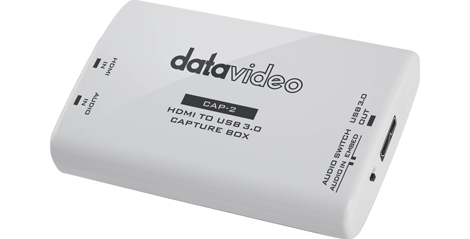

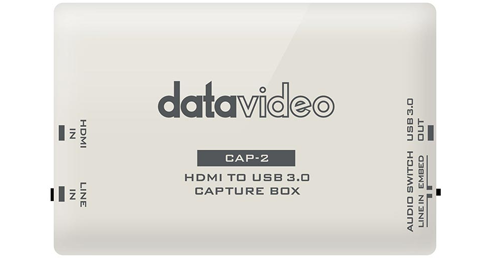

HDMI to USB 3.0 Capture Box


datavideo cap 2

CAP-2 HDMI to USB 3.0 Capture BoxThe Datavideo Cap-2 is a HDMI to USB 3.0 capture box which supports up to 1080p50/60. This capturing device gives you the option to plug-and-play into multiple operating systems. Features include stereo line in external audio with the option of changing from HDMI embedded audio to external line-in audio with more varied and powerful choices for capturing, an incredibly useful tool to have.

HDMI to USB 3.0 Capture Box

HDMI To USB

Plug-N-PlayThe new CAP-2 capture box allows you to connect directly into your computer for streaming, recording or any other video use. It takes HDMI in with embedded or external audio and converts it to USB 3.0 connection to go into your computer.

Perfect for use with any camera featuring HDMI or switcher. With no extra drivers needing to be installed the plug-n-play design makes it incredibly easy so you can stream directly from the HDMI to YouTube, Facebook or other video streaming software such as Twitch, Zoom, Skype or Teams.

Special Features

features

USB 3.0 InterfacePowered from the USB connection.No need for external power.

Plug-and-PlaySupports UVC. Video format use (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform.

Compatible with various operating systemsSupports Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime

Stereo line in external audioSwitched as HDMI embedded audio or external line-in audio.

Datavideo Capture Boxes

capture boxes

The Tech Spec

Features Specification
Input 1x HDMI
Output 1x USB 3.0 (Micro B)
Input Video Bandwidth 150MHz (pixel clock rate)
Output Video Bandwidth Up to 350Mbps (USB)
Supported Input/Output Video Formats 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1680 x 1050p 60
1600 x 1200p 60
1440 x 900p 75/60
1400 x 1050p 60
1366 x 768p 60
1360 x 768p 60
1280 x 1024p 75/60
1280 x 720p 60/59.94/50
1024 x 768p 75/60
800 x 600p 75/60
720 x 576p 50
720 x 480p 60
640 x 480p 75/60
Supported Output Video Formats 1920 x 1080p 60/50/30/25/24
1680 x 1068p 60
1440 x 1080p 60
1440 x 896p 60
1360 x 768p 60
1280 x 768p 60
1280 x 720p 60/50
1024 x 768p 60
960 x 536p 60
848 x 480p 60
768 x 576p 60
720 x 480p 60/50
640 x 480p 60
640 x 360p 60
Audio Support 2-Channel, 44.1 and 48KHz sample rate, up to 24-bit PCM
Capture Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update Via USB
Power Consumption 2W
Operation Temperature 0~40°C
Storage Temperature -20~60°C
Humidity 20~90% RH
Minimum System Requirement Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher
Dimension (LxDxH) 105 x 68 x 23 mm
Weight 70g
