Scan code: LN109529 Manufacturer code: DATA-CAP1

Datavideo Cap-1, 2-Channel, 16-bit PCM, USB Powered, SDI Embedded Audio

Datavideo Cap-1, SDI to USB 3.0 Capture Box, 150MHz Input Bandwidth, Up to 350Mbps Output Bandwidthl

Thumbnail 1 : Datavideo Cap-1, 2-Channel, 16-bit PCM, USB Powered, SDI Embedded  Audio Thumbnail 2 : Datavideo Cap-1, 2-Channel, 16-bit PCM, USB Powered, SDI Embedded  Audio
Scan code: LN109529 Manufacturer code: DATA-CAP1
£300.49Item due on 30 September 2020
Due 30th Sep
From £12.52 / month (APR 0%)
Monthly Payment: £25.04
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £300.49
Total inc. interest: £300.49
Monthly Payment: £12.52
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £300.49
Total inc. interest: £300.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Datavideo - 'Cap-1'

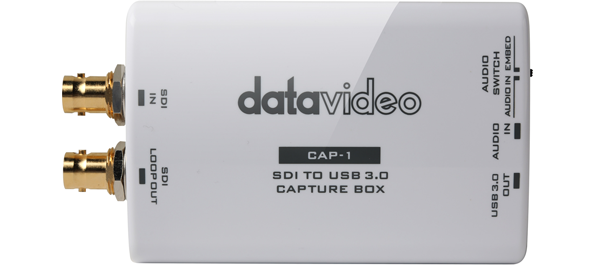

SDI to USB 3.0 Capture Box


datavideo cap 1

CAP-1 SDI to USB 3.0 Capture BoxThe Datavideo Cap-1 is an SDI to USB 3.0 capture box which supports up to 1080p50/60. This capturing device gives you the option to plug-and-play into multiple operating systems. Features include stereo line in external audio with the option of changing from SDI embedded audio to external line-in audio with more varied and powerful choices for capturing, an incredibly useful tool to have.

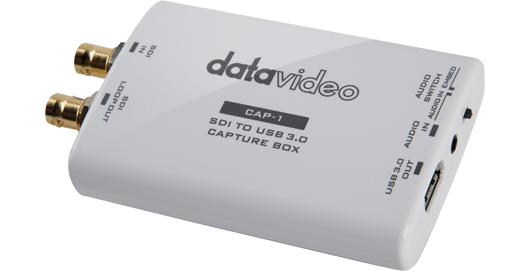

SDI to USB 3.0 Capture Box

SDI To USB

Plug-N-PlayThe new CAP-1 capture box allows you to connect directly into your computer for streaming, recording or any other video use. It takes 3G-SDI in with embedded or external audio and converts it to USB 3.0 connection to go into your computer.

Perfect for use with any camera featuring SDI or switcher. With no extra drivers needing to be installed the plug-n-play design makes it incredibly easy so you can stream directly from the SDI to YouTube, Facebook or other video streaming software such as Twitch, Zoom, Skype or Teams.

Special Features

features

USB 3.0 InterfacePowered from the USB connection.No need for external power.

Plug-and-PlaySupports UVC. Video format use (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform.

Compatible with various operating systemsSupports Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime

Stereo line in external audioSDI Loop-out for monitoring or recording the video source. Switched as SDI embedded audio or external Mini-Jack audio.

Datavideo Capture Boxes

capture boxes

The Tech Spec

Features Specification
Input 1x HD/3G-SDI
Output 1x USB 3.0 (Micro B)
1x SDI loopthrough
Input Video Bandwidth 150MHz (pixel clock rate)
Output Video Bandwidth Up to 350Mbps (USB)
Supported Input/Output Video Formats 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.976
1280 x 720p 60/59.94/50
Audio Input SDI Embedded Audio & 3.5 mm stereo in
Audio Format 2-Channel, 16-bit PCM
Recording Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update Via USB Port
Software Compatibility Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Supported OS Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
Power Supply Via USB
Power Consumption 3W
Operation Temperature 0~40°C
Storage Temperature -20~60°C
Humidity 20~90% RH
Minimum System Requirement Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)
Note: The driver is required for Windows 7 OS
OS X (10.10 or above)
Linux Ubuntu 14.04
PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher
Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher 4GB RAM or higher
Dimension (LxDxH) 121 x 68 x 23 mm
Specifications
Interface
Internal Connectors 1 x USB 3.0
External Connectors
Power Connector 1 x USB Power
Additional Information
Scan Code LN109529
Model Number DATA-CAP1
GTIN 00
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
