Creality Sermoon P1 3 Mode 3D Scanner

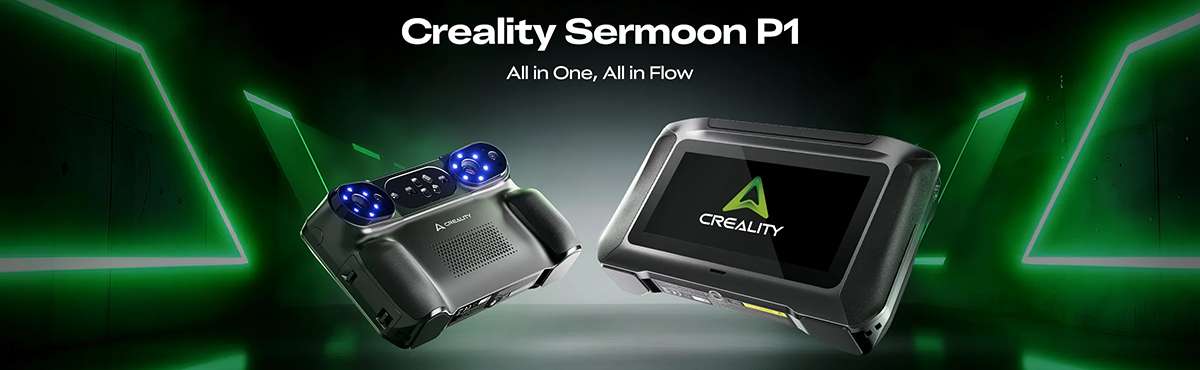

Creality Sermoon P1 3D Scanner

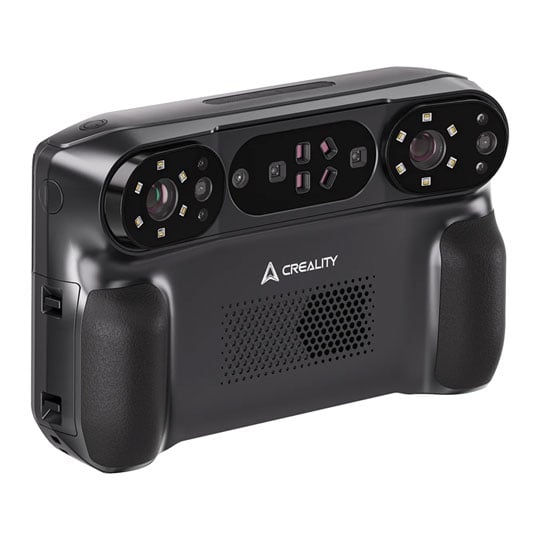

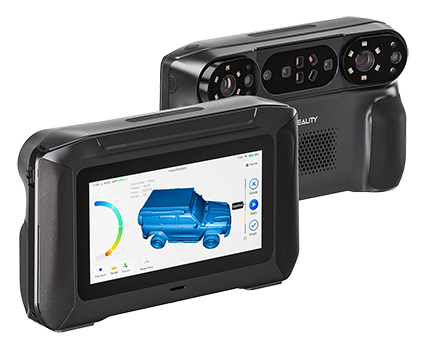

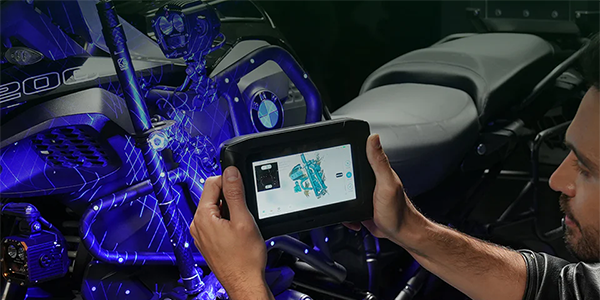

The Creality Sermoon P1 is positioned as a professional, all-in-one 3D scanning solution built for users who want high precision, flexibility, and true portability in one device. It combines industrial-grade scanning performance with onboard computing, a built-in display, and battery power, making it suitable for fieldwork, inspection, reverse engineering, and digital archiving.

Multi-line Scanning System

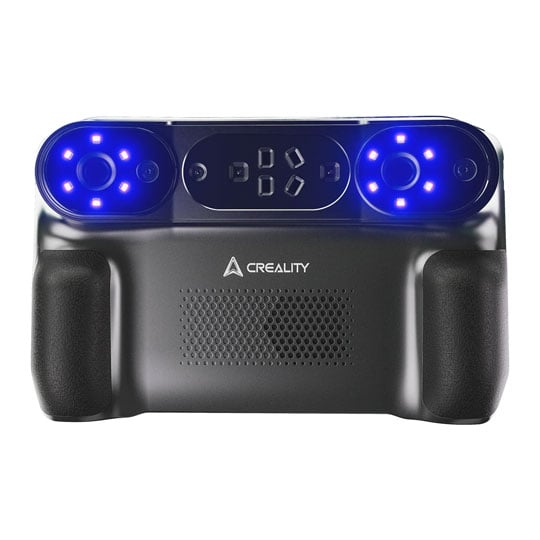

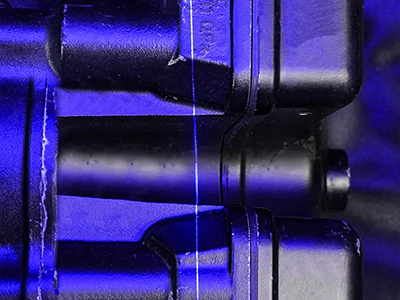

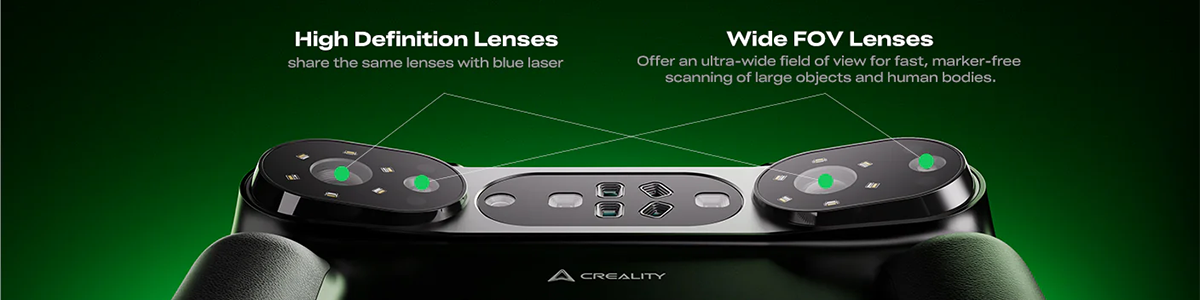

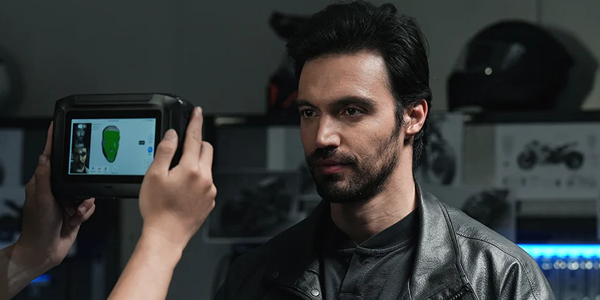

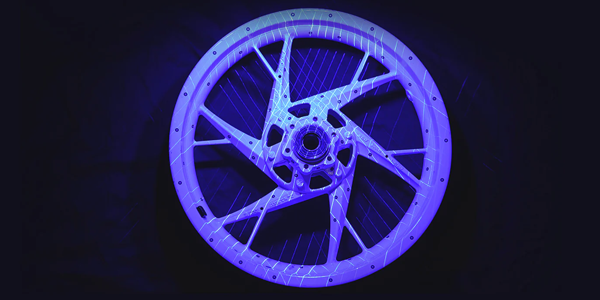

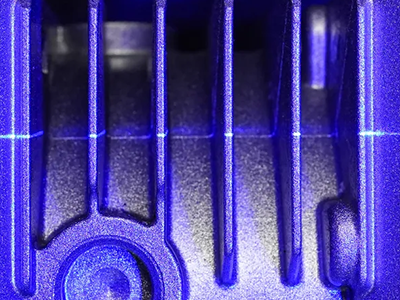

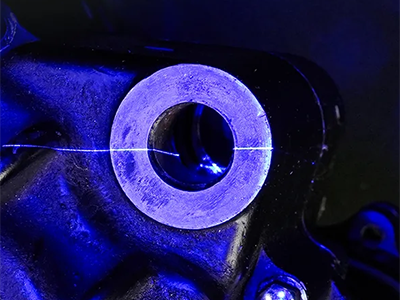

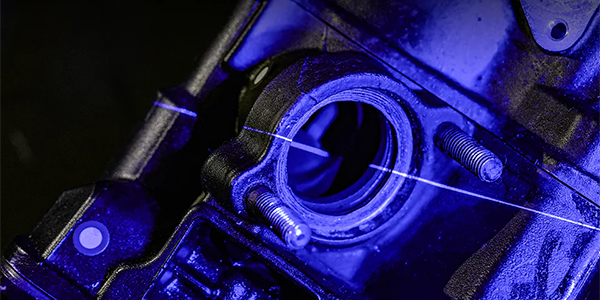

The Sermoon P1 uses a hybrid scanning setup with 22 cross lines, 7 parallel lines, and 1 single blue laser line, supported by dual NIR VCSEL technology. This gives it the ability to balance speed and detail, while also handling complex geometry, recesses, holes, and fine surface features more effectively.

High-precision Capture

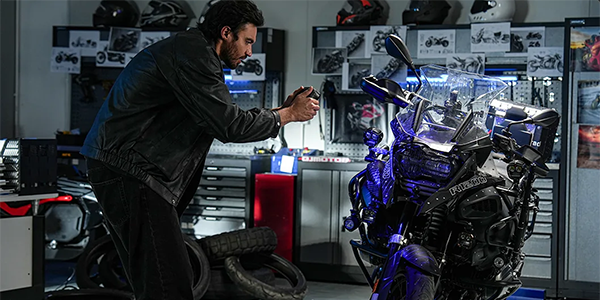

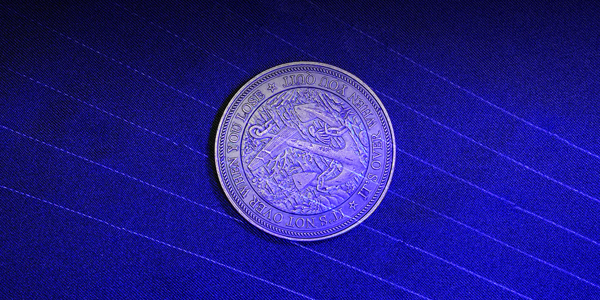

Creality states a volumetric accuracy of 0.02 mm + 0.06 mm/m, positioning the Sermoon P1 as a strong choice for professional applications that depend on dimensional reliability. This level of precision makes it well suited to engineering workflows, inspection tasks, and applications where accurate digital models are essential.

Wide Object-size Range

The scanner is designed to handle a broad range of object sizes, from very small parts to much larger assemblies, with a claimed scan range from 5 mm³ to 4000 mm³. That versatility reduces the need for multiple scanning devices and makes the P1 practical for mixed-use environments where part sizes vary significantly.

Standalone, Wireless, and Wired Modes

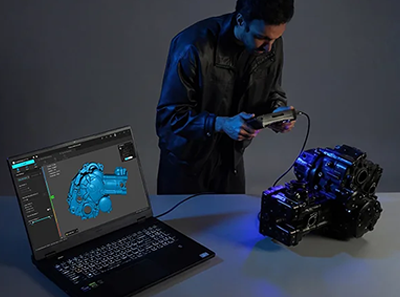

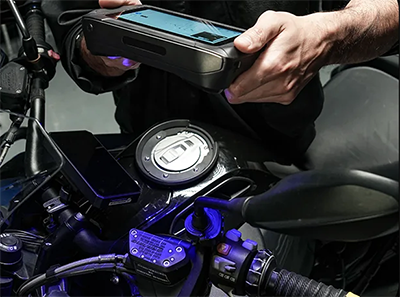

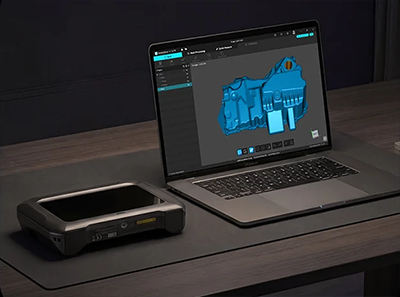

One of the most distinctive features of the Sermoon P1 is its three operating modes: standalone, wireless, and wired. In practice, this means users can scan away from a computer when mobility matters, or connect to a PC for more stable real-time workflows when a fixed setup is preferred.

Integrated Computing Platform

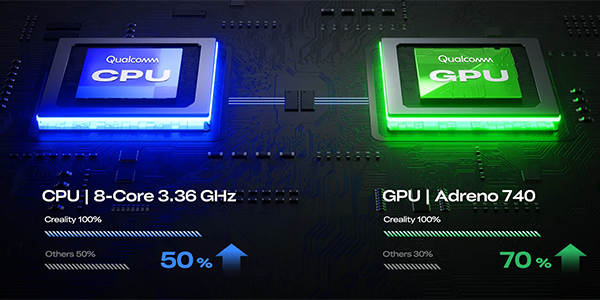

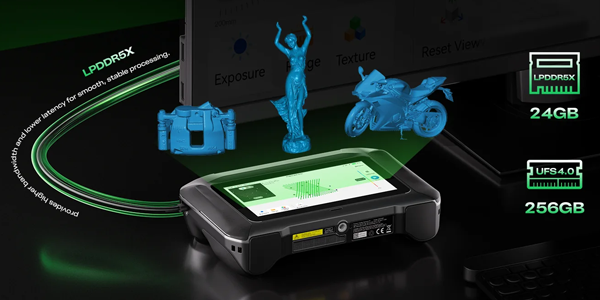

The device includes onboard processing hardware, 24GB of RAM, and 256GB of storage, allowing scans to be processed directly on the scanner without relying on an external laptop. This helps create a smoother workflow in the field and supports the product's positioning as a self-contained professional scanning workstation.

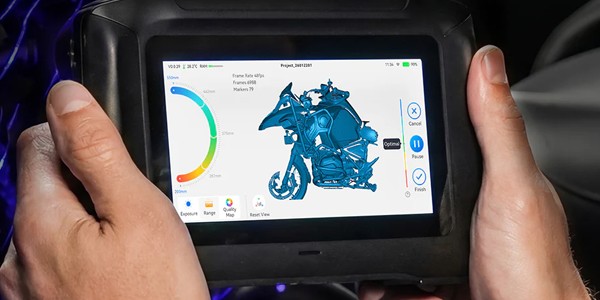

6-inch HD Touchscreen

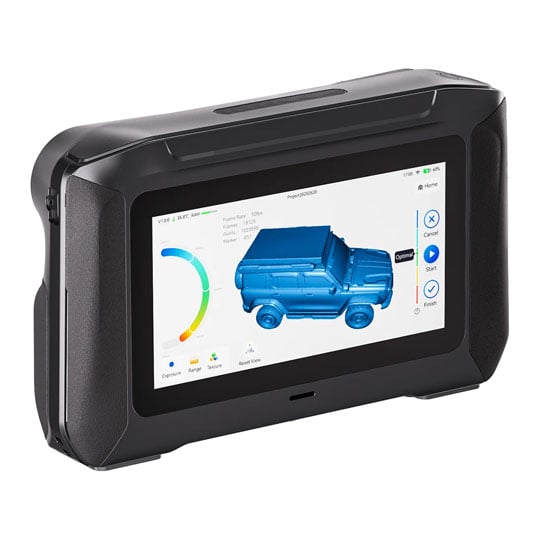

A built-in 6-inch HD touchscreen gives users a live preview of scan progress and mesh data directly on the scanner itself. This improves usability by making it easier to monitor results, adjust workflows, and keep scanning efficient without constantly checking a separate computer.

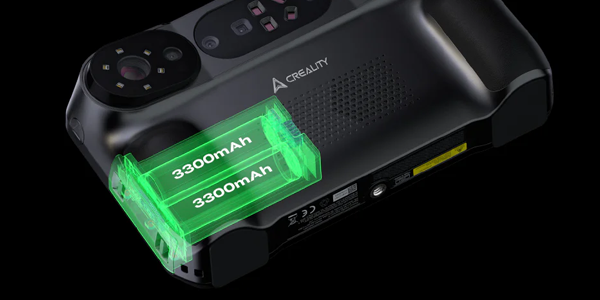

Hot-swappable Battery Power

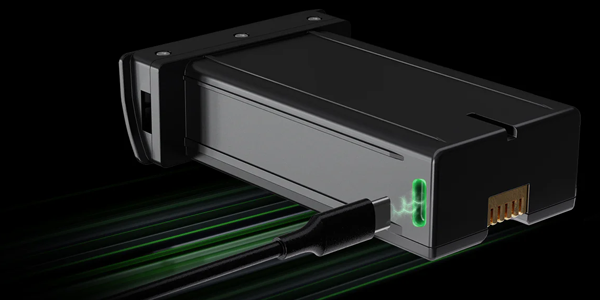

The Sermoon P1 uses two hot-swappable 3300mAh batteries, enabling continuous operation without shutting the unit down. That feature is especially valuable for mobile scanning sessions, long inspections, or on-site capture work where uninterrupted uptime matters.

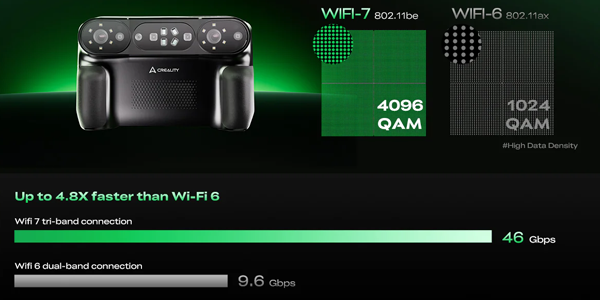

Wi-Fi 7 Connectivity

Creality includes Wi-Fi 7 connectivity for fast wireless communication between the scanner and a computer or network environment. This supports the device's flexible workflow design and helps maintain fast data transfer during high-resolution scanning.

• Multi-Line Scanning for Speed & Detail.
• Versatile Size Range.
• High Precision for Demanding Work.
• 3 Modes for Maximum Flexibility.
• Hardware Built for Performance.
• Uninterrupted Operation.
