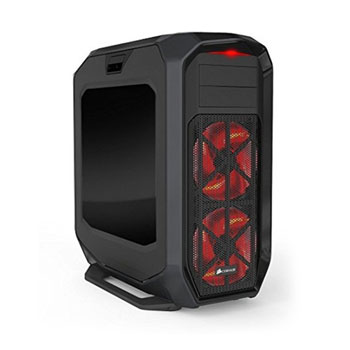

Corsair 780T PC Case

Corsair Graphite Series 780T Black Full Tower Case w/o PSU

Corsair
Scan code: LN59508 Manufacturer code: CC-9011063-WW Request call
£184.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £11.50 By DPD On 12th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Premium looks, premium space, premium cooling.
The stunning Graphite Series 780T Full-Tower PC case can satisfy the most hardcore gamer or overclocker with ample room for nine drives and nearly a dozen large cooling fans. Into water cooling? You’ll appreciate the generous space for dual 360mm radiators. And, you’ll get everything done faster: the 780T offers easy maintenance shortcuts like tool-free removal of side panels, hard drives, and graphics cards. A three-speed fan control button and generous options for peripheral connections make the front-panel a true time saver.

Rounded corners and a sleek, cohesive design
A nicely built high performance PC can be a thing of beauty, and this is truer than ever with the artfully crafted exterior.

Dual 360mm radiator support
Does your next dream build demand state of the art cooling? The 780T has you covered. Of course, if your heat transfer needs are a little more down-to-earth, 120mm and 240mm cooling goes in just as easily.

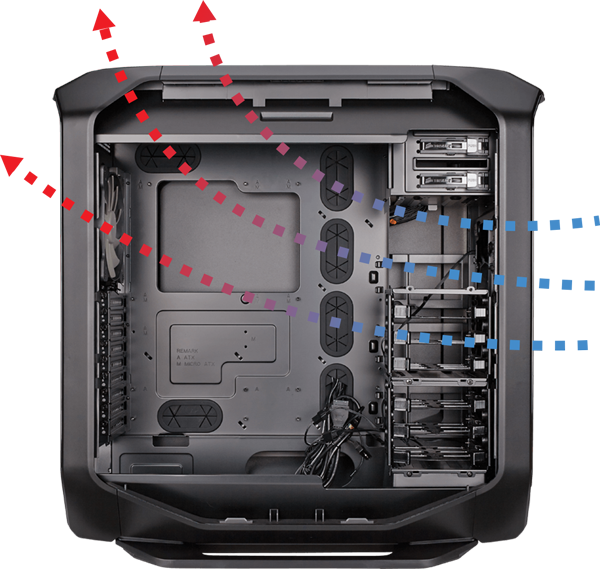

Dual 140mm intake fans and a 140mm exhaust fan
The 780T gives you ample airflow right out of the package. Large diameter front intake fans deliver plenty of cool air to your high performance components.

Smart storage configuration
Modular hard drive cages and space-saving side-mounted SSD bays make the most of interior volume. You can remove the cages you don’t need, and your solid-state storage tucks out of sight and out of the airflow path. Features • ounded corners and a sleek, cohesive design for great-looking systems

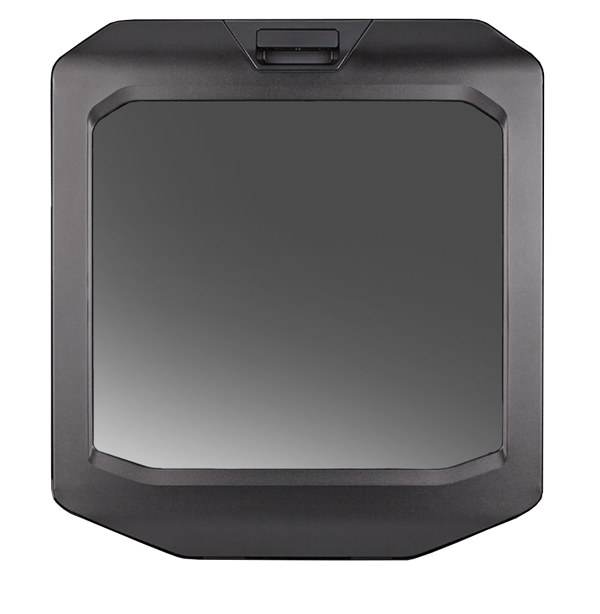

• Latched side panels for easy access
• Supports dual 360mm radiators for state-of-the-art cooling installations
• Front panel three-mode fan controller lets you tailor performance and fan noise
• Dual 140mm LED intake fans and a 140mm exhaust fan for ample airflow
• Six Modular hard drive cages and three space-saving side-mounted SSD bays for smart storage
Specifications
Specifications
Case Edition Graphite Series 780T
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • Micro ATX
  • Mini ITX
  • XL-ATX
Material Steel
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 3 x 2.5" Internal
  • 6 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 9
Fan Bays
  • 5 x 120/140 mm
  • 2 x 120mm
Fans Included 3 x 140mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 200 mm
Max VGA Card Length 355 mm
Colour Black
Dimensions 637 x 288 x 602 (WxHxD mm)
Weight 11.3 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Rated 4.8 out of 5 by 12 reviewers.
Rated 4 out of 5 by A really great case, just be careful with wiring Used this case for a new Skylake build some months ago and I have to say I'm really impressed with it. Good solid construction, with plenty of routing options for cables. Be warned though, this really is a full-sized case, so check your measurements for where you're thinking of putting it! I've put the massive 280mm Corsair H110i GTX in the roof, which easily fits with room to spare. Definitely no need to worry about space inside this case. I've also put an MSi GTX 980Ti Lightning in, the one with three cooling fans, and despite its length it also fits, no problem. The case fans which are provided are also very quiet, but not too surprisingly, the noise they make depends on what speed you run them at. Having now had time to experiment, I've run the case fans direct from my PSU, which has a dedicated connection, and also using the fan controller connections built into the case. I've ended up settling for using the case's own controller as the three different speeds give you plenty of options. By default the case powers on with the fans at level 3, the fastest and "loudest", but if you're doing anything other than very quiet office work you're unlikely to notice them. Out of habit I find I now usually just hit the fan button once which cycles them down to level 1 when I power on, but it's just my preference. Two reasons for docking Corsair a star, as this really is an excellent case: 1) One of the front mounted fans had a duff bearing. Sounded like I'd caught a cable or something in the blades when I first powered it on. Tried various positions and wiring but it proved to definitely be the fan at fault. Called Scan and they immediately arranged for a replacement through Corsair, which came about 4 days later - very pleased with the service! 2) the wiring loom for the case fans, lights and switches, as mentioned in other reviews, is a bit of a hit and miss affair. I've seen several reviews here and elsewhere on the web saying that their lights for the case switches and buttons don't work. Note that you really do need to connect everything to the right power cable. In all my years PC building I still made a mistake and had not lights for the buttons to start with. Make sure you connect the lighting cable to a Molex main power cable rather than running it off a SATA power cable. It definitely pays dividends if you take the time to sit down and separate/sort out the bundle of cables before you start connecting stuff. When everything finally lights up red on the top panel it's a lovely sight to behold! 24 February 2016
Rated 5 out of 5 by Corsair Graphite Series 780T This case has made my recent PC build so much easier due to the amount of room available and the cable routing options. My only slight niggle was the slightly flimsy construction of the side panels. However in fairness, this has not been a concern during either the build or subsequent usage. All in all, an excellent product. 12 February 2016
Rated 5 out of 5 by plenty room for pretty much everything, looks epic and well designed It looks epic and has more room than i need, It has so much potential for xtreme builds and with the built in fan controler it is super quiet on lowest setting even with x5 140mm x1 120mm and a 80mm fans running, it would have been better if it had 8 fan control rather than 5, the front dust filter does restrict a small amount of airflow. 30 October 2015
Rated 5 out of 5 by Best case I've purchased No doubt this is the best case I've purchased. Very spacious in side. The cable management is excellent. Fitted a H110i GT & its superb. Fans can be a little noisy but I just run it on the lowest setting. Can be a little bit fiddly to install everything but once you have it set up your never look back. 07 October 2015
Rated 5 out of 5 by Great high-end case The case seemed pretty well packed from the factory and arrived in top condition; they even ship it in a cloth cover within the box. The build quality is top notch, easily the best of several different cases I've worked with recently. All possible fan mounts (except the rear) have external, removable dust filters which slide or simply push into place for easy cleaning, and the two front/one rear 140mm basic corsair AF fans that come with the case are pretty good in terms of air flow and low noise (you probably don't need to replace them straight away unless you have some specific air flow requirements) The top mounting space has plenty of clearance within the case and there is about another 25ish mm between the frame and top dust filter meaning you can either hide a radiator up there, or fans, or there is plenty of room for a push/pull set up There are 6 regular sized HDD bays, the sleds of which have screw mounting holes for SSDs too, and these are split into two cages of 3 slots - both cages can be removed, hung from the top 5.25" mount, placed side by side at the bottom of the case etc, making for some pretty flexible storage options. The only real disappointing parts about the case for me are the complete mess of I/O cabling that quite frankly I just ended up tucking away into some space at the front of the case, it took a fair while to sort and untangle the basics (USB, Audio header etc) and the rest I kinda just hooked up as needed in a bit of a mess. (By the way, if you've hooked up most of the stuff you think you know about and still have a power connector dangling around, its probably the I/O and front lighting) The second issue - and this is probably my own fault / inability / unwillingness (call it what you will) - is that the horizontal SSD bays which fit between the drive cage area and the rear panel don't really lend themselves to being used unless you have straight connector or even individual SATA power cables for your PSU. (Again, this could just be my complete lack of cabling ability so it shouldn't be a deal breaker when looking at this case, but just keep in mind that it seems tricky to use these bays with standard cabling). I definitely recommend this case if you've got some large components, multiple GPUs, or custom cooling loop that will look great displayed through the huge windowed side panel 24 July 2015
Rated 5 out of 5 by Great Case When I bought this case I was expecting a high end service and I was not disappointed, the LED red lights make it look gorgeous, however I added a few blue LED strips and now its amazing and its massive you can fit four graphic cards 23 June 2015
Rated 5 out of 5 by Great item 100% worth its price! Great item 100% worth its price! Great looking great spacing nothing more to add. 19 June 2015
Rated 5 out of 5 by Corsair Graphite 780T I bought this to replace my Coolermaster Storm trooper case. I actually love the 780T and I especially like the way the side panels are so easily removed (I hate those slide panels because I open my PC case constantly). There's also plenty of room within to bung just about anything you like in there. I was a bit worried about cooling (even though I've a Corsair H110i GT Hydro Cooler in there) so I decided to mod the side panel to include a 120mm fan, which is now blowing on the back plate of the CPU). I'm not saying this case does not have adequate options for fans and the like because it does, but my case gets mighty hot inside and I do like to have as much cool air blowing in as possible. I also like the fact that you can buy spare parts for this case from Corsair themselves. That way, if you make an error while modding you can replace the part you ruined! ;) All in all a splendid case. I'll be doing a new build toward the end of 2015 and this case is at the top of my shopping list.... I marked "Value" down to "Good" because I thought this case a little more expensive than it should have been. That being said the build quality is excellent and I will definitely be buying another... Basically "What's not to like?!" Recently I've been buying a lot of Corsair Stuff. My system memory, my cooler and all my PSUs are Corsair, good quality gear in my opinion... Froobs... 06 June 2015
  • 2016-05-20 T12:52:54.871-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_12, tr_12
  • loc_en_US, sid_59508, prod, sort_default
2 next>>
Questions & Answers
(1 Question : 4 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


So the Corsair compatibility chart doesn't have top mounting ticked for the H110i GT,
I've been googling the compatibility of this case and cooler combo but have yet to find anything conclusive.

I'm looking at an X99 system and will be happy with any decent dual fan AIO liquid cooling solution, but thought the H110i GT would make the best use of the available 140mm mounting.
Obviously with the price of these components, I'd rather be sure it fits than end up having to deal with returns etc on discovering an issue!
1 year, 1 month ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about SuddenlyPineapples is loaded.
Additional information about SuddenlyPineapples could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Yes, I was worried about that too, but this case will accommodate a Corsair H110i GT. I presently have one in the "roof of my PC. ;)
11 months ago
Customer avatar
by
North Eastern England
Read all my Q&A

Please wait while more information about Frooble is loaded.
Additional information about Frooble could not be loaded.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

Answer:
I have a H110i GT installed in the case on the top, so not sure why it says its not compatible.
Age: 25 to 34
Gender: Male
7 months ago
Customer avatar
by
Somerset, UK
Read all my Q&A

Please wait while more information about mike82 is loaded.
Additional information about mike82 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Top mounting is indeed possible.
3 months, 1 week ago
Customer avatar
by
UK
Read all my Q&A

Please wait while more information about Comante is loaded.
Additional information about Comante could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
I've fitted the H110i GTX in my case, which is 280mm long, and it fits no problem. The compatibility chart is wrong.
Age: 45 to 54
Gender: Male
2 months, 3 weeks ago
Customer avatar
by
Holmes Chapel, Crewe, Cheshire East CW4, UK
Read all my Q&A

Please wait while more information about MrDonkey is loaded.
Additional information about MrDonkey could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
