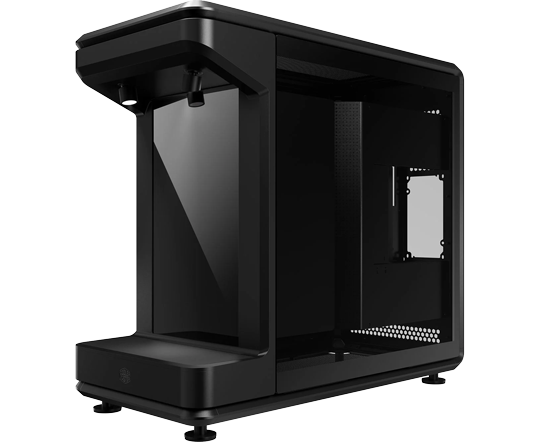

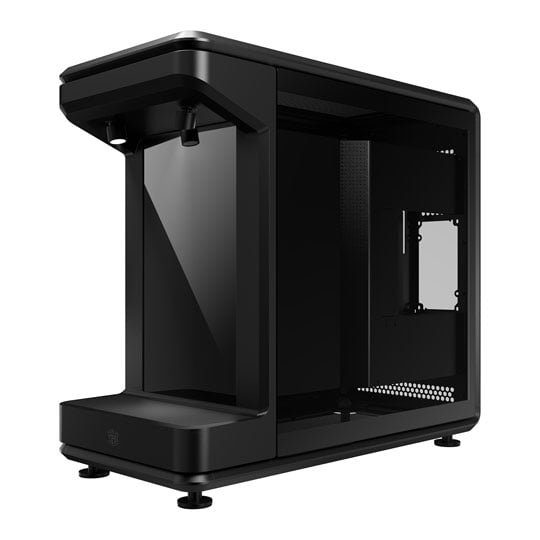

Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case
Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case
Scan code: LN168577 Manufacturer code: MF360-KHNN-S02
£249.98Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case
  • Thumbnail 2 : Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case
  • Thumbnail 3 : Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case
  • Thumbnail 4 : Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case

Cooler Master MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case

Cooler Master MasterFrame 360 Stage LCD Chassis, Black, Mid Tower, USB-C / USB-A, 3.5mm, Back-Connect, ATX / mATX / mITX

Scan code: LN168577 Manufacturer code: MF360-KHNN-S02
£249.98
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £83.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £12.21 / month (APR 16.9%) for 24 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

Suggested Alternatives

MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case

MasterFrame 360 Stage LCD Black Mid Tower Tempered Glass PC Gaming Case

Showcase Without Compromise MasterFrame 360 STAGE LCD is designed for creators and enthusiasts who demand both performance and aesthetics. The integrated front-facing LCD screen transforms the chassis into a visual showcase-ideal for displaying your favourite content or media that complements the stage-inspired theme. Taking cues from concert stages, the LCD acts as a visual centrepiece, perfectly aligned with the chassis design. Whether you're building for performance or presentation, the STAGE LCD offers the space and flexibility to bring your vision to life.

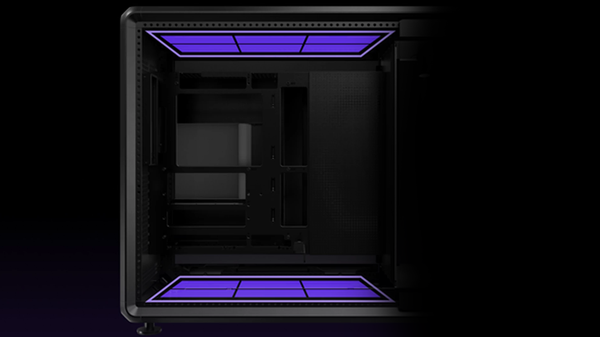

cooling compatibility

Massive Cooling Compatibility To ensure exceptional thermal performance, the case supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans-six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

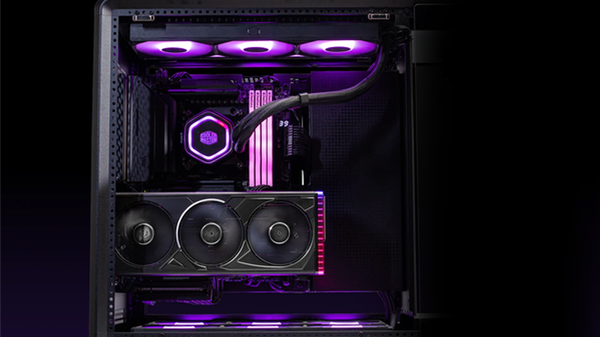

Chassis GPU compatibility

Wide Component Compatibility The MasterFrame 360 Stage LCD PC case accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.

The Stage for Personal Expression

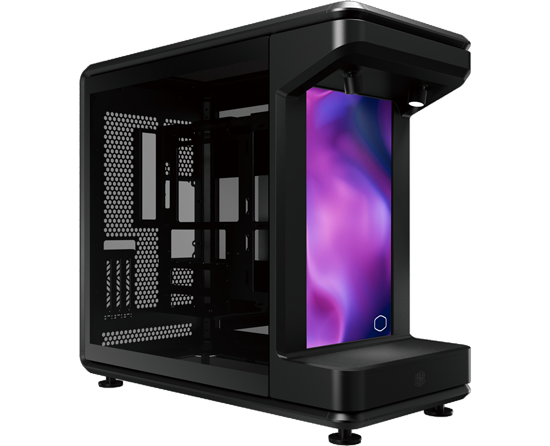

MasterFrame 360 Stage LCD display

Open layout, open design. An integrated front-facing LCD screen transforms the build from a static showcase into a visual platform for personal expression. Designed to complement collectible displays such as figures and themed setups, the screen allows you to curate content that enhances your aesthetic story. With its open-frame design, the chassis offers complete freedom to position and showcase your items without restriction-turning your build into a stage that's uniquely yours.

Extended Display ModeThis mode functions as a true secondary monitor to extend your desktop or showcase any live system content.

Custom Playback Mode Includes 2 preloaded animation effects designed to complement figure and collectible displays. Users can also upload personalised content via MicroSD card (JPG and MP4 formats) to create a uniquely immersive visual experience.

Compatible with Standard and BTF Motherboards

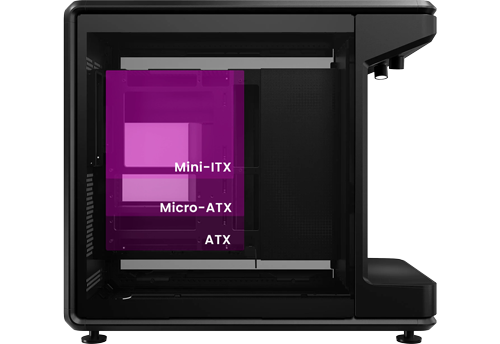

MasterFrame 360 Stage LCD Case motherboard compatibility

With cable routing clearance Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor. Features 110 mm of cable routing clearance for a clean and clutter-free showcase.

More Features

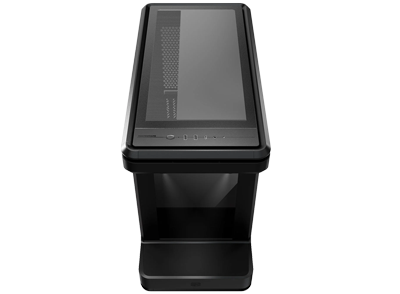

ports

Next-Gen Connectivity at Your Fingertips Features USB 4.0 Gen 2x2 Type-C (up to 20G) and 2x USB 3.2 Gen 1 Type-A ports (up to 5G), providing ultra-fast data transfer and future-ready accessibility.

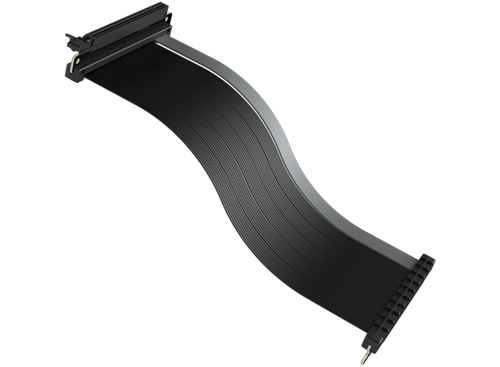

PCIe 5.0 riser cable

PCIe 5.0 Riser Cable Included Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

Specifications
Core Chassis Specifications
Case Edition MasterFrame 360 Stage LCD
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Back Connect Compatible Yes
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 4.0 Type-C
Drive Bays 1 x 3.5" / 2x 2.5" Internal
Standard Expansion Slots 3.5
Vertical Expansion Slots
Fans & Filters
Fan Bays 12 x 120mm / 4x 140mm / 4x 200mm
Fans Included None
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/140/240/280/360mm
Bottom Radiator Compatibility 1 x 120/140/240/280/360mm
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 145 mm
Max GPU Card Length 430 mm
Cable Routing Space 110 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
  • 1 x Rear
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters
LED Lighting Colour RGB
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 210 mm
Chassis Physical Specifications
Colour Black
Chassis Construction Materials SGCC
Front Panel Type Tempered Glass
Dimensions 291 x 581 x 549 (WxHxD mm)
Weight
Package Type
Please Note
Additional Information
Scan Code LN168577
Model Number MF360-KHNN-S02
GTIN 4719512163436
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
