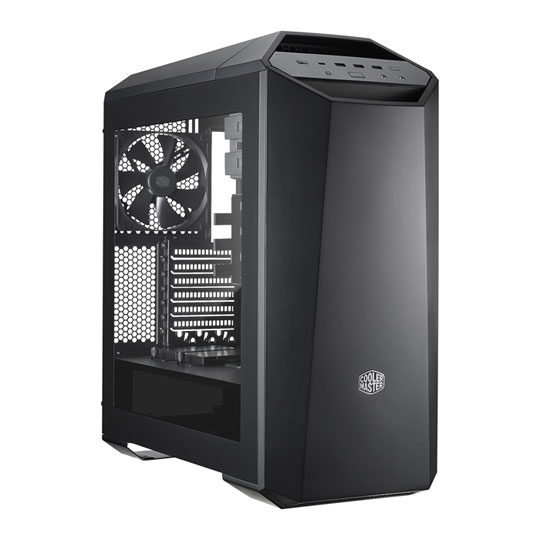

Coolermaster MasterCase Maker 5 Windowed Gaming Case

Cooler Master MasterCase Maker 5, Mid Tower Case, ATX/Micro ATX/Mini ITX, With Window, Red LEDs, USB 3.1 C

Cooler Master
Scan code: LN72484 Manufacturer code: MCZ-005M-KWN00 Request call
£164.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £11.50 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The new wave of case technology pioneered by our MasterCase series crests with the unique FreeForm™ Modular System, which allows unparalleled flexibility to upgrade your case via the addition of top panels or doors, adjusting aesthetics, thermal performance and layout flexibility.

The MasterCase Maker 5 advances beyond the concept of a standard build by offering the option to completely swap and readjust the case's form and functionality with multiple interior and exterior outlooks, ample space and customized accessories. Features • Upgraded I/O: Four USB ports, including 3.0 Type C, added buttons for LED strip and fan speed control.
• Magnetic paneling: Front and top panels fit snugly with a magnetic grip.
• Sound suppression: Optional padded front and top panels (with added plate) balance noise and airflow.
• Custom air cooling: Support for up to six 140mm fans, with three in front and two on the top for top-down cooling.
• Clip-and-click: Unique components panel for drive cage adjustment.
• Diverse 280mm liquid cooling: Water bracket enables top cooling while shifting the bottom-mounted HDD cage allows for front installation.
• Dual chamber: Partition panel isolates power supply and cables for clean management.
• Slip-and-clip SSDs: Two pockets with four mounting positions - behind motherboard tray and on top of partition.
Specifications
Case Edition MasterCase Maker 5
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
Material Metal / Plastic
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
  • 1 x USB 3.0
  • 1 x USB 3.0 Type C
Drive Bays
  • 2 x 2.5" Internal
  • 5 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
Expansion Slots 7
Fan Bays
  • 3 x 120/140mm
  • 3 x 140mm
Fans Included 3 x 140mm
Front Radiator Compatibility 1 x 120/140/240/280mm
Top Radiator Compatibility 1 x 120/140/240/280mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120/140mm
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length 200 mm
Max CPU Cooler Height 190 mm
Max VGA Card Length 296/412 mm
Colour Black
Dimensions 235 x 548 x 528.6 (WxHxD mm)
Weight 12.3 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
Customers also bought
Reviews
Cooler Master MasterCase Maker 5, Mid Tower Case, ATX/Micro ATX/Mini ITX, With Window, Red LEDs, USB 3.1 C is rated 4.5 out of 5 by 2.
Rated 4 out of 5 by from Best case I have owned very mod friendly and sleek looking Would of liked to of given 5 star. However, the side panel was scratched and full of scruffs out the box. Second time in a row cooler master! Could of been nicer and given a tempered glass one for free at £165! The top 2.5" drive cages sit too close to the mobo and made it impossible to place my nzxt hue+ there. There is plenty of room to place them more towards the side panel.
Date published: 2017-02-06
Rated 5 out of 5 by from Amazing product I recently bought this product and used it to transfer my comoinenents from a derelict case and this case suited all my needs adequately and went beyond. It is so customisable it is unbelievable.
Date published: 2017-01-06
  • y_2017, m_11, d_18, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_72484, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

USB 3.1 C or USB 3.0 C

The description states that this case has USB 3.1 C, but the specifications only mention 1 x USB 3.0 Type C. Which is it, 3.1 or 3.0?
Asked by: Hedfan
Hello, The case contains a USB 3.0 type-c slot, along with USB 3.0 and 2 x USB 2.0. Regards,
Answered by: JackB
Date published: 2017-08-10
