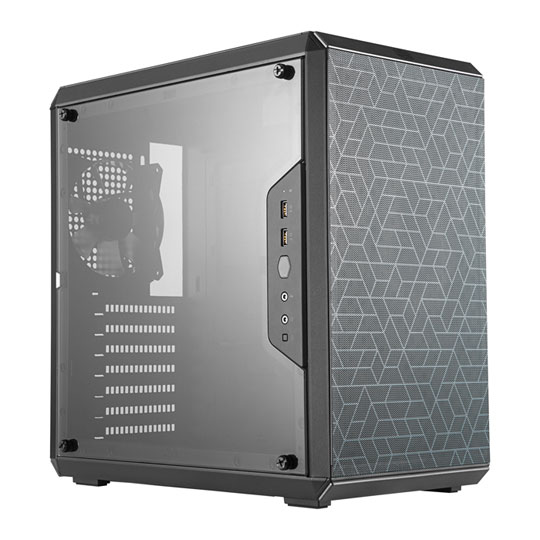

CoolerMaster MasterBox Q500L Compact Windowed Midi ATX PC Gaming Case

Cooler Master MasterBox Q500L, Black, Mid Tower PC Case w/ Acrylic Side Window, ATX/MicroATX/Mini-ITX, 120mm Fan, USB3.0

Thumbnail 1 : CoolerMaster MasterBox Q500L Compact Windowed Midi ATX PC Gaming Case Thumbnail 2 : CoolerMaster MasterBox Q500L Compact Windowed Midi ATX PC Gaming Case Thumbnail 3 : CoolerMaster MasterBox Q500L Compact Windowed Midi ATX PC Gaming Case Thumbnail 4 : CoolerMaster MasterBox Q500L Compact Windowed Midi ATX PC Gaming Case
Scan code: LN97897 Manufacturer code: MCB-Q500L-KANN-S00
£49.99Item due on 24 July 2020
Due 24th Jul
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

MasterBox Q500L – Compact Mid-Tower ATX PC Gaming Case from Cooler Master

Cooler Master MasterBox Q500L Gaming PC Case

BUILD THE PERFECT PC IN A COMPACT FORM The MasterBox Q500L proves itself as the most versatile, modern case on the market. Offering support for a standard ATX motherboard and PSU in an incredibly compact layout, this support was made possible by maximizing the usage of internal space inside this innovative design. Across the Q series as well as the Q500L, this case offers a moveable I/O panel and support for different layouts, along with a perforated exterior so you'll always maximize your cooling potential. See inside your case with the crystal-clear acrylic side panel, and always keep your case clean with magnetic dust filters. Build a system like no other, with the option for either a vertical or horizontal orientation, and enjoy clean routing space for an aesthetically perfect build. The Q500L also offers vertical PSU placement, which allows you to fully utilize the internal space inside your system.

Display your Components behind a Stunning Panel

q500l acrylic panel

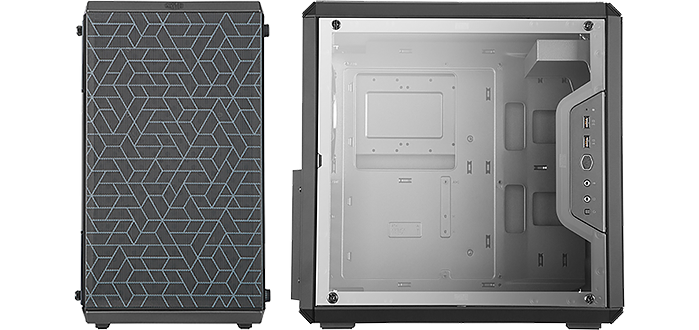

EDGE-TO-EDGE ACRYLIC SIDE PANEL The Q500L has a compact form, but despite the depth and height of only 386mm x 381mm, this adaptive case can accommodate a normal ATX PSU, delivering the highest performance out of a compact machine. You can see it all in action behind the Q500L's sleek acrylic side panel, which goes from one edge of the case to the other for a completely seamless look.

Craft a One-of-a-Kind System

Cooler Master Q500L I/O panel

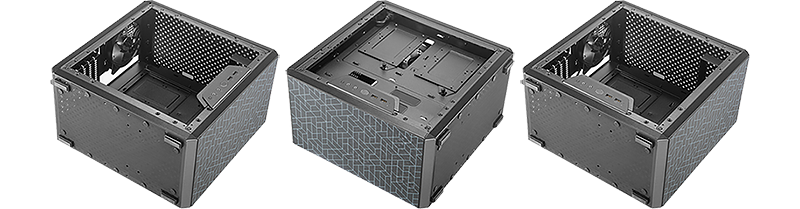

HIGH FLEXIBILITY FOR CUSTOM BUILDS The adaptive I/O panel can be adjusted to multiple locations giving you complete control over the layout over your PC and giving you the option to configure it however you want. You can install the I/O panel at the front, top or bottom to best suit your components and greatly improve accessibility. You can also orient the case to sit either vertically or horizontally, with rubberized thumbscrews that can also act as feet, allowing you to place your case and internal components any way you like.

Optimized for any Kind of Cooling

Cooler Master Q500L perforated material

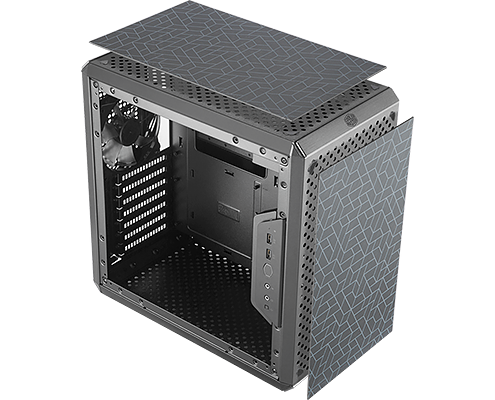

PREMIUM PERFORATED EXTERIOR MATERIALS The Q500L has been designed with efficient perforated panels. The top, front, rear and bottom panels are fully perforated to offer the best possible airflow for any fan and component layouts, giving you the greatest performance however you decide to create your system. This design choice makes your cooling more effective but also adds a unique aesthetic to your case.

Add Additional Cooling Solutions to your Rig

Q500L Fan and Radiator Fittings & Sizes

EXTENSIVE FAN AND RADIATOR SUPPORT The Masterbox Q500L adds further versatility with the ability to add numerous fans and radiators to your rig. The top supports up to two 120/140mm fans or a 120/240mm radiator, with the rear supporting a 120mm fan or radiator. The bottom additionally supports two 120mm fans, proving that the Q500L never falls short on cooling performance.

Keep your PC On-Point with Dedicated Storage Space

Cooler Master Q500L Component compatibility

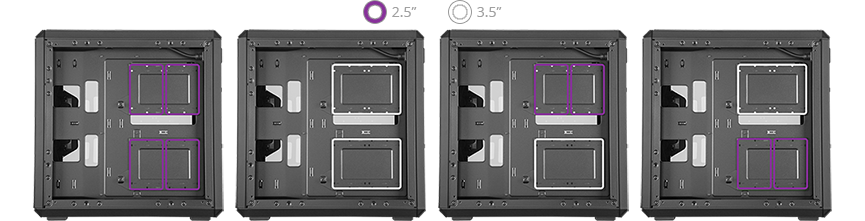

VERSATILE SSD & HDD SPACE Each storage caddy on the Q500L can mount either 2 x 2.5" drives or 1 x 3.5" drive. There are two caddies included and are four different configurations you can choose from to suit your system.

4 x 2.5" drives | 2 x 3.5" drives | 2 x 2.5" drives + 1 x 3.5" drive

Never Hold Back when Choosing Components

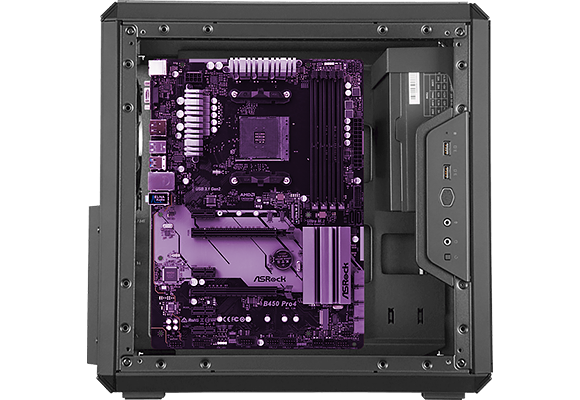

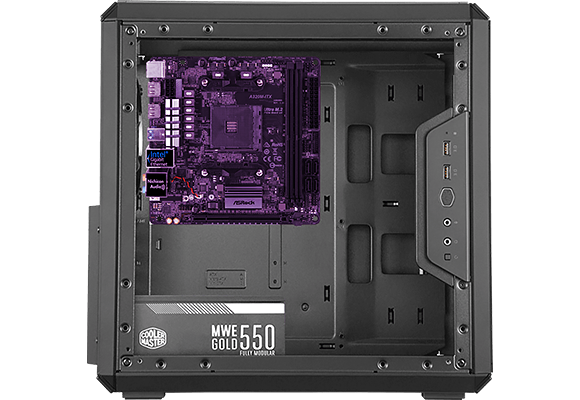

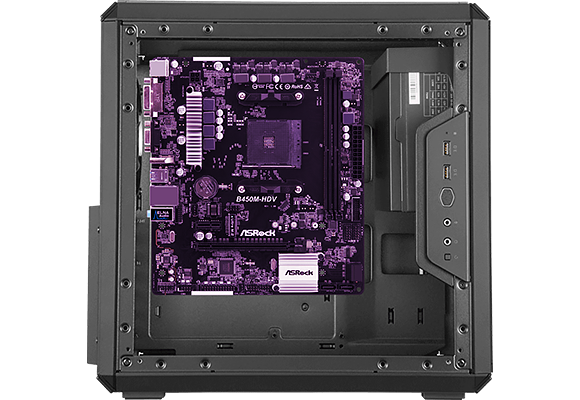

SUPPORT FOR VARIOUS MOTHERBOARDS The internal layout and PSU location on the Q500L adapts to your motherboard. If a standard ATX motherboard is needed, the PSU can be mounted to the top-front of the case with the ability to shift up or down. For Mini-ITX builds, the PSU can be located in the conventional bottom-rear position for additional front panel ventilation.




Stow Away Cables for a Pristine-Looking Build

Cable routing

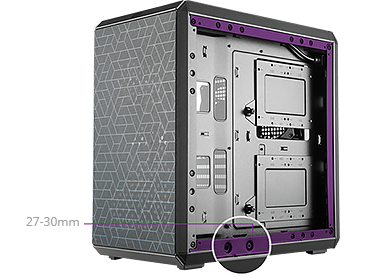

DEDICATED CABLE MANAGEMENT SPACE Behind the motherboard tray on the Q500L, 27-30mm width of space is offered for cable management, with the entire perimeter of the case being a dedicated channel for cables.

Adapt different Options for your System

vertical psu bracket

MOVEABLE PSU BRACKET The PSU bracket lets the PSU adapt to different clearance requirements and motherboard sizes. The PSU bracket on the Q500L can shift up or down for top radiator/graphics card clearance, and can also be relocated for ITX systems.

Enjoy a Dust-Free Gaming System

q500l filters

EASY-TO-CLEAN MAGNETIC DUST FILTERS The Masterbox Q500L houses magnetic dust filters with a unique design. Magnets allow for quick removal and installation and make cleaning even easier. The filters come with rubber stompers to prevent sliding and to keep them in perfect position.

Core Chassis Specifications
Case Edition MasterBox Q500L
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 3 x 120mm
  • 2 x 120mm / 2x 140mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters Bottom
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 160 mm
Max GPU Card Length 270/360 mm
Cable Routing Space 27~30mm Behind Motherboard Tray mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Acrylic
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Top Mount, Front
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic
Dimensions 230 x 381 x 386 (WxHxD mm)
Weight 3.83 kg (Approx)
Please Note *270mm GPU clearance when PSU exceeds 160mm
Additional Information
Scan Code LN97897
Model Number MCB-Q500L-KANN-S00
GTIN 4719512080580

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
0871 472 4747
Loading Please Wait

Please wait . . .

Questions & Answers

Will an ATX mobo fit in this case with Corsair Hydro x100 radiator and fans

Looking at bundle LN100071 and this case. Want a compact system with liquid cooling. Can't see where radiator would go with ATX mobo and MSI RX5700 XT MECH in case. Any thoughts?
