Scan code: LN110655 Manufacturer code: MCB-NR200P-WGNN-S00

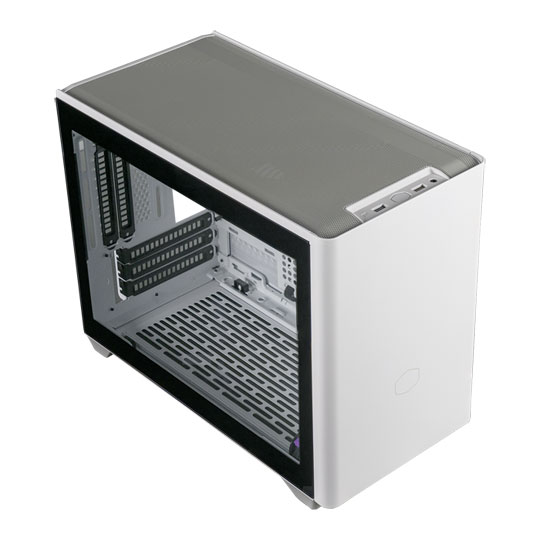

Cooler Master MasterBox NR200P Tempered Glass Micro-ATX PC Gaming Case

Cooler Master MasterBox NR200P, White, Mini Tower w/ Tempered Glass Window, 2x 120mm Fans, USB 3.2 Gen1, mITX/mDTX

Thumbnail 1 : Cooler Master MasterBox NR200P Tempered Glass Micro-ATX PC Gaming Case Thumbnail 2 : Cooler Master MasterBox NR200P Tempered Glass Micro-ATX PC Gaming Case Thumbnail 3 : Cooler Master MasterBox NR200P Tempered Glass Micro-ATX PC Gaming Case
Scan code: LN110655 Manufacturer code: MCB-NR200P-WGNN-S00
£89.99Item due on 30 November 2020
Due 30th Nov
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Suggested alternatives
Product Overview

Style Without Sacrifice

The MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilises space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-litre space to maximise component compatibility, thermal efficiency, and ease of assembly.

Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilise the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centrepiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.


Limited Size, Unlimited Options

The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.


Unrestricted Cooling Potential

The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can’t be held back.


Triple-Slot GPU Support and Included Vertical Riser Cable

Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.


Easy, Tool-Free Access

All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.


360 Degree Accessibility

Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.


High Quality Materials

Thick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh travelling conditions


Out-Of-The-Box Custom Cooling Support

Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.


Multiple Motherboard Support Options

Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.


Customisation

During the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought "why not share the iterations with our users?" The team unanimously agreed with this direction.

As a result, end users can 3D print a selection of different shapes and sizes, and even choose the colour based on the filament they print with.

Features

• Limited size, unlimited options.
• Unrestricted cooling potential.
• Triple-slot GPU support and included vertical riser cable.
• Easy, Tool-free access.
• 360 degree accessibility.
• Multiple motherboard support options.
• Out-of-the-box custom cooling support.
• High quality materials.

Specifications
Core Chassis Specifications
Case Edition MasterBox NR200P
Case Form Factor Mini-ITX
Motherboard Form Factor
  • Mini-DTX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HD Audio
  • 2 x USB 3.2 Gen1 Type-A
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 3.5" / 2x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots 3
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120mm
  • 2 x 120mm / 1x 140mm
  • 1 x 92mm
Fans Included 2 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Side
  • Top
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility 1 x 120/240mm
Rear Radiator Compatibility
Side Radiator Compatibility 1 x 120/140/240/280mm
Clearances
Max CPU Cooler Height 153, 76 (GPU in vertical position) mm
Max GPU Card Length 330 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support SFX / SFX-L
PSU Mounting Location Front Mount
Max PSU Length 130 mm
Chassis Physical Specifications
Colour White
Chassis Contruction Materials Steel / ABS Plastic / Tempered Glass
Dimensions 376 x 185 x 292 (WxHxD mm)
Weight 5.1 kg (Approx)
Please Note Side dust covers included for both sides.
Additional Information
Scan Code LN110655
Model Number MCB-NR200P-WGNN-S00
GTIN 4719512074640
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Telephone:
0871 472 4747
