Scan code: LN93088 Manufacturer code: MCB-B511D-KGNN-RGB

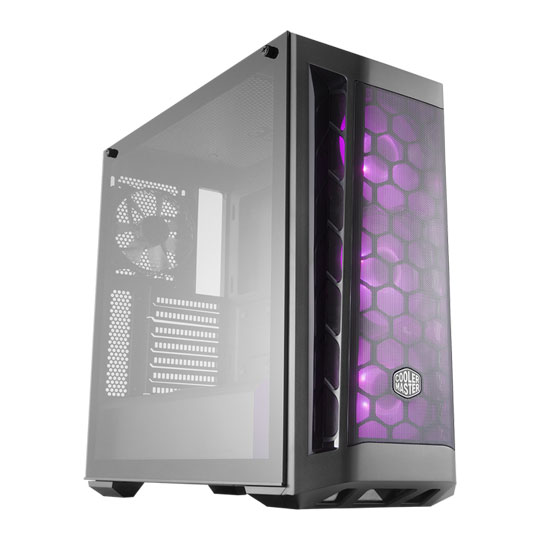

Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case

Cooler Master MasterBox MB511 RGB, Tempered Glass, 4x 120mm Fans, Radiator Support, ATX/MicroATX/Mini-ITX

Thumbnail 1 : Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case Thumbnail 2 : Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case Thumbnail 3 : Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case Thumbnail 4 : Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case Cooler Master MB511 RGB Tempered Glass Midi PC Gaming Case : video thumbnail 1
Scan code: LN93088 Manufacturer code: MCB-B511D-KGNN-RGB
£61.49Item overdue since 25 November 2018
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview With the MasterBox MB511 RGB, systems built for high demand gaming can breathe easy through the mesh front panel. Along with the aggressive intakes in front, there is also ventilation on top for added thermal support. Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect. One RGB controller is included in the accessory pack. You can connect the RESET button and control the RGB lighting directly from the I/O if your MB does not support the RGB control function. Graphics cards might be getting larger and wider over time, but with 410mm of accommodating space, build worry-free with the MasterBox MB511 RGB. FeaturesMesh Front Panel: Offers efficient airflow for demanding systems with the mesh front panel.
Performance Intake: Large intakes on each side of the front panel pay tribute to high performance cars.

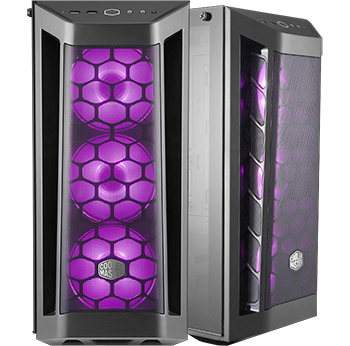

RGB LED Fans: Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
RGB Lighting Control: One RGB controller is included in the accessory pack. If your MB does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.

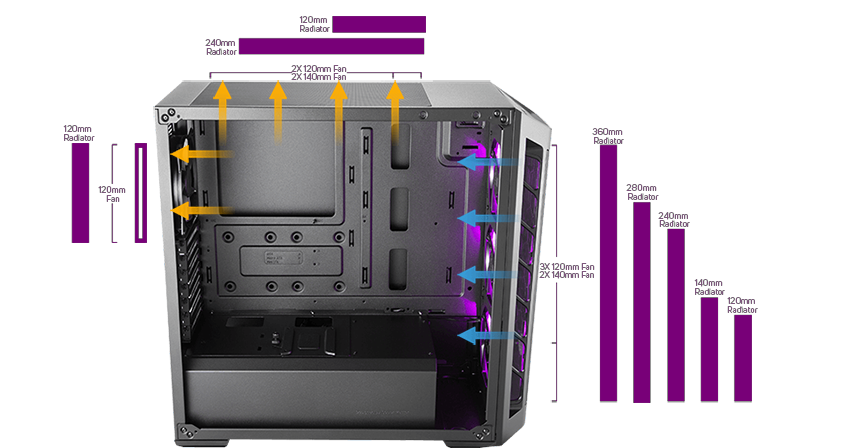

Fans & Cooling Support: Support for a total of six 120mm fans, front, top and rear radiator placement ensures that you don’t have to compromise on performance.
Graphics Card Support Up To 410mm: You won't ever have to worry about the fit of your graphics card with support for even the largest, widest cards.

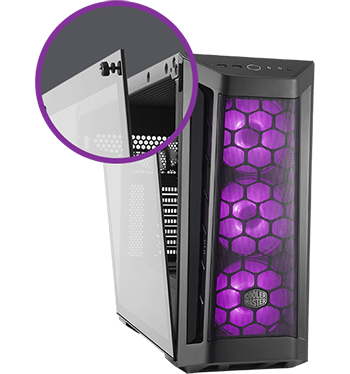

Edge to Edge Tempered Glass Side Panel: Showcase your build and system lighting effect through 4mm thickness tempered glass side panel. The side panel bracket hinges on an angle during removal, while two “captive” screws are held in place with rubber, so they are not misplaced.

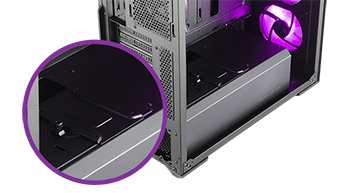

SSD Bracket: Mount an extra SSD on the PSU shroud for more storage.
Specifications
Core Chassis Specifications
Case Edition MasterBox MB511 RGB
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX (Upto 272mm)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 5 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 2 x 120/140mm
  • 1 x 120mm
  • 3 x 120mm / 2x 140mm
Fans Included
  • 1 x 120mm
  • 3 x 120mm w/ RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 410 mm
Max GPU Card Width
Cable Routing Space 19mm
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included LED Fan/s
LED Lighting Colour RGB (16.7 Million Colours)
LED Lighting Support & Control
  • Compatible with ASRock PolyChromeSync
  • Compatible with ASUS AURA Sync
  • Compatible with Gigabyte RGB Fusion
  • Compatible with MSI Mystic Light Sync
  • Control via Compatible Motherboard RGB Header
  • Control via Inc. Controller/Hub (Buttons/Switches)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic / Tempered Glass
Dimensions 217 x 469 x 496 (WxHxD mm)
Weight 7.04 kg (Approx)
