Scan code: LN90769 Manufacturer code: MCB-B511D-KANN-S01

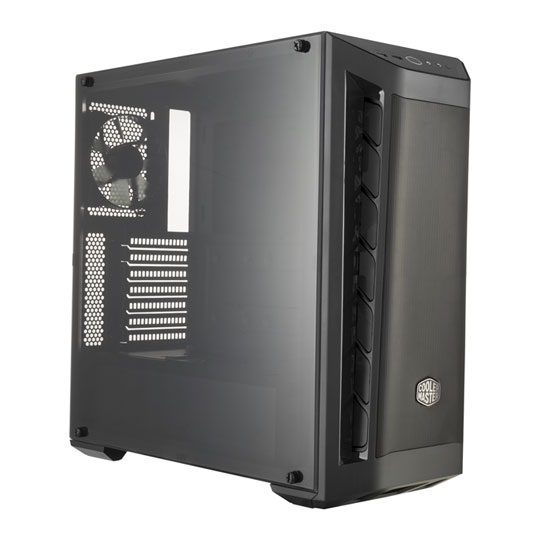

CoolerMaster MasterBox MB511 Black Windowed Midi PC Gaming Case

Cooler Master MasterBox MB511, Black Trim, Mid Tower PC case, with Side Window, ATX/mATX/mITX, 120mm Fan, USB 3.0

Scan code: LN90769 Manufacturer code: MCB-B511D-KANN-S01
£55.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview With the MasterBox MB511, systems built for high demand gaming can breathe easy through the mesh front panel. Along with the aggressive intakes in front, there is also ventilation on top for added thermal support.

Graphics cards might be getting larger and wider over time, but with 400mm of accommodating space, build worry-free with the MasterBox MB511.

The chassis and PSU shroud are powder-coated in black to help compliment your build while the edge-to-edge transparent side panel shows it off. Features • Mesh Front Panel: Offers efficient airflow for demanding systems through the mesh front panel.
• Aggressive Intakes: Large intakes on each side of the front panel pay tribute to high performance cars.
• Cooling Support: Support for a total of six 120mm fans, and front, top and rear radiator placement ensures that you don’t have to compromise on performance.
• Graphics Card Support Up To 400mm: You won't ever have to worry about the fit of your graphics card with support for even the largest, widest cards.
• Edge to Edge Transparent Side Panel: Showcase your build through the transparent side panel.
• Full Black Coating & PSU Cover: Let your system stand out with an all-black background.
Specifications
Core Chassis Specifications
Case Edition MasterBox MB511
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX (Upto 272mm)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x HDD Activity LED
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power Button with LED
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 5 x 2.5" Internal
  • 2 x 2.5"/ 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120/140mm
  • 1 x 120mm
Fans Included 1 x 120mm
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
  • Top
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 165 mm
Max GPU Card Length 400 mm
Max GPU Card Width
Cable Routing Space 19mm Behind Motherboard Tray
Side Panels
Window/s Yes
Window Configuration 1 x Main Side
Window Construction Plastic
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length 180 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Plastic
Dimensions 217 x 469 x 496 (WxHxD mm)
Weight 5.32 kg (Approx)
Please Note 75mm Clearance for Front Radiator
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
