Scan code: LN53496 Manufacturer code: RC-130-KKN1

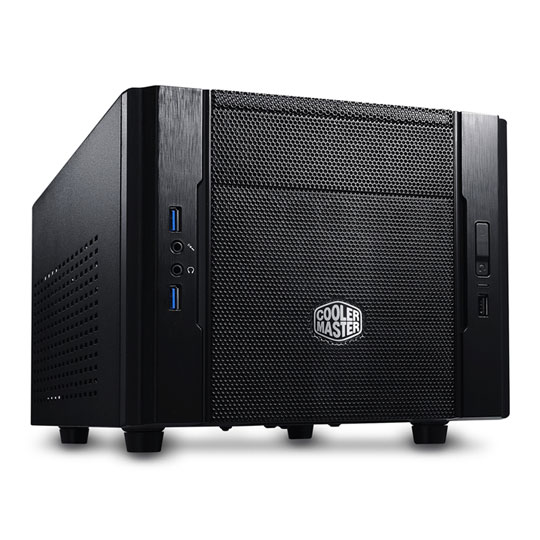

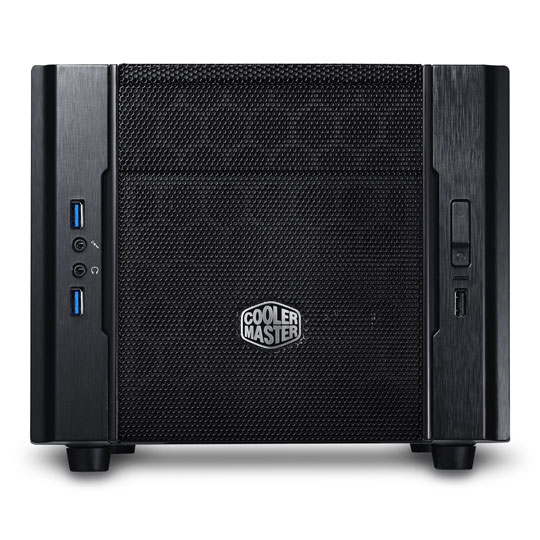

Cooler Master Elite 130 Mini ITX Case

Cooler Master Elite 130 Black mini-ITX Cube Case with Full Size VGA Support 343mm, USB 3.0 w/o PSU (Std ATX)

Thumbnail 1 : Cooler Master Elite 130 Mini ITX Case Thumbnail 2 : Cooler Master Elite 130 Mini ITX Case Thumbnail 3 : Cooler Master Elite 130 Mini ITX Case
Scan code: LN53496 Manufacturer code: RC-130-KKN1
3xs Approved
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Feb to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Elite 130 Mini ITX PC Case from Cooler Master

elite 130 mini itx case

EXCELLENT PERFORMANCE IN A COMPACT FORM The Elite 130 is a Mini-ITX case that allows you to craft a high-performance system in a compact, space efficient form. It offers unprecedented airflow with a mesh panel on the front along with vents on the top and side, and even supports a 120mm radiator in the front. Utilize ample storage with room for up to one ODD, three HDDs or five SSDs, and even fit in a standard length ATX PSU to power up your system. The I/O panel supports dual USB 3.0 ports for super-speedy data transfers, and you can also house a graphics card up to 343mm. With the Elite 130 the possibilities are endless.

Exceptional Cooling Properties


FAN OPTIONS The Elite 130 comes with a 120mm fan included in the front (A) that can be removed and can house a 120mm radiator (B), and it also includes a small 80mm fan on the side (C) for additional cooling. The 80mm fan is also removable.

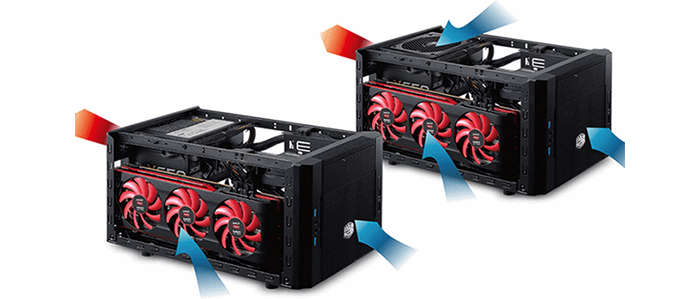

AIRFLOW PATHS Cool air is taken in from the front fans and projected through your PC then hot air is released from the back. Air also comes in via the GPU fans and PSU fan to give you optimized cooling in this tiny case.

Craft a Space Efficient System

elite 130 features

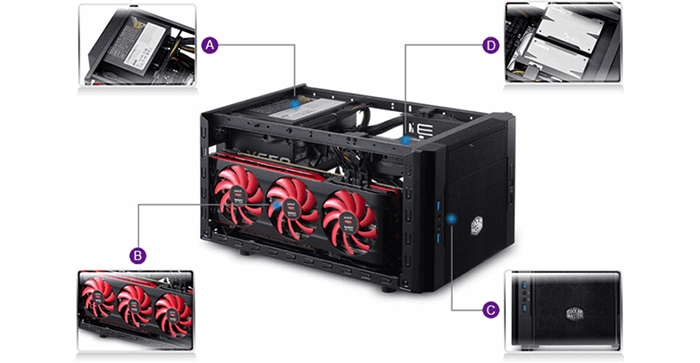

FEATURES OF THE ELITE 130 The Elite 130 case is incredible when it comes to using space efficiently and being versatile. You can house a full sized ATX PSU to power your system (A) along with VGAs up to 343mm for your graphics (B). It also offers impressive room for a wealth of different storage devices, (up to 1 ODD, 3 HDDS and 4 SSDs) along with the front panel offering super-fast USB 3.0 ports for peripherals or other devices.

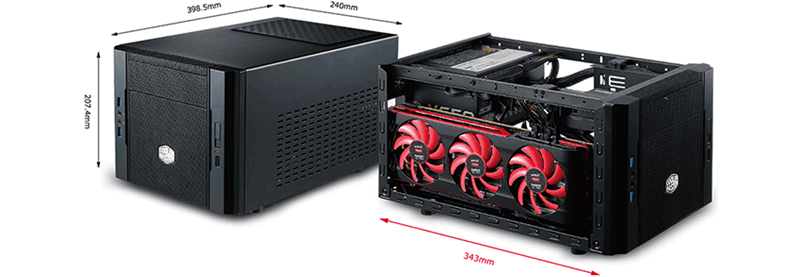

Dimensions of the Elite 130 PC Case


Core Chassis Specifications
Case Edition
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 4 x 2.5" Internal
  • 3 x 3.5" Internal
  • 1 x 5.25" External
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 1 x 120mm
  • 1 x 80mm
Fans Included
  • 1 x 120mm
  • 1 x 80mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height
Max GPU Card Length
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Plastic / Steel
Dimensions 240 x 205 x 377.5 (WxHxD mm)
Please Note
Additional Information
Scan Code LN53496
Model Number RC-130-KKN1
GTIN 4719512045176

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details

Additional Notes:
2 Years Direct Manufacturers Warranty

Loading Please Wait

Please wait . . .

TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Cooler Master Elite 130 Black mini-ITX Cube Case with Full Size VGA Support 343mm, USB 3.0 w/o PSU (Std ATX) is rated 4.8 out of 5 by 8.
Rated 5 out of 5 by from The most versatile compact option. THE DOWNSIDE. 1. Not much to look at. 2. Limited space for the CPU cooler. THE UPSIDE. 1. Air cooling is fine up to at least 60W TDP and there is space for a 120mm radiatior at the chassis front. 2. Space for a full length GPU with good air feed. 3. Uses standard size ATX PSU. 4. Can hold multiple drives including a full sized optical drive. 5. Well made.
Date published: 2016-05-28
Rated 4 out of 5 by from Nice exterior and good construction This is a good mini case but is time consuming and fiddly to build due to its size but well worth the effort. Would use again
Date published: 2015-12-04
Rated 5 out of 5 by from Small case with enough space for decent gaming rig If you are looking for a mini ITX case,this is the one.Its cheap,got space for a large graphic card build quality is good.You can put a large full size ATX power supply.I got my old Corsair HX1050 inside of this small case :) I recommend to use a liquid cooling like Corsair H55 for the cpu because psu sits just about 4cm above the cpu socket so there is not much space for the traditional cpu cooler.In front of the case is enough room for a thick radiator.I got Corsair H80 in my build (it about 40mm thick)in push-pull config :) if you dont put any hdd or ssd between motherboard and front of the case you will have about 9 inches of free space :)
Date published: 2014-02-06
Rated 5 out of 5 by from Very nice case Compact in terms of height and depth, great build quality. Only compromise is that you need a mini itx mainboard. Takes a full size atx psu and graphics card and optical drive. Internal drive options are good with 3 shared points that can take either ssd or 3.5"drive (one shared with optical that can take two ssd or one 3.5") and two dedicated ssd points (one under optical bay and one in place of side fan).
Date published: 2014-01-16
Rated 4 out of 5 by from It's a box... ..into which I assembled a computer. It does exactly what it says on the... er... box!
Date published: 2014-01-13
Rated 5 out of 5 by from What a brilliant Case Design I needed a flexible design of ITX case that would allow me to use a Fullsize PSU, Watercooling for the CPU, Fullsize Optical Drive and three 2.5inch format Drives and SSD Devices. This case did it all and still allowed me to keep all the cabling tidy to ensure good airflow. It really does do what it says on the box
Date published: 2013-12-23
Rated 5 out of 5 by from Small cube but big enough for full size components The new Elite 130 looks great in the pics and sounds perfect in all the reviews It's a well thought out design and a very adapatble case with great looks - apart from the PSU at the back - and very well finished inside and out I removed the side fan and fitted the SSD on the side plate and a 3.5" HD in the top bay and another on the base floor - lots of other options are availible A great case and a lot of fun to build into a small home or office PC or anything a mini ITX board will allow I would suggest a modular PSU and I looped and tucked the cable runs down the side rails and sucked the air up off the MB and out the back with the PSU
Date published: 2013-11-18
  • y_2020, m_2, d_22, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_GB, sid_53496, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

can i

can i put my msi H61m-p31/w8 mobo and gtx 780 in this as im aiming for a steam like machine
Asked by: superman
NO. That motherboard is "Micro ATX" size and so too large.
Answered by: Dalbriksson
Date published: 2016-05-28

Whats the Max Size for the PSU??

Or any suggestions for PSU fully modular.
Asked by: Boon2k
Hello, This supports standard length ATX PSU's. Regards,
Answered by: LizN
Date published: 2017-02-18

Will this case fit a standard Intel Heatsink?

From an i5 6500
Asked by: DanL94
Hello This should be fine to work, the stock coolers are roughly 50mm in height whereas this case supports upto 65mm. Regards,
Answered by: LizN
Date published: 2016-11-09
