Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable 1M
End Of Life
Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable 1M
Scan code: LN85428 Manufacturer code: CAC-2067
End Of Life

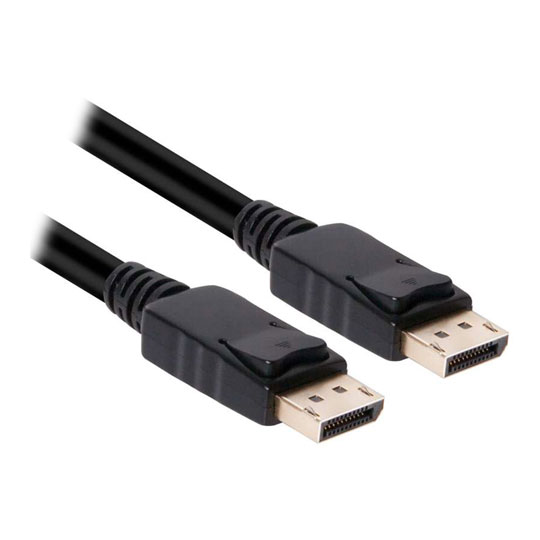

  • Thumbnail 1 : Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable 1M
  • Thumbnail 2 : Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable 1M
End Of Life

Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable 1M

1M Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable, Locking Latches, 28AWG, Backwards Compatible, Black
MORE INFO
MORE INFO

Scan code: LN85428 Manufacturer code: CAC-2067
End of life
This product is no longer available to purchase. See our suggested alternatives below.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

Product Overview

DisplayPort 1.4 to DisplayPort 1.4 M/M 1m/3.28ft

This fully bi-directional cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device.

DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.

It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.

Features
• Fully DisplayPort™ Version 1.4 Compliant, HBR3, 32.4Gbps.
• Support for Display Stream Compression (DSC) 1.2.
• Support for Forward Error Correction.
• Support for up to 32 Inline Audio Channels.
• Downwards compatible to older DisplayPort standards.
• Support resolutions up to 8K @ 60Hz.

Specification
• Maximum resolution: Using DSC with HBR3 transmission rates, DisplayPort 1.4 can support up to:
- 8K @ 60Hz.
- 4K @ 120 Hz.

• Without compression (DSC) DisplayPort 1.4 can support up to:
- 5K @ 60Hz.

• Connector 1: DisplayPort™ Male.
• Connector 2: DisplayPort™ Male.
Other info
• Plastic Bag size: 215 x 150 x 18 mm.
• Plastic Bag Weight: 6g.
• Cable Weight: 76g.
• Cable height: 12 mm.
• Cable width: 19 mm.
• Cable Size: 1 meter/3.28 feet.
• Meets ROHS, FCC, and CE EMI requirements.
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Club3D
Telephone:
01204-474747
Buying Guide
USB, Thunderbolt and Video Cables
USB, Thunderbolt and Video Cables
Date Issued: 12th Sep 2017

Personal Computers (PCs) connect up to peripherals and displays through myriad of cabling. Some of those names and standards will be familiar to you, such as USB or HDMI, others may not, and these can include standards such as Thunderbolt and DisplayPort. The purpose of this TekSpek is to illuminate and educate users into the different types of cables and standards used in the PC ecosystem.

Read More

1M Club3D DisplayPort (Male) to DisplayPort 1.4 (Male) Cable, Locking Latches, 28AWG, Backwards Compatible, Black is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Works as expected I use it with a DVI to DP active adapter and it work like a charm.
Date published: 2020-02-20
Rated 5 out of 5 by from A capable cable Excellent quality. Secure locking. Easy unlocking. Provides faultless picture to my monitor.
Date published: 2019-03-28
Rated 5 out of 5 by from Black screen no signal issue fixed Great cable that (so far) has completely fixed my black screen no signal issues. Since buying a GTX 1080 and 144Hz Gsync 1440p monitor I have been experiencing regular no signal black screens. I have tried various 'fixes' hoping it was not the cable that was supplied with the monitor; so many that I cannot rememeber or even begin to list them. Unfortunately the turn screen off for 30 seconds black screen 'fix' was not working and I had to use the HDMI connection (thus losing 144Hz and Gsync) to be able to use the screen. The frequency of black outs have increased signficantly so I had no choice but to try a new cable. I have read many articles about displayport cables being a problem regarding bandwidth and 20th pin power versions that can cause issues to the graphics card so decided on this cable as I was informed this was a passive cable (thus not powered) and that the bandwidth would be more than enough for 144Hz at 1440p. After several days of usage I have had zero black screens; the old cable was becoming unusable due to the vast number of blank screens per day during normal Windows usage and intensive gaming. So far so good so would recommend if you are having issues like mine.
Date published: 2018-07-30
