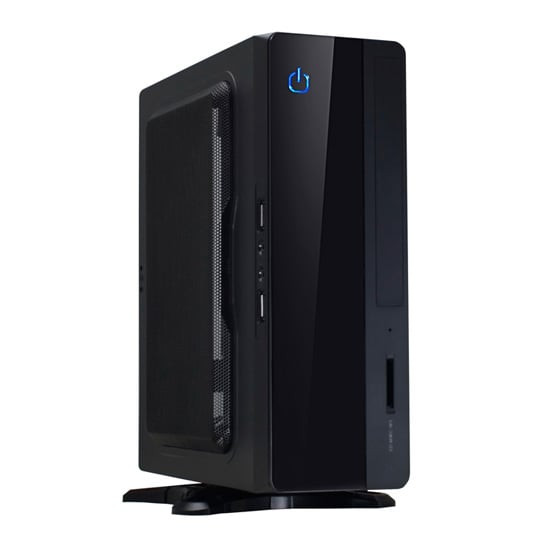

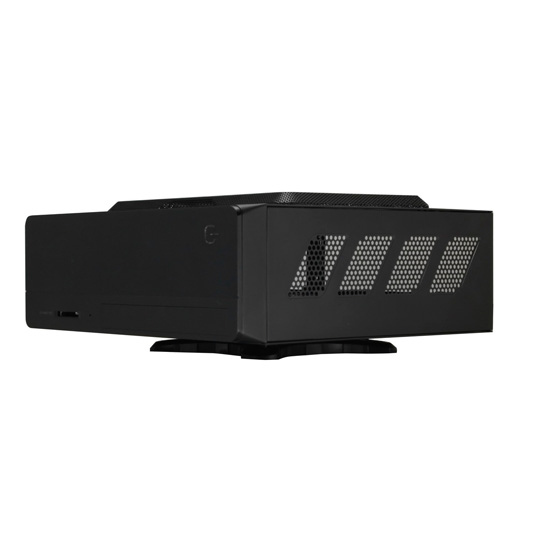

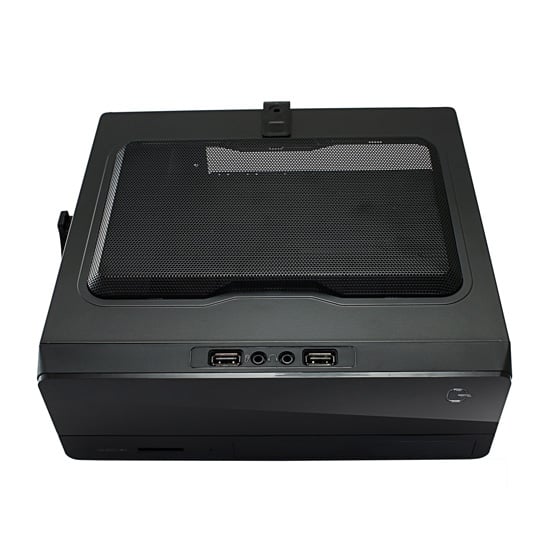

CiT MTX 007B Mini ITX Case with 180W PSU

CiT MTX-007B Black mini-ITX Case with 180W PSU & Black Interior, VESA Mountable

Scan code: LN57275 Manufacturer code: MTX-007B Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range
Delivery options £5.48 By DPD On 24th Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview The CiT MTX-007B is an Ultra Mini iTX VESA Mountable Case. With Space Saving Features, the MTX-007B can be easily mounted on to the rear of your monitor. With a Dual Layer Interior Structure, support for Intel i5 and i7 CPUs, and an internal 180W PSU, the MTX-007B is a fantastic choice for a Mini ITX Mountable Case. Features • Space saving - With a width of the case being 8cm, this can be easily mounted on to the rear of your LCD / LED monitor using the VESA mount (provided), creating more desk space.
• Dual Layer Interior Structure - This case utilises its advanced dual layer interior, allowing for support of a slim ODD, HDD and 3 in 1 card reader.
• Supports i5 /i7 - Fully supports the Intel i5 and i7 CPUs, including the latest Haswell chipset. The mesh side panel offers better cooling.
• Internal or External PSU - Available with either an internal 180W or external 120W power supply unit to better suit your needs.
Case Edition
Case Form Factor Mini-ITX
Motherboard Form Factor Mini-ITX
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 2.0
Drive Bays
  • 1 x 2.5" Internal
  • 1 x Slim Optical
Expansion Slots
Fan Bays
Fans Included None
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor
Max PSU Length
Max CPU Cooler Height
Max VGA Card Length
Colour Black
Dimensions 95 x 245 x 221 (WxHxD mm)
Weight 2.3 kg (Approx)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Customers also bought
CiT MTX-007B Black mini-ITX Case with 180W PSU & Black Interior, VESA Mountable is rated 4.0 out of 5 by 2.
Rated 4 out of 5 by from Very good for optical drive and desktop CPU This case has a divider, so that the ITX mainboard and CPU can vent through the top grill without having the optical or other drives in the way. Drive bays are on the other side, 'underneath' the motherboard. For 'bangs-per-buck', I decided to use a standard 65w Intel CPU, so good ventilation was a consideration. I was tempted to go for a prebuilt (mobile-CPU-based) solution instead (e.g. an Intel NUC), but if the user still likes to load music or video disks this case makes for a good all-round system, and one that you can more easily reconfigure or repair yourself when need be. You do need a clover-leaf power connector for this case's power socket, but I had a couple left over, from old laptops.
Date published: 2017-08-30
Rated 4 out of 5 by from Cracking little case Really happy with this. I put some research into a compact Mini ITX case - this was my personal favourite. A couple of reviews on amazon really helped me as well. A few points I learned: This case uses a 'cloverleaf' power cable into the PSU and there isn't one in the box (so you'll need to buy one). The VESA mount can be swapped between the bottom and the side clips and provides a really stable foot. Be really careful with the cables from the PSU and where they will sit (I had a stray wire that was catching the CPU fan after I put the side back on the case). Fan isn't too noisy at all(not silent though). Really like this thing! Would buy it again.
Date published: 2014-06-13
  • y_2018, m_1, d_22, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_57275, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Internal or External PSU?

The description states that the unit comes with either an internal or external PSU, which of these does this particular case come with?
Asked by: FriendlyGeek
Mine came with internal. I did see a similar unit in my travels - grey version that used an external.
Answered by: OneAmongMany
Date published: 2015-07-17

CPU Cooler

Hi. Please could you tell me what is the maximum CPU cooler height that can be installed into this case. Thank you
Asked by: robgee1964
Hello, Sorry I have not been able to locate this information Thanks
Answered by: LizN
Date published: 2015-10-17
