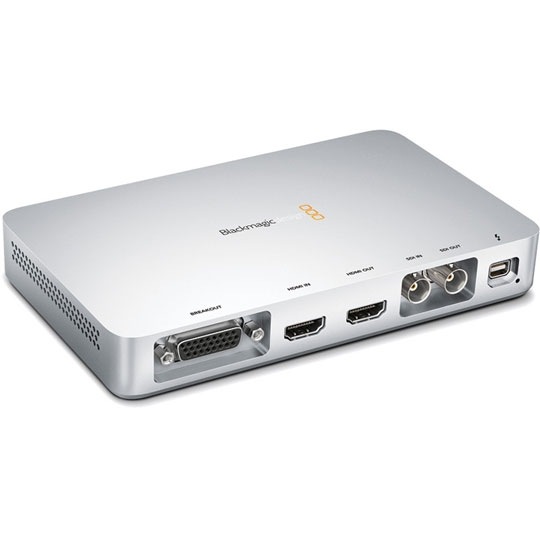

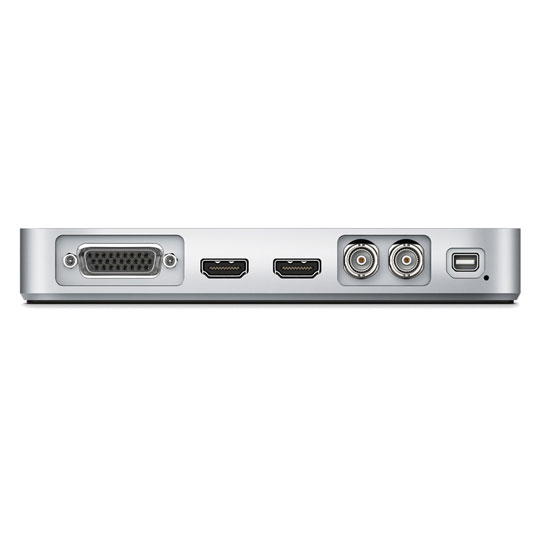

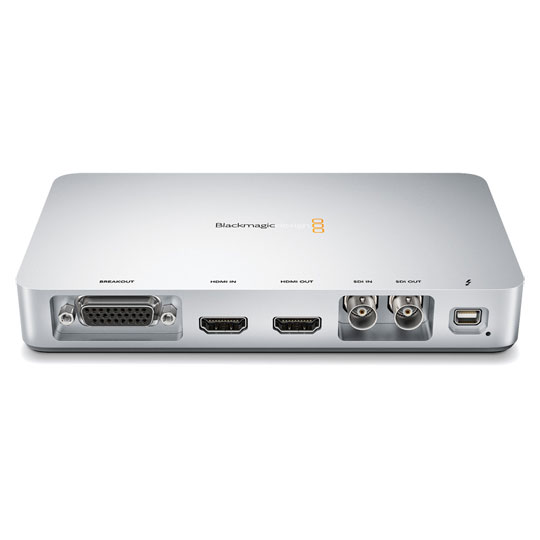

Blackmagic Design UltraStudio Express with Thunderbolt

BLACKMAGIC UltraStudio Express

Blackmagic Design
Scan code: LN62556 Manufacturer code: BMD-BDLKULSDEXPRESS Request call
£420.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £10.50 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview UltraStudio Express connects all your professional and consumer video equipment for the highest quality 3 Gb/s SDI capture and playback using Thunderbolt technology. UltraStudio Express has built-in SDI and HDMI connections and comes with the two breakout cables that can be easily swapped when you need to. Breakout cables include analog component, S-Video and composite connections with both BNC and RCA connectors!

Add SDI, HDMI and analogue connections to Thunderbolt computer!
Introducing UltraStudio Express, the worlds most innovative video capture and playback solutions using Intel's new, lightning fast Thunderbolt™ technology! UltraStudio Express is compact, portable and affordable, plus provides the high performance SD/HD capture and playback that Hollywood film, broadcast television, and post production markets demand.

The Power of Thunderbolt™
Built on revolutionary Thunderbolt™ technology, UltraStudio has a blazingly fast 10 Gb/s connection thats up to 20 times faster than USB 2.0. Thats enough bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization, making the UltraStudio 3D ideal for demanding stereoscopic 3D workflows. Now you can work with all the video formats you need, conveniently on your desktop or notebook computer!

World's Highest Quality Connections
UltraStudio connects to anything as it includes 3 Gb/s SDI, HDMI and analogue video connections.

Use any Video Software!
UltraStudio is fully compatible with your favorite editing software such as Final Cut Pro, Media Composer 6 and Premiere Pro. For compositing and broadcast design, UltraStudio works with After Effects, Nuke, Photoshop and much more!

Flexible Power
UltraStudio Express is the ultimate portable solution because it powers from the Thunderbolt connection so you don't need a power supply. Simply plug in!

Attractive Portable Design
Machined from a solid block of aluminum, UltraStudio Express features an attractive, rugged design thats packed with features. It's perfect for those on the go as an extremely portable companion for working with the widest range of cameras, computers and favorite video software. Imagine colour grading on set in real time or working with graphics and recording at live events! UltraStudio Express even includes two breakout cables, one with RCA consumer connections and the other with professional BNC/XLR connections with reference and deck control so you can move between consumer and professional video instantly! Features International Power Supply
Standard 12V power supply with international adapters for connection to all power outlets.

Thunderbolt Connection
Get blazing speeds for full resolution real time dual stream 3D capture and playback!

1 x 10 bit SD/HD switchable SDI, 1 x HDMI type A connector, 1 x Component YUV (supports HD and SD) on 3 BNC or RCA connectors switchable to S-Video or Composite, 2 Channels of analogue audio via professional balanced XLR connectors or unbalanced RCA connectors, 2 Channels unbalanced with sample rate converter on BNC connector

1 x 10 bit SD/HD switchable SDI, 1 x HDMI type A connector, 1 x Component YUV (supports HD and SD) on 3 BNC or RCA connectors switchable to S-Video or Composite, 2 Channels of analogue audio via professional balanced XLR connectors or unbalanced RCA connectors
TV Type
Supported TV Standards
HDTV Compatible No
Remote Control No
Media Recorder No
Media Center Compatible No
Teletext No
Radio No
Dual Tuner Compatible No
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
7 days
RTB Period:
12 months
