Blackmagic - 'Camera Fiber Converter'

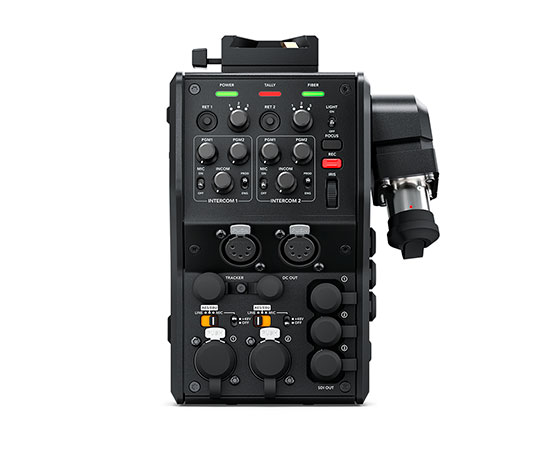

Extend and Fully Power Cameras up to 2km awayThe Blackmagic Camera Fiber Converters attaches to the back of your URSA Mini or URSA Broadcast camera and converts standard television industry connections for video, audio, power, talkback and tally into a single SMPTE fiber optic cable. Allowing cameras to be placed up to 2km away from a studio or outside broadcast truck using a single durable cable. The Blackmagic Camera Fiber Converter adds a familiar broadcast studio camera controls to the rear of the camera, plus additional connections so you can use it with the talkback systems and switchers you already have. Featuring 12G-SDI and designed to work with all HD and Ultra HD formats up to 2160p60 the Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design. Now you can transform professional cameras such as URSA Broadcast and URSA Mini into a complete professional studio camera with all of the features you need for high end work.
Place Cameras Anywhere
Get Cameras much closer to the actionIf you’re working in a studio or out at a large sporting venue, you often need to place cameras far apart. While SDI connections are common, the limited range of SDI makes it hard to use it over long distances. Traditionally, you would need to run multiple cables and expensive extenders for power, talkback, tally, video and audio. This makes set up incredibly complex and increases the chances of a technical problem. Now you can solve this problem by converting all essential connections and power into a single convenient SMPTE fiber cable that can run incredibly long distances. That means cameras can be placed anywhere and connected back to broadcast trucks parked outside of a venue or back to a central control room in a studio. Best of all, SMPTE fiber is a global broadcast industry standard so you can use cables and connection points that are commonly available. Blackmagic fiber converters are also affordable, so traditional broadcasters, new web broadcasters, AV producers, houses of worship and educators can all use the same high end broadcast technology.
SMPTE Fiber for Industrial Strength and Safety
Built in multi layer fail safe instantly cuts power to eliminate dangerBlackmagic fiber converters work with standard SMPTE 311M hybrid electrical and fiber optic cables with standard SMPTE 304 connectors on each end. These cables feature a 2-way fiber pair, data pair and power pair, along with a central strength member that gives it the needed durability for continuous use. Once plugged in, the Blackmagic Studio Fiber Converter automatically performs safety checks and then powers up, sending an industry standard 200 volts of power over the SMPTE cable for the camera and accessories. This means you can install cameras in remote locations without having to worry about power drops over long distances. Both the studio and camera converters at each end have dedicated micro controllers that continuously monitor power status. The converters communicate with each other to ensure that both a stable optical signal is present and that the power supply is operating within safe parameters. If a damaged cable or an earth leak is detected, the power is instantly shut down to eliminate any danger to personnel.
Add Studio Camera Controls

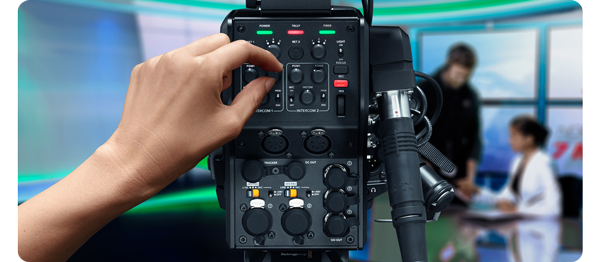

Transform broadcast cameras into dedicated studio camerasStudio cameras are typically operated from the rear of the camera, but broadcast cameras usually have controls on the side of the camera. To solve this problem, the Blackmagic Camera Fiber Converter adds support for SMPTE fiber to your camera along with a wide range of controls and features to the rear of the camera, transforming it into a professional studio camera. You get 2 separate broadcast standard 5 pin talkback connections, 3 return video feeds, 2 extra audio inputs, connections for PTZ and trackers, plus additional DC and D-tap outputs for powering accessories. With all these extra controls added to the rear of the camera, you can operate the camera in the same way as traditional studio cameras.
10G Ethernet for IP Video
Super fast, low latency ethernet link for video, audio and controlThe Blackmagic Camera Fiber Converter and the Blackmagic Studio Fiber Converter use IP video because the SMPTE fiber connection is an open standard 10G Ethernet link. That means all of your video and return feeds are IP video based using high end, lossless broadcast quality 10-bit video encoding and decoding. All other connections such as talkback, tally, camera control and lens control are also converted to low latency IP so you get incredibly reliable performance and high quality. Using IP video means the Blackmagic fiber converters are future proof and ready for customization using high speed Ethernet infrastructure in future.
Two Great Models

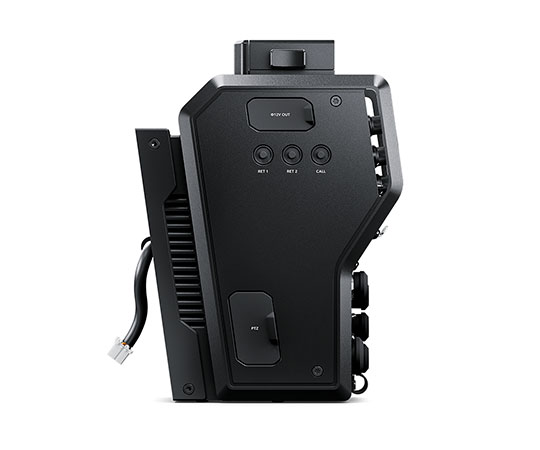

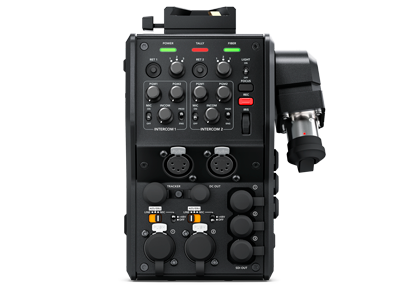

Blackmagic Camera Fiber ConverterThe Blackmagic Camera Fiber Converter attaches to the back of your URSA Mini or URSA Broadcast camera. In addition to converting all of the audio, video, camera control and talkback into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a VLock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more.
Blackmagic Studio Fiber ConverterThe Blackmagic Studio Fiber Converter is used at the other end of your broadcast camera chain back in the studio or outside broadcast truck. It converts signals from the remote camera back into standard television industry connections that can be used with your live production switchers, audio mixers and talkback interfaces. It features a high capacity power supply to drive the cable so it can provide enough power for your camera and any accessories that you might add. The studio fiber converter includes connections for tally, two dual channel intercoms for industry standard 3rd party talkback systems, and even a backup engineering talkback channel in case the fiber goes down. You get a main Ultra HD camera feed plus 3 independent HD return feeds with full remote camera control, PTZ, tracker talkback and ethernet, all through a single SMPTE fiber cable. Plus, there is a large 5 inch LCD screen right next to the SMPTE fiber connection on the front panel for monitoring signals from the remote camera. This allows for easy patching and verification of the remote camera function.
Dual Channel Talkback
Two dual channel talkback
intercoms with backupThe Blackmagic Camera Fiber Converter and Blackmagic Studio Fiber Converter provide 2 dual channel digital talkback connections that are compatible with professional 5 pin XLR talkback headsets. The camera converter even has convenient controls for mixing in program return audio with your talkback headset so you can adjust the volume as needed while talking to the rest of the crew. The talkback intercoms can be used for both production and engineering. In addition, there is a backup channel available for troubleshooting in case the fiber link is down. This backup talkback channel automatically switches over and uses the data pair in the SMPTE cable if the fiber is not working. The Blackmagic Camera Fiber Converter also includes a standard 10 pin connection for tracker talkback, which is perfect when both headset connections are in use and you need to feed an additional talkback connection through to your crane operator.

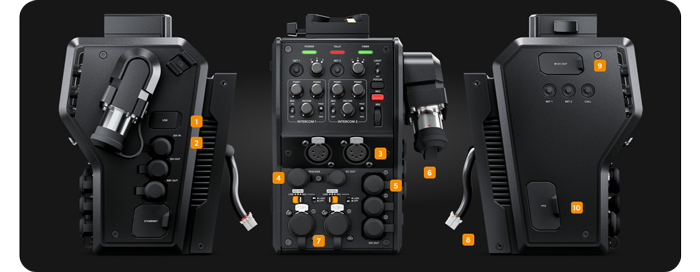

Standard Television Industry Connections
1. USB-C ConnectorThe USB-C port allows you to update internal software.
2. 12G-SDI In/OutConnec the 12G SDI Out from your camera into the 12G SDI In on the Camera Fiber Converter or 12G SDI Out of the converter into the 12G SDI In on the camera.
3. HeadsetsTwo female 5 pin XLR connectors allow you to plug in two headsets.
4. Tracker10 pin hirose connector, which sends out an additional intercom and red and green tally output.
5. SDI OutThree SDI outputs allow you to output the three return feeds coming from the switcher to other equipment via 3G SDI.
6. SMPTE Hybrid Fiber Optic ConnectorUse the Blackmagic Camera Fiber Converter’s male connector to plug in the female end of a SMPTE Fiber cable.
7. XLR Audio InputsPlug in external analog audio from professional equipment such as microphones and audio mixers.
8. Molex ConnectorPlug the molex connector into the molex socket to power your camera from the converter.
9. D Tap Connector+12V Out to power accessories like an external monitor, up to +11.9V to 14V DC at 2 amps.
10. PTZThe 9 pin PTZ connector allows you to connect to a PTZ motorized head.
