Blackmagic ATEM Mini Pro ISO + Davinci Resolve Studio License + Sandisk Professional 1TB G-Drive
Blackmagic ATEM Mini Pro ISO + Davinci Resolve Studio License + Sandisk Professional 1TB G-Drive

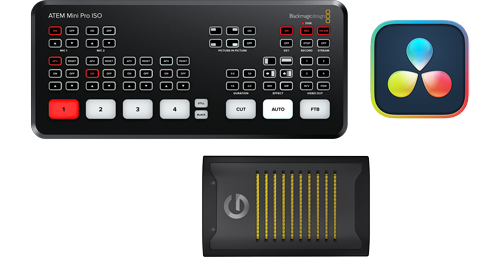

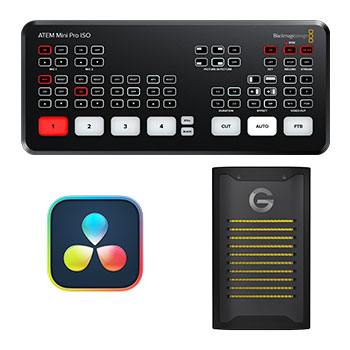

Blackmagic Design - 'ATEM Mini Pro ISO Bundle'
+ DaVinci Resolve Studio + 1TB G-Drive ArmorLock SSD
Low Cost, Live Production BundleThis Bundle provides you with everything you need to create and capture professional multi-camera productions and live streams. The Blackmagic ATEM Mini Pro ISO is easy-to-use 4x HDMI input live switcher with USB webcam out, audio mixer, 2D DVE transitions, chromakey, and more, along with 5 recording streams that include clean input feeds for editing and a DaVinci project file for fast turnaround with the included DaVinci Resolve Studio 19 licence.
DaVinci Resolve Studio 19 is the world's only solution that combines editing, colour correction, visual effects, motion graphics, and audio post-production all in one software tool. Now featuring powerful new DaVinci Neural Engine AI tools and over 100 feature upgrades for Hollywood's #1 Post Production solution.
The SanDisk Professional G-Drive ArmorLock SSD was built from the ground-up with technology to deliver revolutionary data protection that's simple to use and doesn't slow you down. With pro-grade performance and ultra-rugged durability that you can rely on.
Faster Video Production, Plus Live Streaming!
4 HDMI inputs
Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance.
Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!
Self Contained, Broadcast Quality Switcher
INTUITIVE CONTROL LAYOUT
The ATEM Mini Pro's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing!
Exclusive to the ATEM Mini Pro model, is the addition of buttons to allow for recording and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.
Stream Live Interviews
connect multiple camerasGet dramatically better business presentations on Skype because ATEM Mini makes Skype see it as a webcam, so you can select it in the Skype settings! One camera can be a close up, another for a wide shot and a computer for PowerPoint presentations. The presenter can even use picture in picture!
Business Presentations via Skype Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.
Live Stream eSport CompetitionsLive stream eSport competitions to Twitch by simply connecting multiple gaming consoles and a camera for a presenter. ATEM Mini operates up to 60 frames per second for fast gameplay and you can use picture in picture for commentary! You can even download titles from Photoshop!
Kickstarter and Investor UpdatesRaise the professionalism of Kickstarter or investor presentations to fund your new product idea! Connect a camera for the presenter, a camera for a product close up and a computer for business plan slides. Then present live via Skype and post recordings online for investors to view!
Education and TrainingATEM Mini is perfect for educational videos! Setup is fast and easy, so you can travel to locations and record live multi camera video productions on a wide range of educational topics! Connect computers and cameras and use the ATEM Software Panel to load titles and perform video effects.
Live Stream via Ethernet on ATEM Mini Pro
built in Ethernet connectionThe ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup and status, plus streaming status is also displayed in the multiview.
Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can even hack the detailed streaming profiles in the XML preference file and load new services.
Record Direct to USB Flash Disks
trigger recording externallyThe ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo. ATEM Mini Pro supports multiple disks when used with a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording.
Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras!
Add Exciting Video Effects
a wealth of fun effectsOne of the benefits of ATEM Mini Pro is the professional production values that are possible using the range of built in video effects! The cut button ensures an instant cut when switching between sources. The auto button is a professional term that's used on large broadcast switchers to enable video effects transitions. There are duration buttons for video effects allowing 0.5, 1, 1.5 and 2 second settings.
You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip which fades via a color during the transition. Or use fun DVE effects that move the image off screen when transitioning between sources!
Automatically Converts any HDMI Input Format
fluid conversionEach of the 4 HDMI inputs feature their own dedicated standards converter. That means ATEM Mini will automatically convert 1080p, 1080i and 720p sources to the video standard of the switcher! By default the switcher will set its video format automatically, however you can also set the switcher to a specific video standard you need!
The HDMI output is a true "aux" output so you can clean switch each HDMI input or program to this output. You can even "direct" switch input 1 to the HDMI output for low latency eSport productions. If you're using program/preview switching, the HDMI out can be selected to preview, or on the ATEM Mini Pro model, it can be selected to display a full multiview.
Secret Broadcast Features Built In!
free ATEM Software Control app While ATEM Mini Pro is easy to use, it's also hiding very powerful broadcast features! If you're interested in a career in the television industry, then ATEM Mini Pro is perfect for training as it has the same features as switchers in high end broadcast studios. You get an ATEM Advanced Chroma Key, Fairlight audio mixer, DVE, still store for graphics and much more!
Simply run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access the extended features of the ATEM Mini. With a little experimentation you can learn how to produce broadcast quality live production. Only ATEM Mini is a true broadcast switcher hidden in a tiny and affordable design!
Blackmagic - 'DaVinci Resolve 19 Studio'
Professional Editing, Colour, Effects and Audio PostDaVinci Resolve is the world's only solution that combines editing, colour correction, visual effects, motion graphics, and audio post-production, all in one software tool. Featuring a modern, elegant interface that is fast and easy to learn for beginners and professionals alike. Now featuring DaVinci Neural Engine AI tools and over 100 feature upgrades in DaVinci Resolve 19 allowing you to work faster and at a higher quality without the need to learn multiple applications or switch software for each task. By learning DaVinci Resolve, you're learning how to use the exact same tools used by Hollywood professionals.
What’s New in DaVinci Resolve 19DaVinci Resolve 19 features powerful new DaVinci Neural Engine AI tools and over 100 feature upgrades! New AI tools include text based timeline editing, music remixing, dialogue separation and UltraNR noise reduction. IntelliTrack AI lets you use video to track the Fairlight audio panner. ColorSlice vector grading and film look creator offer richer grading vibrance and color density. Plus there are new features for live TV production and broadcast. DaVinci Resolve now supports realtime selection of live camera recordings for instant replay to air with slow motion and stingers. Multi Source is the fastest way to see your cameras and edit to the timeline while the cameras are still recording.
SanDisk Professional - '1TB G-Drive ArmorLock SSD'
Next-Gen Security. New-Gen SimplicityThe G-DRIVE ArmorLock SSD and app have been built from the ground-up with technology that delivers revolutionary data protection that’s amazingly simple to use and doesn’t slow you down. Use the app to unlock and control who gets access to your drive – no password needed. Pro-grade performance and ultra-rugged features give you durability you can rely on. It’s next-generation security, with new-generation simplicity.
ATEM Mini Pro ISO Specifications
Features | Specification | Total Video Inputs | 4 |
---|---|
Total Outputs | 2 |
Total Aux Outputs | 1 |
Total Audio Inputs | 2 x 3.5mm stereo mini jack |
Total Audio Outputs | None, embedded audio only |
Timecode Connection | None |
HDMI Video Inputs | 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio |
Video Input Re-Sync | On all 4 HDMI inputs |
Frame Rate and Format Converters | On all 4 HDMI inputs |
HDMI Program Outputs | 1 |
Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection |
Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection |
