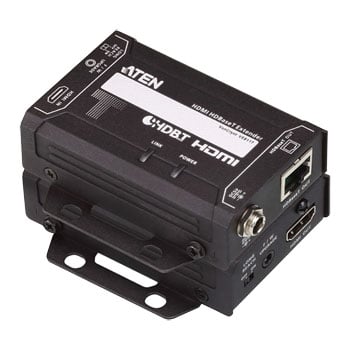

ATEN VE811 HDMI HDBaseT Extender

ATEN HDMI HDBaseT Extender (4K@100m) - VE811

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to 100m via a single Cat 6a cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811 meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It also supports Dolby Digital 7.1ch and DTS HD audio. Pushing the technology and design to its limit, the compact design makes the VE811 easy to mount in any location. Engineered for today’s digital trends, the VE811 is ideal for meeting rooms or any setting that requires high quality HDMI video to be extended for great distances.

HDBaseT Connectivity

This device has the capability to extend 4K HDMI signals up to 100m via a single Cat 6a cable (up to 70m via Cat5e/6). It also supports Long Reach Mode, so it can extend up to 150 m via a single Cat 5e/6 cable at reduced resolutions up to 1080p and also supports widescreen formats.

Meets HDMI Specification

The ATEN HDBase T Extender meets a broad range of desirable specifications - including 3D, Deep Colour and 4K - meaning you can trust the quality of this device to ensure crystal clear transmission. It is also HDCP 2.2 compatible. Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control.

• Bandwidth: 10.2Gbps (3.4Gbps per lane).
• Resolution over Distance: 4096 x 2160 @ 60Hz (4:2:0) or 30Hz (4:4:4), over 70m via Cat 5e/6 or 100m via Cat 6a. 1080p over 100m via Cat 5e/6/6a (150m with Long Reach Mode).

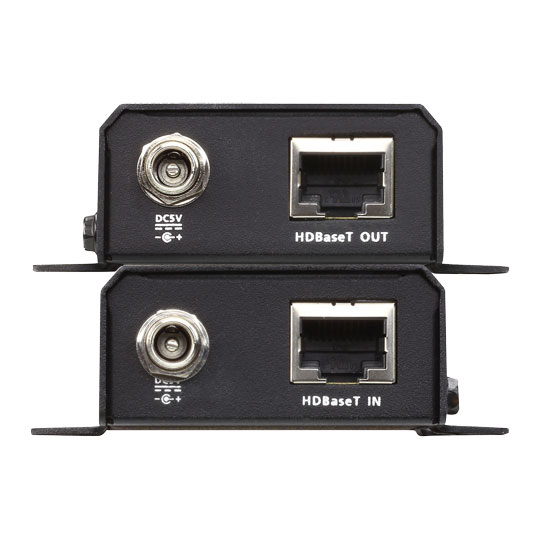

• Connectivity: 1 x HDMI Input, 1 x HDMI Output, 1 x RJ45 (Unit to Unit connection), 1 x Mini Stereo Jack (Firmware Upgrades).
• Dimensions with / without bracket (DxWxH): 8.64 x 7.30 x 2.47cm / 8.20 x 5.20 x 2.37cm.
• Weight: 170g.
• Plug and play – no software required.
• Built-in 8 kV / 15 kV ESD protection.
• Rack mountable.
