Scan code: LN70847 Manufacturer code: CS782DP

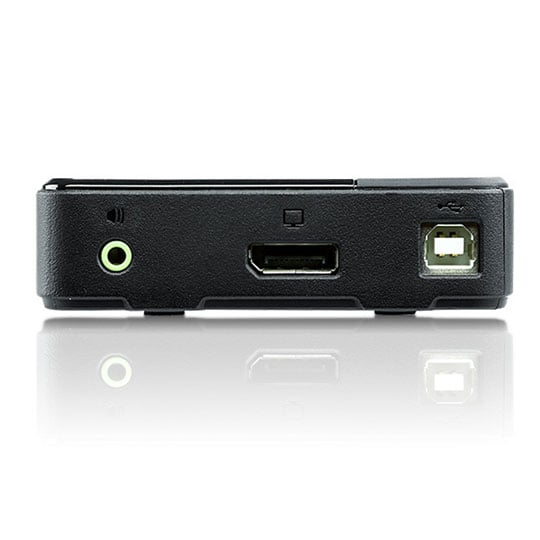

2-Port USB DisplayPort KVM Switch 4K UHD Supported from ATEN

ATEN 2-Port USB DisplayPort KVM Switch, 4K UHD Supported, Remote Port Selector, 2x DP Cables, Black

Thumbnail 1 : 2-Port USB DisplayPort KVM Switch 4K UHD Supported from ATEN Thumbnail 2 : 2-Port USB DisplayPort KVM Switch 4K UHD Supported from ATEN Thumbnail 3 : 2-Port USB DisplayPort KVM Switch 4K UHD Supported from ATEN
Scan code: LN70847 Manufacturer code: CS782DP
Order now and get it tomorrow, Wed 3rd Mar
From £10.91 / month (APR 14.9%)
Monthly Payment: £10.91
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £121.49
Total inc. interest: £130.85
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 3rd Mar to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview 2-Port USB DisplayPort KVM Switch
4K UHD Supported

With the ever-growing demand for higher video quality and the evolution of DisplayPort technology, 4K-enabled computers and displays are now widely adopted in visually-intensive and commercial applications. Offering up to 4K UHD resolution, the ATEN CS782DP is at home amongst these demanding scenarios and technological advancements.

The ATEN CS782DP 2-Port USB DisplayPort KVM Switch features 4K UHD video resolution and allows users to access two 4K-enabled computers from a single USB keyboard, USB mouse, and DisplayPort video console.

Doing so with ease, the CS782DP provides three convenient switching methods – using a remote port selector, mouse, or hotkeys for flexible access to any computer connected to the installation. The product even provides premium audio support for a complete multimedia solution. To round off the entire experience, the streamlined, space-saving design of CS782DP also makes it ideal for any working environment.

With its rich feature set, the CS782DP is designed to surpass all requirements in graphic design, animation, and video-editing applications. Features • One DisplayPort video console controls two USB computers
• Fully DisplayPort 1.2 Compliant
• Computer selection via remote port selector, hotkeys, and USB mouse*
• Superior video quality – up to 4K UHD (3840 × [email protected])
• Multiplatform support – Windows, Mac, Sun, Linux
• HDCP Compliant
• Supports MST (Multi-Stream Transport)**, enabling multiple monitors to be used via a single DisplayPort connector
• Supports DisplayPort Dual Mode (DP++)*** for directly outputting single-link HDMI and or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
• Compatible with widescreen LCD monitors
• Power on detection – if either of the computers is powered off, the CS782DP will automatically switch to the other computer
• Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Supports HD Audio**** through DisplayPort playback
• Independent switching of the KVM and Audio focus**** allows convenient multi-tasking
• Supports multimedia keyboards
• Supports wireless keyboards and mice
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Mac/Sun keyboard support and emulation*****
• USB 2.0 mouse port can be used for USB hub and USB peripheral sharing******
• Bus-Powered
• Firmware upgradable

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
RTB Period:
24 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

ATEN 2-Port USB DisplayPort KVM Switch, 4K UHD Supported, Remote Port Selector, 2x DP Cables, Black is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Really pleased with this running two laptops to ultrawide 1440p @60hz Note* This works out of the box with no firmware updates as have been talked about in previous versions. I'm running two Display Port laptops into a 1440p ultrawide at 60hz without any issues at all. Single USB combo mouse and keyboard works on both again with no issues. It also sends sound through DP so no need for extra wires. You switch it over with a little button on the desk. Works better that the standard scroll lock key combo of traditional KVMs. If you push the refresh to 75hz the screen starts to develop an intermittent flicker every few minutes, but to be honest not many people bar gamers need to run ultrawides at above 60Hz, especially with a KVM getting in the way. No notable input lag between mouse and screen. Change over takes about 2-3 seconds and I am more than happy with it. Very pleased with the device. Worth about £60-80 in an ideal world. Will be buying more for the office but will source at a lower price.
Date published: 2019-05-26
Rated 5 out of 5 by from Amazing piece of kit Bought this so I could switch my Ultra HD iiyama monitor between my Surface Pro 4 and work laptop, an HP Z book with dock. It's compact and well made and came with all the necessary cables. The toggle switch is neat with plenty of cable to allow you to put it where you want it. The installation was a breeze and it works flawlessly switching between the 2 devices in under 10s. The picture quality is perfect, no hint of flicker or interference which cheaper KVM switches are prone to. I wanted to be able to use the Z book as a base station without lifting the lid so I needed a keyboard to plug into the switch. Bought a Microsoft Sculpt wireless desktop. The only issue I had is that the keyboard worked when switching between devices but the mouse didn't. After a bit of research I found that someone had overcome this issue by plugging another older wireless mouse dongle into the other USB port on the switch. Tried it and bingo! Everything works perfectly with mouse and keyboard switching between devices. I can leave the Z book sleeping in the dock and when I need to use it just hit the remote switch and the mouse wakes it up. My home/work setup is now perfect. There are cheaper KVM switches out there but reviews are variable. I'm glad I spent the extra money for an amazing bit of kit.
Date published: 2016-03-28
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_70847, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Support for Ultra Wide monitors

Hi Does the KVM support 3440 X 1440 at 60Hrz?
Asked by: AGB1978
Answered by: Redland
Date published: 2019-07-25

Does this switch support 3440 x 1440 @ 95Hz or 100Hz (Gsync)

The monitor in particular is the Acer Predator X34 - this monitor has Gsync and an overclock function that means I can drive it to 95Hz (some even do 100Hz but not mine sadly). One of the switches I've tried in the past could only handle 3440 x 1440 @ 60Hz, on the search for a switch that can handle 95Hz, doesn't need to have keyboard and mouse switching, just video.
Asked by: mysterae
I use this DP Kvm on the Acer X34. It drives perfectly at 60hz, but when you push it to 75hz it gets a weird flicker bug. There maybe a firmware fix available for that by now. The hardware certainly seems capable of faster than 60hz.
Answered by: Redland
Date published: 2019-07-25
