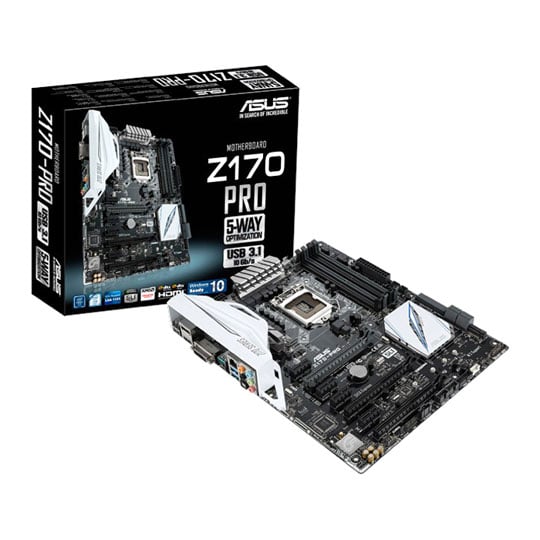

Asus Intel Z170 Pro Skylake Overclocking ATX Motherboard

Asus Z170-PRO, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way SLi/3-Way CrossFire, Intel LAN, USB 3.1 A+C, ATX

Asus
Scan code: LN68038 Manufacturer code: Z170-PRO Request call
£156.98
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD On 8th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview One click for superb performance, with Intel® USB 3.1 Controller

Overclock Your Way

One click overclock and cooling, done!
Get performance, efficiency, digital power, fan control and even networking and audio tuning tailored for you

5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!

• Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound.
• Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
• Stutter is eliminated for smooth-running apps, even under heavy loading.
• Energy waste is reduced so you'll save money.

CPU performance boost
Unleash your PC's full performance with a simple two-phase onboard switch or the ASUS AI Suite 3 utility! The TurboV Processing Unit (TPU) offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and to exploit the potential out of your graphics card*.
*Please see the graphics card QVL

All-round energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy real-time, system-wide power savings. EPU detects and adjusts power consumption according to the PC's needs — automatically. It can also reduce CPU wattage to a set level and deliver even more savings with Away Mode. This creates an extreme energy-saving scenario by shutting down unused extra I/O controllers and reduces the graphics cards' power level while you're away, so the PC consumes only the energy it needs — and not a drop more!

Advanced fan controls
With thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 3 makes sure every fan achieves the best balance of cooling performance and low noise!

• Dedicated water-pump header for best water-cooling efficiency.
• Auto-Tuning Mode: Scans and detects fan characteristics for single-click customization.
• Extreme Quiet Mode: Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
• RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing you to fix the fan speed.

Precise Digital Power Control
Power control is one of the most essential motherboard designs. Intelligent CPU-power-draw detection with ASUS DIGI+ Power Control is an innovative, industry-leading technology that fully complies with Intel® IMVP8 specifications, increasing overclocking potential, enhancing system stability, and improving power efficiency with superior flexibility and accurate control.

Game faster, rank higher
Whether hardcore gamer or business professional, you'll feel the benefit of the ASUS-exclusive Turbo App every day. Its intuitive tuning panel boosts a range of hardware, overclocking your CPU, tuning your fans, prioritizing network data and optimizing audio settings — all with automated ease!

OC Design- ASUS PRO Clock technology
A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to or beyond 400MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU), to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

Advantages of ASUS Pro Clock
• Reduced boot up time.
• Lower jitter under extreme conditions for higher overclocks.
• Increased stability under heavy overclocking.
*BCLK overclocking range will vary according to CPU capabilities, cooling, motherboard support and tuning options. Ranges up to 650MHz are possible under select conditions.

DDR4 overclocking strength in numbers
Second-generation ASUS T-Topology enables DDR4 memory overclocking to reach new heights: over DDR4-3866MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, our second-generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.

Native M.2/NVMe PCIe RAID support for lightning fast storage speeds!
Not satisfied with single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using two PCIe storage drives to enjoy data transfers at lightning speed!

Ultrafast Transfer Speed

Fast storage speed with SATA Express
Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.

Speed up with onboard M.2 up to 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Ultimate USB 3.1 speed with Type-C on board
ASUS Z170-PRO is engineered with the latest Intel® USB 3.1 controller for 16Gbit/s total USB 3.1 bandwidth! With both USB 3.1 Type-A and reversible USB 3.1 Type-C ports for compatibility and convenience, you'll experience data-transfer speeds of up to 10Gbit/s — or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!

Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

• EZ Flash 3: Update the latest BIOS via the internet, and from within the BIOS.
• S.M.A.R.T: Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
• EZ Tuning Wizard– OC and RAID: Select your hardware and apply different scenarios to tune system performance, or streamline your RAID configuration for faster data retrieval and backups!
• My Favorites: Quickly find tuning options and add preferred tools to the list.

EZ Mode
• Intuitive Graphical Fan Control: Fine-tune individual fans simply by dragging a curve with the mouse.
• EZ XMP: Improve your DRAM performance with a click.
• SATA Information: View SATA port details for easy device recognition.
• Fast Clock Adjustment: Use mouse controls to change the time and date.

Advanced Mode
• GPU POST: Automatically detect selected ASUS graphics cards to view detailed information.
• Secure Erase: Restore your SSDs to factory-fresh condition.
• Last Modified Log: Track last change and save preferred profiles onto a USB drive.
• SATA Port Renaming: Rename SATA ports for easy identification.

Game with Confidence

Crystal Sound 3: Flawless audio that makes you part of the game

Clean Power
• Power pre-regulator: Reduces power-input noise to ensure consistent performance.

Noise Isolation
• Audio shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference.
• Separate layer for left and right tracks: Ensures both channels deliver consistent, equal quality.
• EMI protection: Prevents electrical noise to preserve audio quality.

Audio Enjoyment
• Premium Japanese-made audio capacitors: Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
• De-pop circuit: Reduces start-up popping noise to all audio outputs.
• Audio amplifier: Produces the highest-quality sound for headphone and speakers.

Intel Ethernet: More throughput, less CPU usage and great gaming experiences
Z170-PRO features the very latest Intel® Ethernet for faster, smoother gaming — always. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor's workload, so there's more power for your game and your gameplay!

Turbo LAN: Network-optimization software for customizable packet prioritization
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and intuitive user interface. It allows you to lower lag with no expert knowledge – by up to 1.45X! If you're a tweaker, use Advanced Mode for hardcore controls.

• Real-time speed monitor.
• Grouping your own favorite list.
• Set priority to speed up for your application.

LANGuard: Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Seamless Entertainment: Total control anytime, anywhere with Wi-Fi GO!
Wi-Fi GO! gives you complete control of your PC — even when you're away from home. Access your forgotten files at home, and work on your PC from almost anywhere. Plus, it takes just one click to manage all your public clouds or sync files across your PC and devices!

• Cloud GO!: Gather your ASUS WebStorage, Dropbox® , Google Drive™, and OneDrive® accounts in one place and even back up to PC at the same time.
• Remote Desktop: Easily access and control your PC, anytime and anywhere!
• File Transfer: Sync files between your PCs and smart devices with just a click!
• Remote Keyboard & Mouse: Control media playback from your sofa!

Media Streamer: Your digital PC hub for sharing and home theater
Enjoy your PC's multimedia content —anywhere! Pipe music from your PC or cloud storage, including ASUS WebStorage, Dropbox, Google Drive and OneDrive while sipping coffee in a café, or sit back with friends and stream a favorite movie to a smart TV. With ASUS Media Streamer, your entertainment goes wherever you go.

HyStream: Watch your smart device content on the big screen
With HyStream you'll enjoy the ease and freedom of streaming HD content from your supported* Apple iOS smartphone or tablet straight to your bigger screen!
* Contact your device vendor for support information.

Mobo Connect: All-in-one control between your PC and smart device
Work with your PC and smart device at the same time through a single keyboard-and-mouse set. A simple hot key lets you switch between your PC and smart device quickly. It even charges your mobile device at the same time.

Extreme Stability
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

• Surge-Protected Networking.
• Overvoltage Protection.
• Stable Power Supply.
• Overcurrent Protection.
• Stainless-Steel Back I/O.

Easy PC DIY: You will love DIY!
We understand how you use your PC. From assembly, system setting and monitoring, and to firmware and hardware updates — we're all about making your life easier. That's why we never stop developing new and exciting DIY opportunities to make PC DIY easy, fun and free from hassle!

CPU Installation Kit: Three-step simplicity and safety
One mistake during fitting could damage your processor or socket — but not with the ASUS CPU Installation Kit. Just pop your CPU in the special tool, insert the tool directly into the CPU socket, close the latches positions and you're good to go!
*The CPU Installation Tool is compatible only on selected motherboards

PC Cleaner: Work faster, start quicker and smoother
Your computer is running slow? PC Cleaner cleans up unused and unwanted files and programs that take up spaces in your storage drives, eliminating the clog It also accelerates PC start-up with a click!

Q-DIMM: Easy memory removal
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Q-Slot: Effortless PCI Express component removal
The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-Connector: Easy, quick, and accurate connections
You no longer need to worry about which front-panel wire goes where. Just pop the wires into Q-Connector's one-piece plug and you're good to go.

Q-LED: Easy PC diagnostics
Q-LED indicates problems with the CPU, memory, graphics card or boot device, so you can quickly diagnose and remedy any issues — and wave goodbye to endless frustrations!

Q-Shield: Easy and safe on fingers
Unlike other I/O shields, with their sharp edges, the exclusive Q-Shield is soft and pliable to protect your hands from cuts.

Intel CPU and chipset features

Intel® Z170 Express Chipset
Intel® Z170 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z170 provides a maximum of ten USB 3.0 ports, six SATA 6Gbit/s ports, 32Gbit/s M.2 and PCIe 3.0 lane speed support for faster data retrieval. Intel Z170 Express also supports integrated-graphics (iGPU) functions, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance. Features • 5-Way Optimization: One click to optimize your entire system; plus a dedicated onboard water-pump header.
• Intel® USB 3.1 on board: One Type-A port plus a reversible Type-C port.
• ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking.
• Crystal Sound 3, Intel LAN and Turbo LAN: Flawless audio and low-latency networking.
• 5X Protection II: Advanced hardware safeguards.
Specifications
Specifications
Form Factor ATX
CPU Socket 1151
QPI Speed N/A
Chipset Intel Z170
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz)
  • *
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
Maximum Memory Capacity 64GB (4x16GB)
Graphics Connectors
  • Display Port 1.2
  • DVI-D
  • HDMI
Graphics Interface PCIe 3.0 (x16)
SLI Support 2 Way SLi
Crossfire Support 3 Way CrossFireX
Audio Realtek ALC1150 7.1 HD Audio with Crystal Sound 3
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Interface Chip/Modules 1 x Intel® I219V (Gigabit LAN)
SATA SATA Express/ SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Water Cooled No
Expansion Slots
  • 1 x M.2, S3 (M), 2242/2260/2280/22110, PCIe
  • 4 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
Internal I/O
  • 1 x 24pin (V)
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8pin (V)
  • 1 x AAFP Connector
  • 2 x Chassis Fan Connector (4-pin)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU OPT Fan Connector
  • 1 x DRCT Header
  • 1 x MemOK! Button
  • 1 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 4 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Thunderbolt header
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
  • 1 x Water Pump Header
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB 3.1 Gen1 Type A
  • 1 x USB 3.1 Type-C
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 4.5 out of 5 by 2 reviewers.
Rated 5 out of 5 by Quality mobo, easy to overclock This is a quality mobo, well up to ASUS usual standards. It is well laid out and therefore easy to build. It has ample room for large CPU coolers and the PCIE sockets accept the largest GPUs. The AISuite3 software makes overclocking simple and the UEFI BIOS are as good as they get. This board has nearly all the feature one could expect at the price. Above all - it works! 01 May 2016
Rated 4 out of 5 by new build great board from point of view of SATA connections which was my most important feature. Only problem occurred at start up with trying to run my previous OS (W7) from an SSD. Did not run because of drivers and even with trying to install drivers with OS not running failed to sort problem. Eventually had to start from scratch with new installation. Swapping OS disc works with other boards so not sure what is different about this one. 08 March 2016
