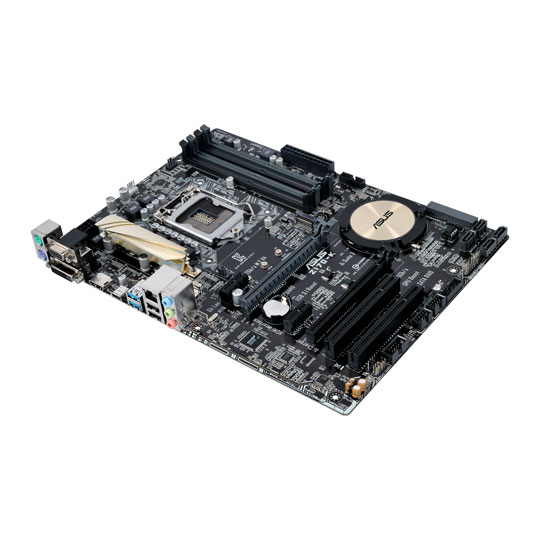

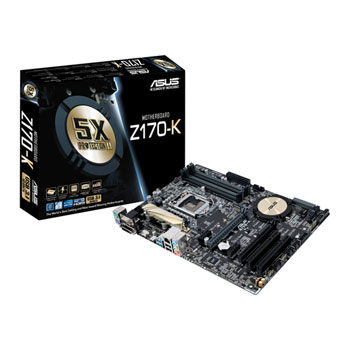

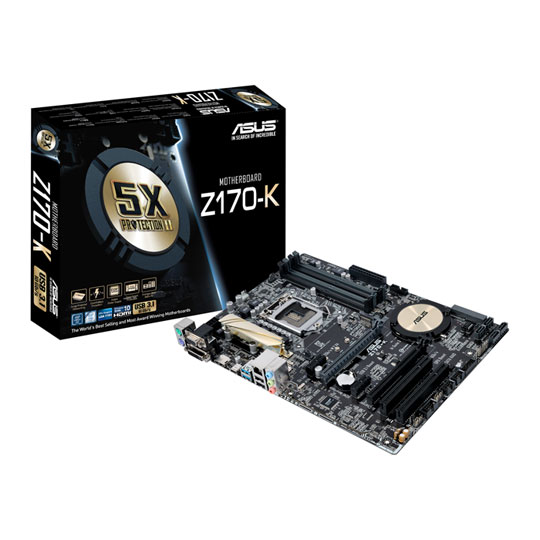

Asus Z170-K CrossFire USB 3.1 ATX Motherboard

Asus Z170-K, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek Gigabit LAN, USB 3.1 A+C, ATX

ASUS
Scan code: LN66318 Manufacturer code: 90MB0NB0-M0EAY0 Request call
£106.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 30th Jun 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

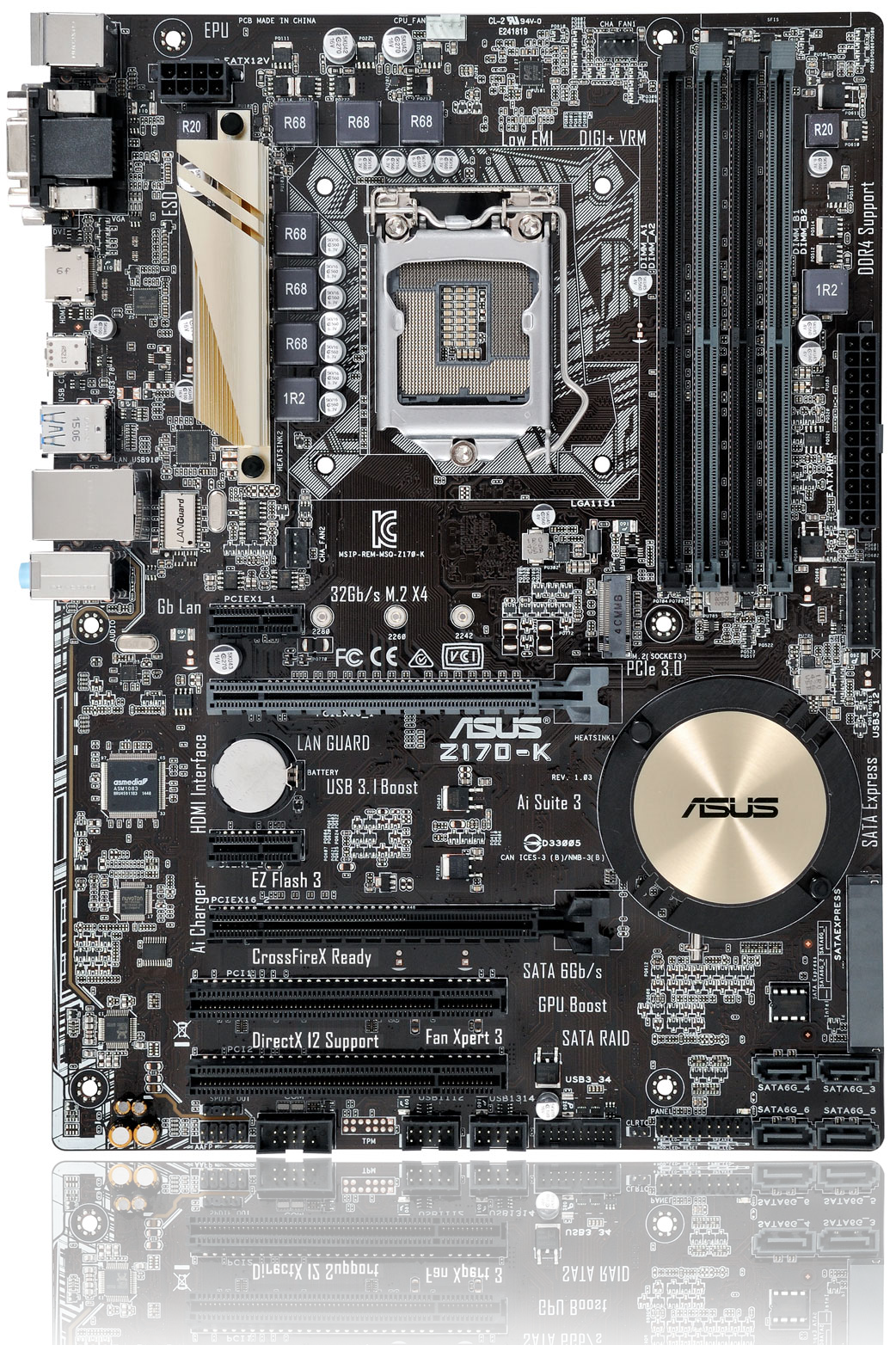

Asus Mainstream ATX Z170-K Motherboard

ASUS Z170-K Motherboard

Z170-K motherboards are from ASUS’ series designed to be durable, safeguarded and with enhanced protection. It features some of the best motherboard ports available such as USB 3.1, advanced audio technology for increased gaming immersion and Fan Xpert 3 for controlled cooling. This premium motherboard will bring increased stability, fantastic performance and lightning-fast speeds to your system. Plus, it utilises ASUS’ UEFI BIOS, that is media-acclaimed and comes with EZ Flash.

Intel Z170
Chipset

1151
CPU Socket

ATX
Form Factor

Dependable Motherboard Stability

Advanced Hardware Safeguard

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

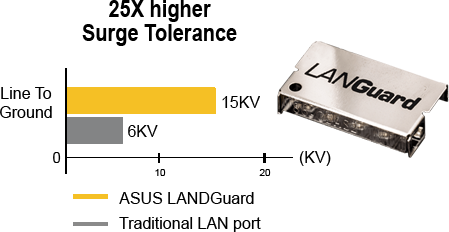

LANGuard Board Protection

Pumped-Up Throughput, Higher Surge Tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

* ESD result is undertaken by individual LANGaurd

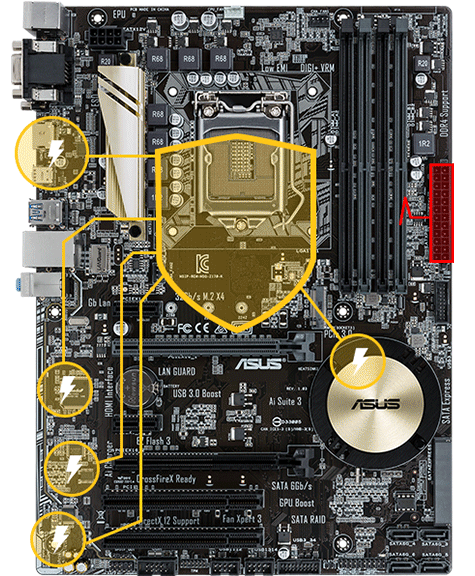

Best Overvoltage Protection

World-Class Circuit-Protecting Power Design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

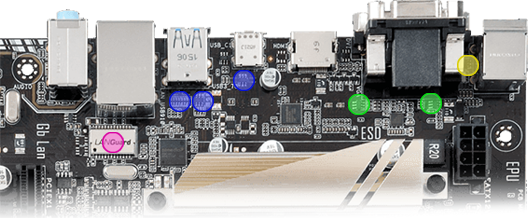

ASUS ESD Guarded Motherboard

Electrostatic Discharge (ESD) - Protective Circuit Design

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

LAN Port - ESD TVS diode protection on the LAN circuit.
USB Connectors - TVS diodes for surface-mount and dual-inline packages.
VGA Connectors - Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
Keyboard and Mouse Connectors - Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

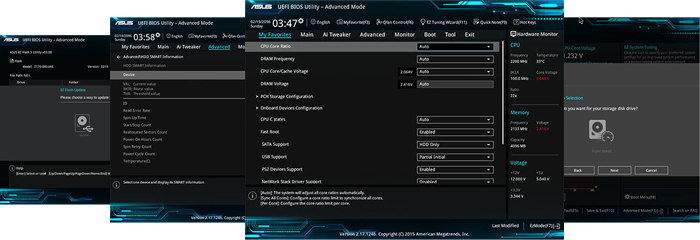

ASUS UEFI BIOS

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

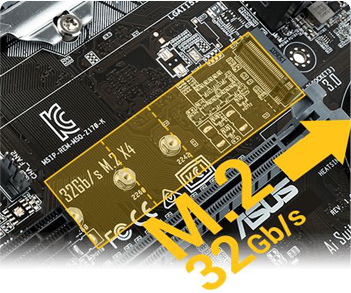

M.2 Motherboard Slot

Ultrafast Transfer Speed

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

Plug-and-Play Connectivity

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

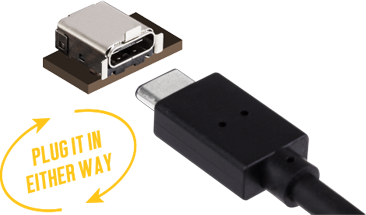

TYPE-C ease and speed

Motherboard Convenient Connectivity

USB Type-C (USB-C) delivers future device compatibility and high-speed USB connectivity of 5Gbit/s from a slim, reversible port.

1/3 smaller than traditional USB Type-A / Any-way-up design means USB connection / Compatible with the latest devices today and the exciting new trends of tomorrow

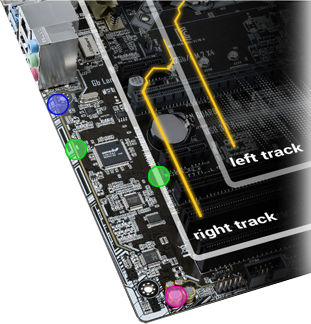

Gaming Audio

Immersive Motherboard Audio Tech

Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

LED-Illuminated Design - Brighten up your build with the gorgeous illuminated audio trace path.
Noise Isolation - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Audio Enjoyment - Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

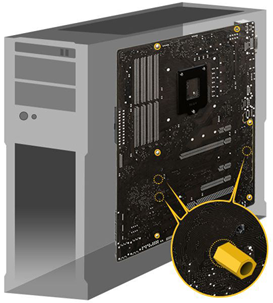

Safe Motherboard Mounting

Component-Free Areas to Minimize Damage Risk

Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

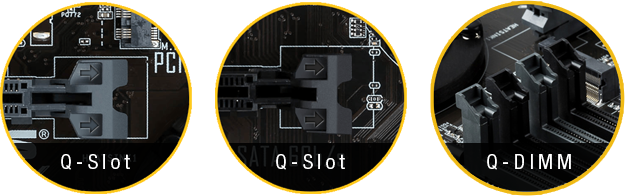

Q-Slot/Q-Dimm Motherboard Fitting

Effortless PCI Express Component Removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

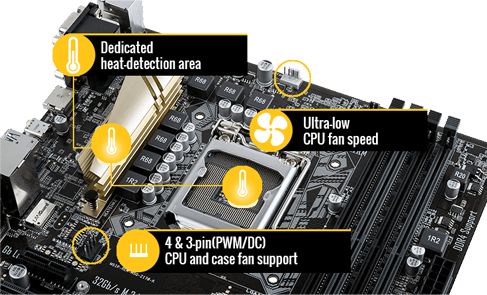

Optimized Cooling

Fan Xpert 3 - Advanced Fan Controls

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 3 makes sure every fan achieves the best balance of cooling performance and low noise!

Auto-Tuning Mode - Scans and detects all fan characteristics for single-click customization.
Extreme Quite Mode - Reduces CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.
RPM Fixed Mode - Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.

Ultrafast Transfer Speed

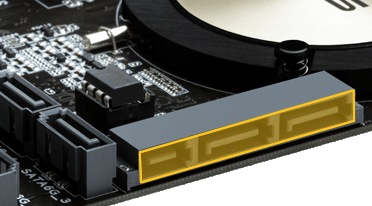

SATA Express Motherboard Ports

Current SSDs devour up to 550MB/s bandwidth, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.

The best USB speeds available

10Gbit/s USB 3.1 Onboard

With USB 3.1 Type-A port, you'll experience data-transfer speeds of up to 10Gbit/s — or twice as fast USB 3.0. USB 3.1 is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!

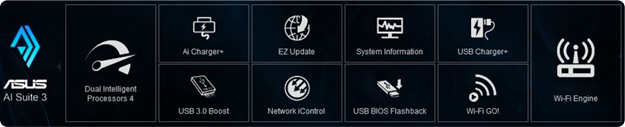

One-Stop Control - AI Suite 3

One-Stop Access to Innovative ASUS Features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

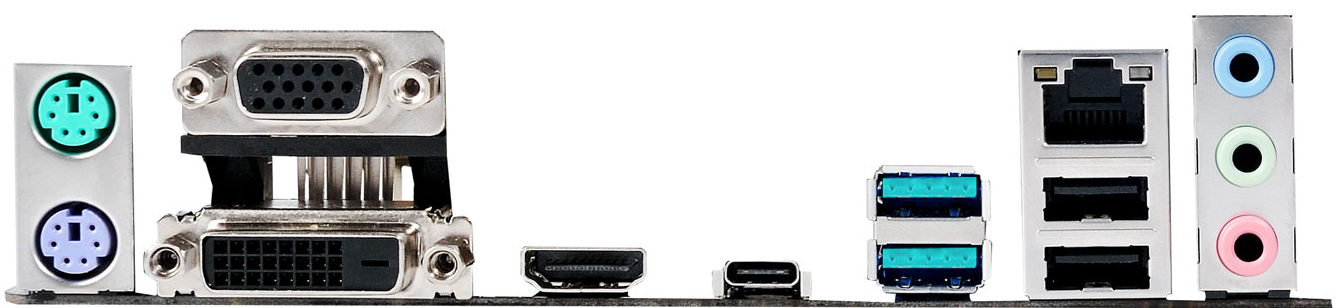

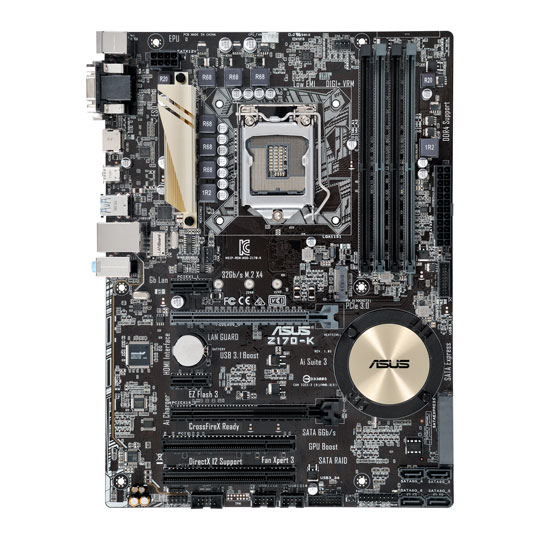

Z170-K Connections

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel® Smart Response Technology
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x SATA Express (Compatible with 2x SATA III)
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)

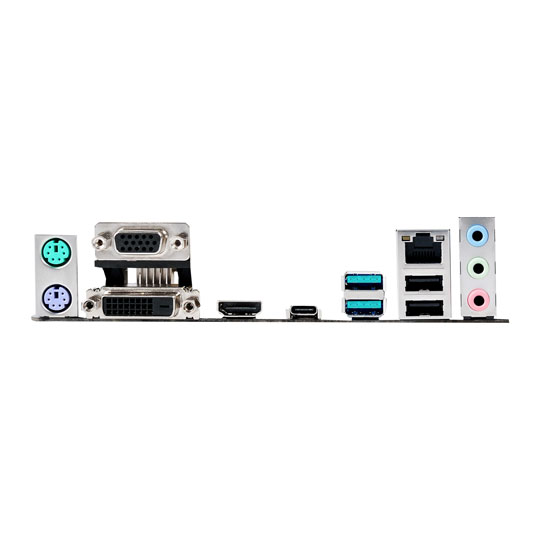

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 2 x USB 2.0
  • 2 x USB 3.1 Type-A
  • 1 x USB Type C (5Gb/s) with 3 Amp Power
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
Asus Z170-K, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way CrossFire, Realtek Gigabit LAN, USB 3.1 A+C, ATX is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Good value and performance this is the second one of these I bought as I was very happy with the first
Date published: 2016-12-02
Rated 5 out of 5 by from Good quality motherboard This is the second ASUS board I've used and both are very good. I have an M2 SSD installed alongside an i3-6100 and 16GB of ram. Needless to say it runs extremely well, is energy efficient and quiet. Only thing I would say is that the I/O panel is a bit lacking on connectivity, but otherwise very good.
Date published: 2016-02-21
Rated 5 out of 5 by from Great board Used in my HTPC and is a great board. I was very please with my purchased.
Date published: 2015-11-13
