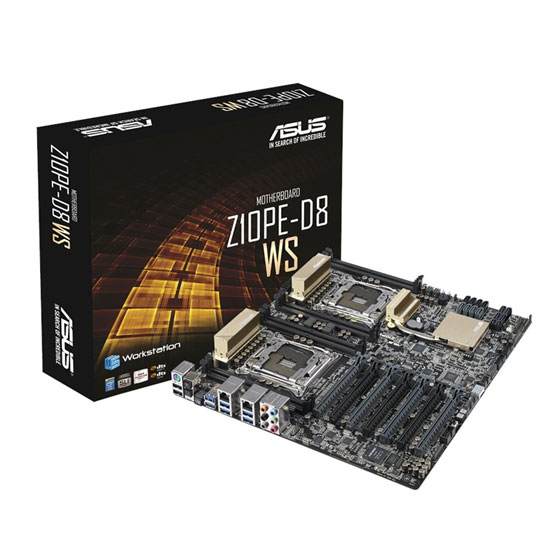

Z10PE-D8 WS Xeon Series S2011 v3 Asus Motherboard

Asus Z10PE-D8 WS 2x S 2011-3 EEB Intel C612, VGA + U3 + 2GLN, SATA6GB / S, DDR4 IN

ASUS
Scan code: LN59766 Manufacturer code: Z10PE-D8 WS Request call
£484.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £12.11 / month (APR 15.9%)
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Supreme Power Solutions
ASUS Z10PE-D8 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. Carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr. MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry's most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z10PE-D8 WS is built to stay cool under pressure — and boosts performance, power efficiency and product longevity into extreme levels!

Q-Code Logger – one-touch checker
Q-Code logger is your one-touch checker that lets users easily check system status at any time. Plug a flash drive into adjacent USB port, press the motherboard's dedicated Q-Code logger button and all ASUS Q-Code event logs for the current live session will be copied to the drive even with the system off.

Dr. Power for intelligent PSU detection
As the Z10PE-D8 WS is meant for professional users who rely on non-stop operation, stable power delivery is critical. Real time power supply health detection helps prevent sudden system shutdown and provides hassle-free notifications should power delivery be insufficient. Additionally, LED messages on the board clearly indicate any relevant power issues in the event your system fails to boot.

Evolve your storage speed with SATA Express
SATA Express provides up to 10Gbit/s data-transfer speeds from two PCIE 2.0 lanes, resolving the higher bandwidth request in the near future. The current SSDs consume up to 550MB/s, which is close to saturation point for SATA 6Gbit/s connections. Backwardly compatible with up to two SATA drives, SATA Express is the next-generation connectivity standard — and ensures that you and your system won't get left behind.

Speed up your system with M.2
With two native PCI Express 2.0 bandwidth, M.2 supports up to 10Gbit/s data-transfer speeds and up to 22110 NGFF. It is the perfect choice for an operating system drive, making your whole PC work that much faster.

Total Feature Enhancement with Complete I/O

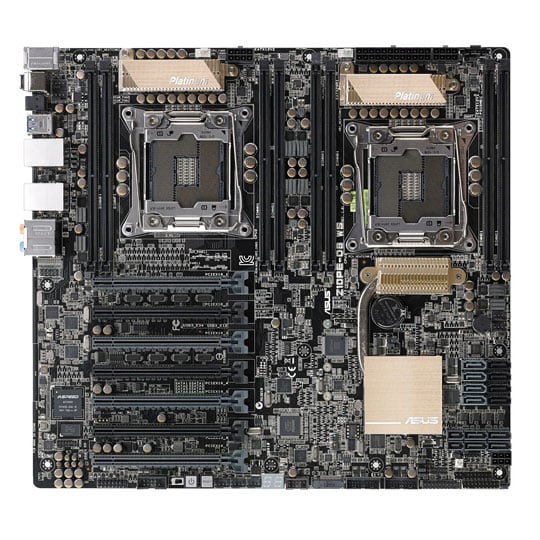

Z10PE-D8 WS packs advanced features onto a standard Enterprise Electronics Bay (EEB) form factor to deliver superior flexibility and performance, with dual Intel® Xeon® E5-2600 v3 sockets, eight DDR4 DIMM slots, and seven PCI Express 3.0 x16 slots. Z10PE-D8 WS also has ten USB 3.0 ports, eight SATA 6Gbit/s and two of the latest SATA Express connectors — so you’ll benefit from data transfers of up to 16Gbit/s! It also offers superb multimedia, with 7.1-channel DTS-HD® Master Audio output.
Features • Quad Strength Graphic Power – 4-Way PCI-E Gen3 x16 link supporting NVidia GeForce SLI and AMD CrossFireX on demand
• Supreme Power Solution – Premium components deliver industry-leading power efficiency
• Unique BIOS for Dual CPU O.C. –Boost CPU’s overclocking performance up to 10%
• Superb storage flexibility– onboard M.2 x4 and support for ASUS PIKE II cards
• Easy maintenance–ASUS Q-Code Logger, an easy-maintenance button and Dr. Power LED displays unusual power statuses
Specifications
Core Specifications
Form Factor EEB
CPU Socket 2011-3
Chipset Intel C612
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC
Memory Type (R/U) RDIMM
Memory Speed (Mhz)
  • DDR4 - 1600
  • DDR4 - 1866
  • DDR4 - 2133
Max. Memory Capacity 512GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots 4 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 9 x 4-pin Fan
  • 1 x 6-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x M.2
  • 1 x Reset Button
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x START (Power On) button
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules

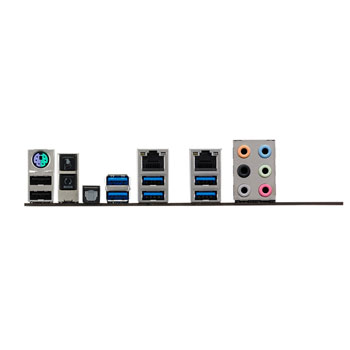

Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x Audio I/O
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 6 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
Customers also bought
Reviews
Asus Z10PE-D8 WS 2x S 2011-3 EEB Intel C612, VGA + U3 + 2GLN, SATA6GB / S, DDR4 IN is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from The best motherboard out there... Yes, it really is. The thing has 7 GPU slots, obviously the 2x 2011v3 slots and the 8 dimm slots too, in fancy DDR4 Remember guys! you HAVE to get the v3 2011 e5 xeons for this, or a single core i7 2011-v3 The older 2011v2 E5 xeons will fit, but they will blow both the board AND CPU once powering on! If you run Xeons, you will have to run DDR4 ECC ram, which is very performant and very cheap, at £94 per 16gb stick... you will build yourself a system that will NEVER crash or blue screen. Any build with this board will be one of the most stable and powerful around for seemingly little cost. See related products for the gear i chose to run with this board.
Date published: 2016-03-01
Rated 5 out of 5 by from Brilliant product Really happy with the purchase, would definitely recommend this product to a friend, product is in great condition.
Date published: 2014-12-30
  • y_2017, m_7, d_20, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_59766, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What ram is compatible?

I see only two listed memory modules on Asus QVL. But will something like Corsair Vengeance LPX Black PC4-21300 work with this board also?
Asked by: colinmcr
Many people have asked in other threads I found via Google. I can't say definitively however I would go on the logic is that if you have purchased a relatively expensive motherboard you should fill it with EEC memory. Its not a gaming station and doesn't need speed more reliability.
Answered by: RADCOM
Date published: 2016-11-27

Will this take the new Xeon V4's ?

Any ideas how the new V4's will fare on this board ? https://www.scan.co.uk/products/intel-xeon-e5-2630-v4-s-2011-3-broadwell-ep-10-core-22ghz-31ghz-turbo-20mb-40-lane-80gt-s-qpi-85w-re Thanks
Asked by: ram01
CPU support list is here: https://www.asus.com/uk/Motherboards/Z10PED8_WS/HelpDesk_CPU/ v4 xeons are supported with a bios update.
Answered by: jymmy
Date published: 2016-07-23

Run one CPU?

If i bought this motherboard now, would it be possible to only use one CPU socket and have a functioning system?, and then possibly upgrade to a second CPU in the future when required.
Asked by: Joseph6321
Yes you can definitely run it on only CPU. N.B. If you don't have enough memory to fill all 8 slots be sure to check the manual for the configuration for the amount of Dimms you have (yeah that one got me)
Answered by: RADCOM
Date published: 2016-11-27
