Scan code: LN93027 Manufacturer code: TUF Z390M-PRO GAMING (WI-FI)

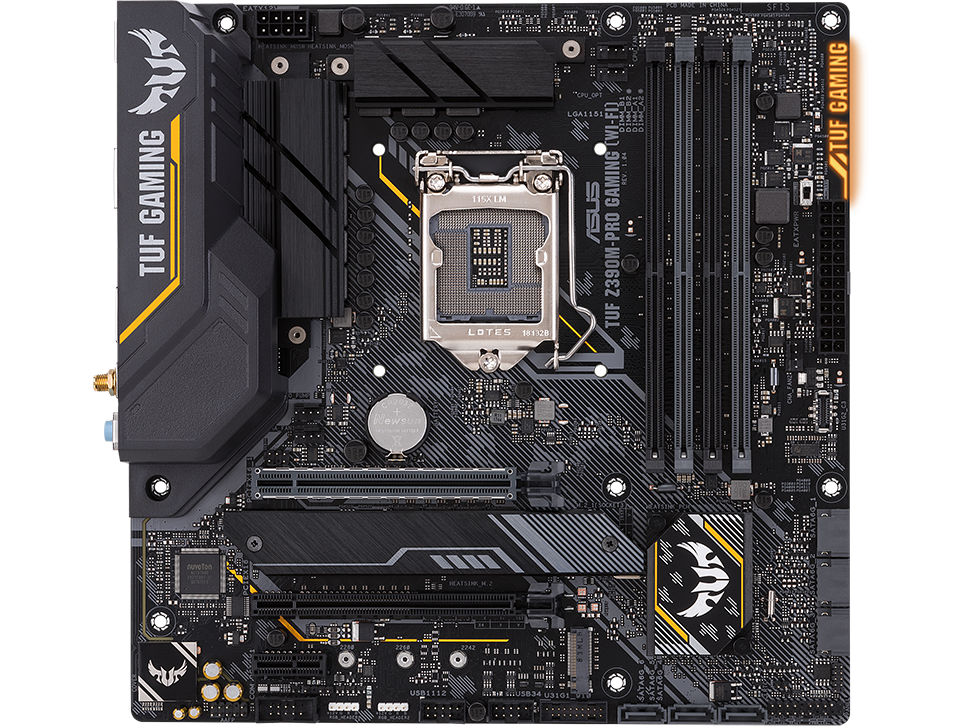

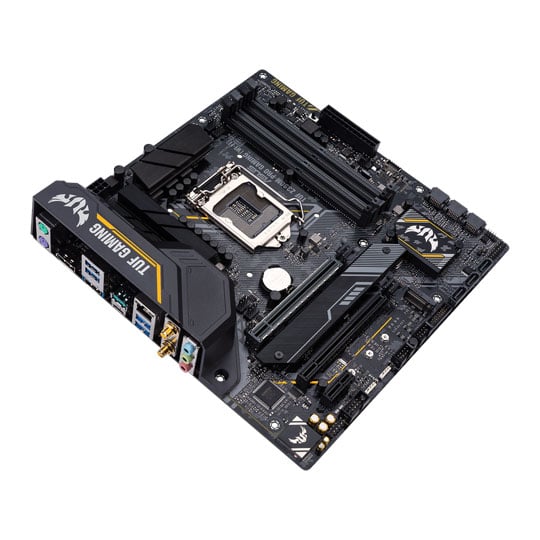

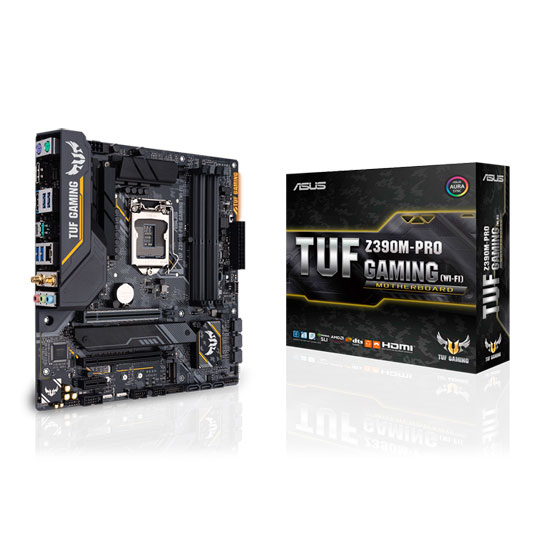

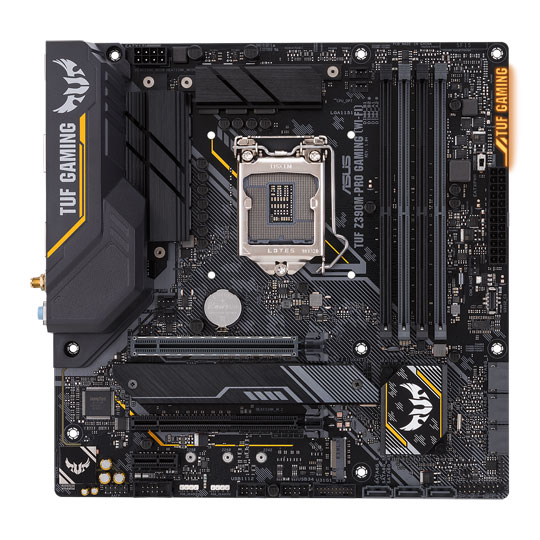

ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard

ASUS TUF Z390M-PRO GAMING (WI-FI), Intel Z390, S 1151, DDR4, SATA3, Dual M.2,2-Way SLi/CrossFire, WiFi, USB3.1, MicroATX

Thumbnail 1 : ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard Thumbnail 2 : ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard Thumbnail 3 : ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard Thumbnail 4 : ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard ASUS TUF Intel Z390M-PRO GAMING AC WiFi 9th Gen Micro ATX Motherboard : video thumbnail 1
Scan code: LN93027 Manufacturer code: TUF Z390M-PRO GAMING (WI-FI)
£174.98
From £15.71 / month (APR 14.9%)
Monthly Payment: £30.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £174.98
Total inc. interest: £182.18
Monthly Payment: £15.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £174.98
Total inc. interest: £188.50
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview A Whole New Gaming Series for Casual Gaming Purposes
Casual gaming is a term used for a form of playing video games where a gamer does not have a long-term commitment to a game and can approach playing the game on an infrequent and spontaneous basis.
Casual video games have several distinguishing features. They are often web-based and are usually found on PC.

Optimised Thermal Design
With the help of specially designed thermal pads for inductors; the heat between the key VCORE components of the motherboard can have a great balance and make the inductors much cooler. It is the secret of how TUF Z390 GAMING series motherboards could have such excellent overclocking performance.

Both the MOSFETs and inductors can reach appropriate temperatures due to the specially designed thermal pads, providing you with greater overclocking potential.

Enhanced EATX 8-Pin Connector
Solid structured, harder and more durable pins for a longer plug and pull life span.

Exclusive Realtek S1200A Codec
The unique audio codec designed in close collaboration with Realtek, features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
• TUF GAMING audio cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
• Audio enjoyment: Premium Japanese audio capacitors provide warm, natural and immersive sound with exceptional clarity and fidelity.
• Exclusive S1200A codec: Completely immersed in the crystal-clear sound of game.
• Audio shielding: Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Exclusive DTS Custom for Gaming Headsets
Exclusive audio technology developed by ASUS and DTS to provide multi-channel surround virtualisation for stereo headphones. TUF custom audio includes easy to use, selectable presets optimised for different game genres including Aerial, Soundscape and Tactical modes.
• Aerial Mode: Front stereo, best for MOBA/RTS/Grand Strategy/Sport genres.
• Soundscape Mode: Wide stereo, best for MMO/RPG/Action Adventure/Horror genres.
• Tactical Mode: Traditional stereo, best for FPS/Stealth genres.

Higher Overclocking Headroom
ASUS OptiMem II tech enhancements lead to more headroom for memory overclocking and improved compatibility over reference designs.

Reimagined from the Ground Up
Carefully mapped memory signal pathways across different PCB layers reduce cross talk effect.
Ground ring and ground plane help to fend off most of the external interference.
Improved memory stability makes for better overclocking performance.

Automated Recovery
Retains as much high performance setting as possible.
Fully automatic memory training.
A failsafe technique to boot up.
Enhances memory compatibility.

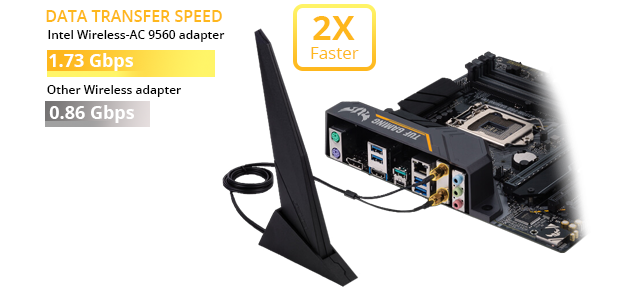

Intel Wireless AC 9560NGW
The Intel Wireless-AC 9560 adapter with integrated Intel wireless solution includes 2x2 802.11ac and Bluetooth 5, allowing users a more speedy connecting experience.

Exclusive CNVi for 300 Series
CNVi (connectivity integration architechture) is embedded into Intel processors which enables a direct channel for integrated Intel total RF solution to achieve faster connectivity.

Intel Ethernet
TUF gaming series models feature the very latest Intel Ethernet for faster, smoother gaming – always. Intel’s LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This significantly reduces the processor’s workload, so there’s more power for your game and your gameplay!

TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

M.2 Heatsink
To keep M.2 SSD drives cool and maintain stable performance, all Z390 TUF gaming motherboards are equipped with a huge cooling surface M.2 heatsink. The M.2 heatsink perfectly chills M.2 SSD and prevent dramatic performance throttle.

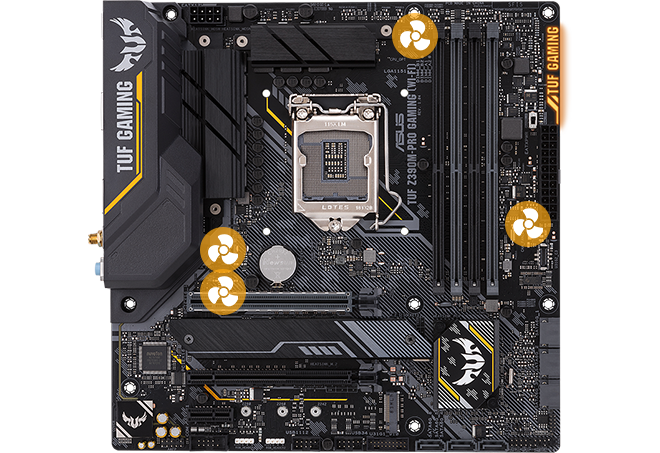

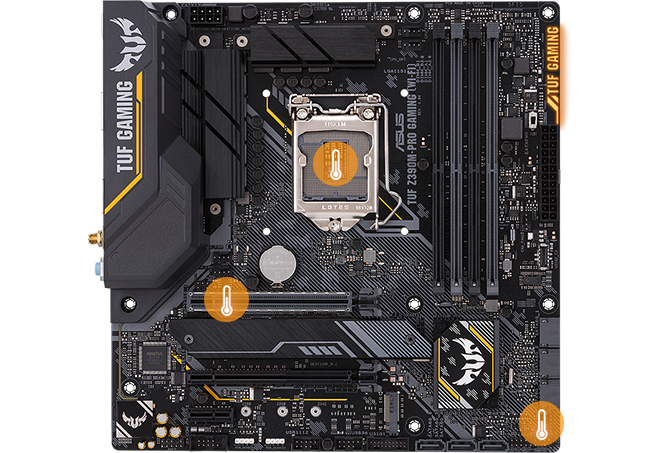

Advanced Fan Controls for Ultimate Cooling and Quietness
TUF gaming motherboards feature our best ever cooling capability, controllable from both Fan Xpert 4 Core and the UEFI.

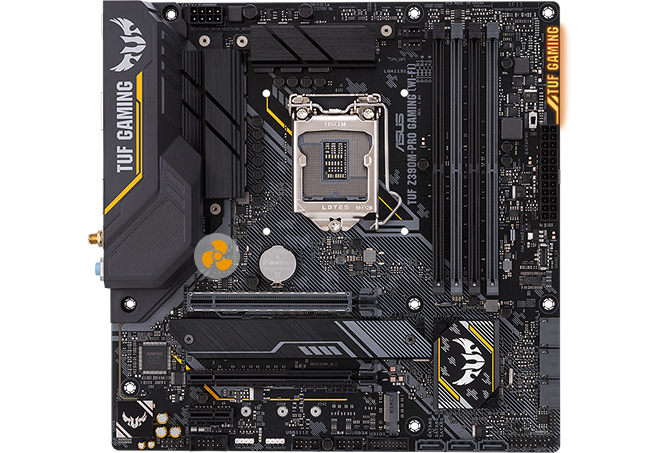

AIO Pump Header
Full control of PWM or DC water pumps, perfect for self-contained cooling setups.

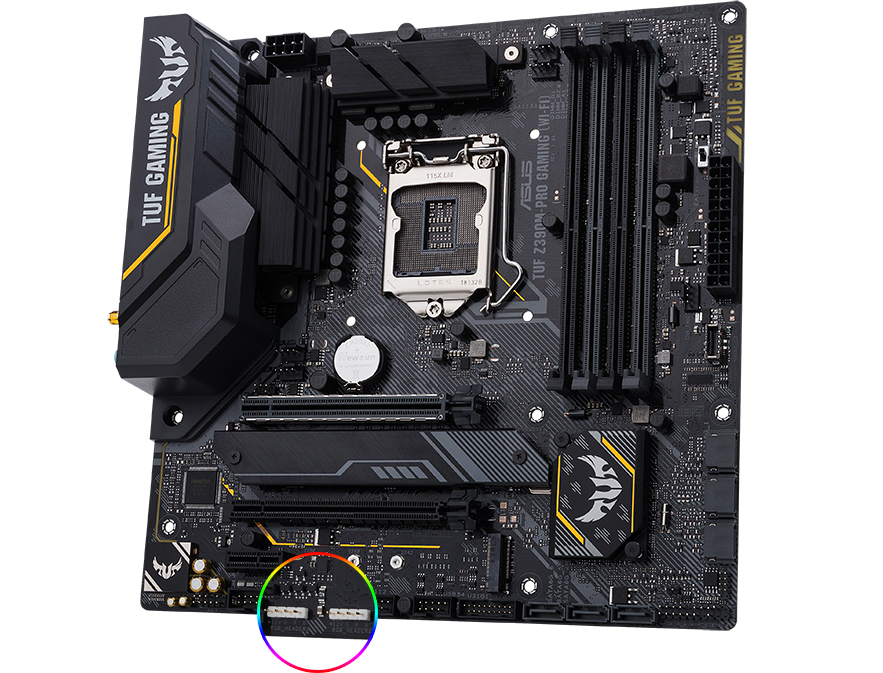

Aura Sync
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Q-Installer
ASUS Q-installer SW provides automatic download and installation of drivers/SW for your TUF gaming motherboard. Choose just the options you want from a user-friendly interface and Q-installer will do the rest.

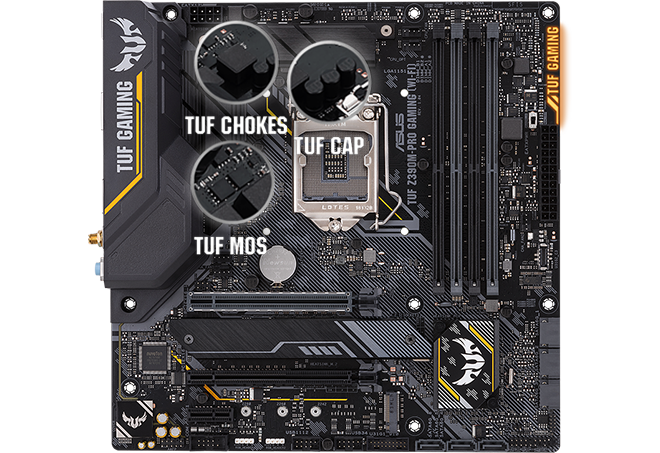

TUF Components
Certified military-grade TUF components to improve your systems stability.
• TUF MOSFETs: Certified military-grade MOSFETs with lower RDS(on). Lower RDS(on) results in better power efficiency and reduced heat generation.
• TUF Capacitors: +20% temperature tolerance and 5X-longer lifespan.
• TUF Chokes: Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
• TUF LANGuard: TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Protect Your Graphics Card Investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-moulding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

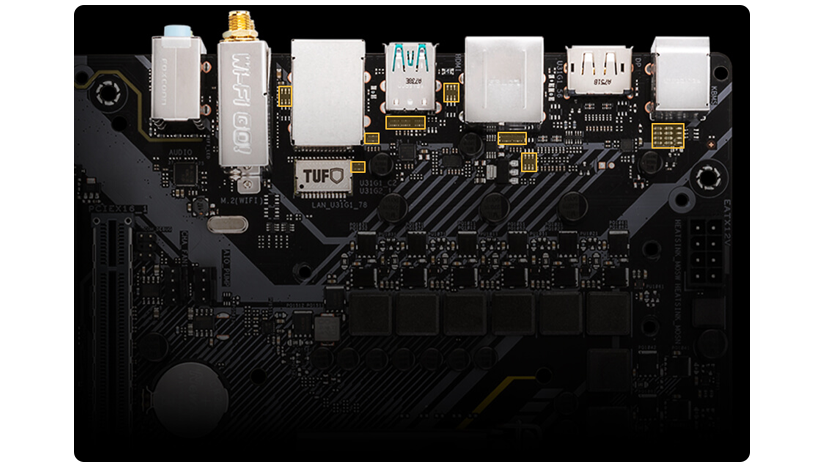

ESD Guard
ESD guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge – greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV.

DIGI+ VRM
The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

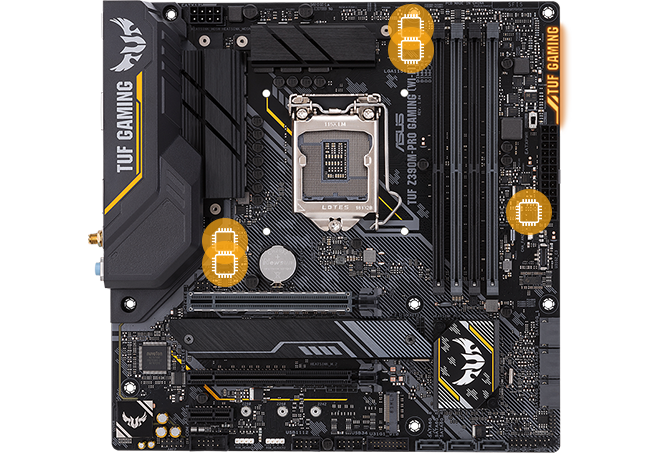

DRAM Overvoltage Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O
TUF’s corrosion-resistant stainless steel back I/O panels are bonded with chromium oxide – so they can endure a 72-hour salt spray test, compared to the industry standard of just 24 hours. Features ASUS TUF Protection:
• ASUS SafeSlot: Protect your graphics card Investment.
• ASUS ESD Guard: Enhanced ESD protection.
• ASUS Overvoltage Protection: World-class circuit-protecting power design.
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM: Twin 8+1 Phase digital power design.

TUF ENGINE! Power Design:
• TUF Components (Choke, Cap. & MOSFET; certified by military-standard).

AURA:
• Aura Lighting Control.
• Aura RGB Strip Headers.

ASUS EPU:
• EPU.

ASUS Quiet Thermal Solution:
• Stylish Fanless Design Heat-sink solution.
• ASUS Fan Xpert 4.

ASUS Exclusive Features:
• ASUS Ai Charger.
• ASUS AI Suite 3.

ASUS EZ DIY:
• ASUS UEFI BIOS EZ Mode.
• ASUS CrashFree BIOS 3.
• ASUS EZ Flash 3.

ASUS Q-Design:
• ASUS Q-DIMM.
• ASUS Q-Slot.
• ASUS Q-Connector.
• ASUS Q-LED.
Specifications
Core Specifications
Edition TUF Z390M-PRO GAMING (WI-FI)
Form Factor MicroATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x MemOK!-II switch
  • 2 x RGB Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel(s) (Q-Connector)
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 9560 (ac WiFi, MU-MIMO, BT5)
  • 1 x Intel® I219V (Gigabit LAN)

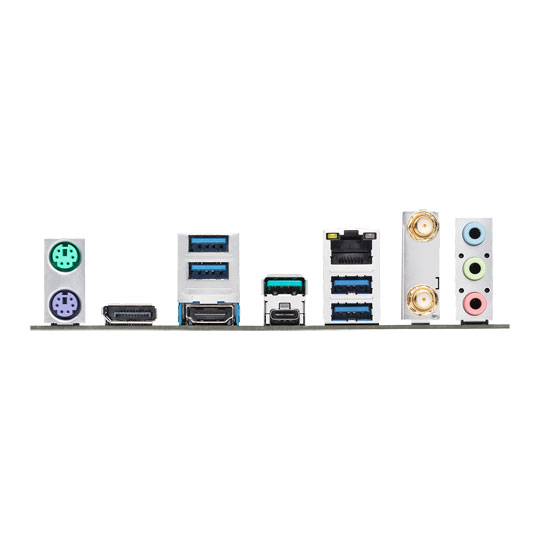

Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
  • 1 x USB 3.1 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 244 x 244 mm
