ASUS Intel Core-X TUF X299 MK2 Extreme ATX Motherboard

ASUS TUF X299 MARK 2, Intel X299, S 2066, DDR4, SATA3, Dual M.2, 3-Way SLi/CrossFire, Intel GbE, USB 3.1 Gen2 A, ATX

ASUS
Scan code: LN82160 Manufacturer code: TUF X299 MARK 2 Request call
£222.98
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Free Delivery Delivery options Free By DPD On 27th Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Built for Gaming and Design. TUF X299 Mk2 Motherboard From ASUS

TUF X299 Mk2 Motherboard from ASUS
Intel 2066 Powered PC Motherboard. TUF Mark2

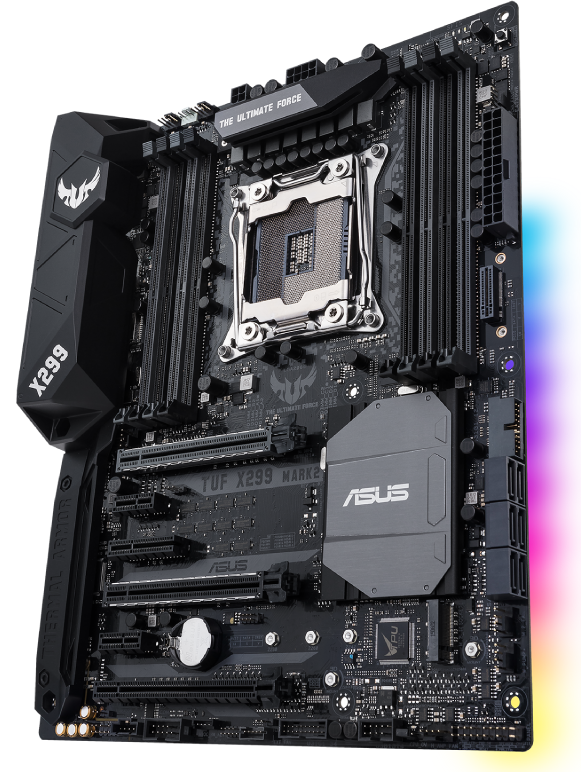

This durable ATX motherboard is the TUF X299 Mark 2 from ASUS’ 2066 socket series. It boasts incredible stability and efficient cooling. The TUF X299 motherboard has been designed for enthusiasts, modders and gamers, or anybody who may require reliable performance day in, day out. Built with industry leading cooling control and temperature monitoring, high-speed transfer rates and overclocking in mind, ASUS’ ATX TUF Mk2 is an incredibly capable motherboard.

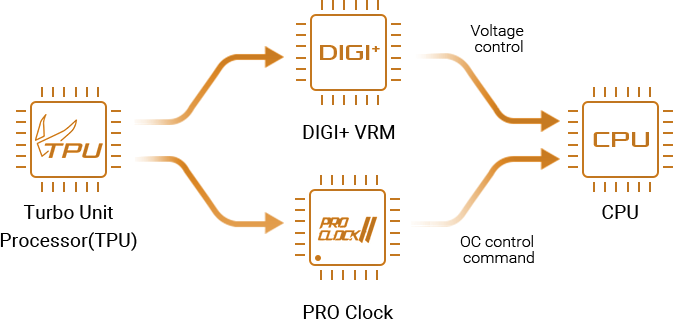

ASUS Pro Clock II Technology

X299 Pro Clock II
Dedicated design for overclocking

TUF X299 Mark 2 includes a dedicated base-clock (BCLK) generator to extend CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel Core X-series processors.

ASUS TUF X299 Mk2 Protection

TUF X299 Mk2 motherboard Protection
Protect your graphics card investment

Safeslot: SafeSlot (patent pending) is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD Guards 2: ESD Guards 2 protects TUF X299 Mark 2 from damaging electrostatic discharge. ESD Guards 2 is tested to levels that are 2X higher than industry standards. We also perform pin-level* testing at 30%-higher ESD levels than previous TUF standards. Our stringent tests mean greater component longevity for your TUF motherboard!

ESD Guards 2: Certified military-grade TUF chokes offer unbeatable durability in order to maximize the lifespan of your system. +110% temperature, tolerance and 1.5X-longer lifespan. Certified military-grade MOSFETs with lower RDS(on), lower RDS(on) results in better power efficiency and reduced heat generation.

Military Standard Low RDS(on)
TUF MOSFETs V V
Other MOSFETs X X

Onboard M.2 Port

ASUS TUF M2 Port
Never be left behind again with on-board m.2 memory

M.2 up to 32Gbps: With x4 PCI Express 3.0/2.0 bandwidth, TUF X299 Mark 2's dual M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.

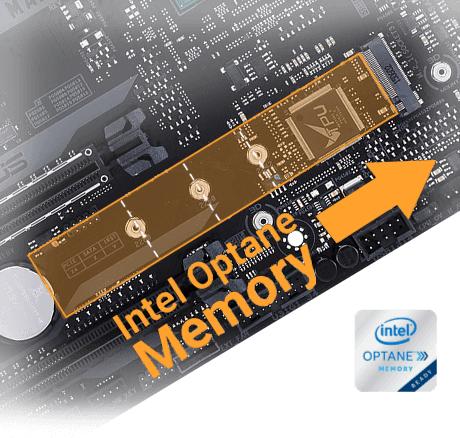

Intel Optane memory: Intel Optane is a revolutionary non-volatile memory technology supported by TUF X299 Mark 2. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Intel Gigabit LAN

Gigabit LAN
More throughput, less CPU usage and great gaming experiences

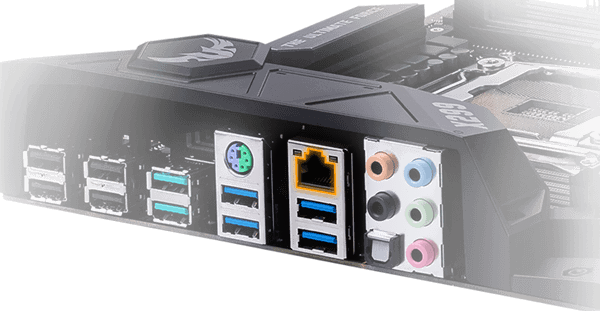

Don't let slow networking disrupt your workflow! With Intel Gigabit Ethernet connectors, TUF X299 Mark 2 keeps your data moving swiftly and efficiently. With LAN port, you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if something should go wrong — so access to your files is always fast, efficient and uninterrupted.

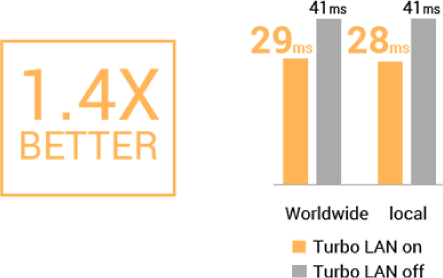

Turbo LAN X299 Technology

Turbo LAN X299 Tech
Network-optimization software for customizable packet prioritization

Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface, and reduces network lag – by up to 1.45X!

ASUS TUF LANGuard

ASUS TUF LAN Guard
Military-grade LAN protection

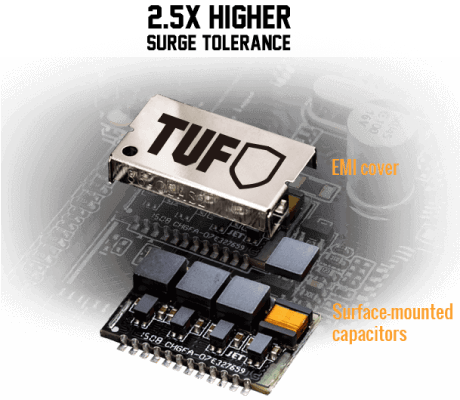

TUF LANGuard, a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput — protecting the motherboard from lightning strikes and static electricity.

Outstanding TUF Mk2 Audio

X299 TUF Mk2 Audio
Advanced Audio for Immersive Gaming and Media

TUF X299 Mark 2 utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts gain to ensure the optimal volume range for your headphones.

  • Audio shielding
  • Unique pop-reducing circuit
  • Integrated amplifier
  • Dedicated channel layouts
  • Premium Japanese-made audio capacitors

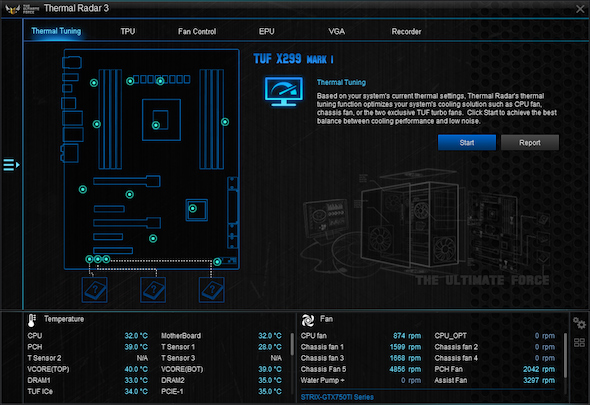

Thermal Radar 3

X299 therma lRadar 3

Instantly optimize the system's entire cooling profile with a single click.

X299 therma lRadar 3

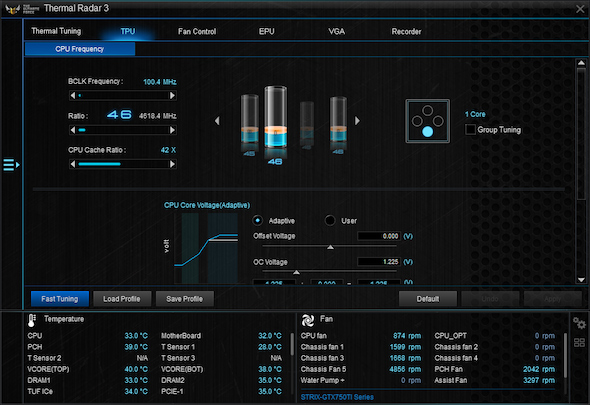

Unleash your PC's full performance potential with the ASUS TurboV Processing Unit (TPU). Besides offering the ability to fine-tune voltages, monitor stats, and adjust overclock parameters, TUF X299 Mark 2 provides additional thermal tuning options – Extreme Tuning and Stress Test — that let you test and optimize system stability and cooling performance.

X299 therma lRadar 3

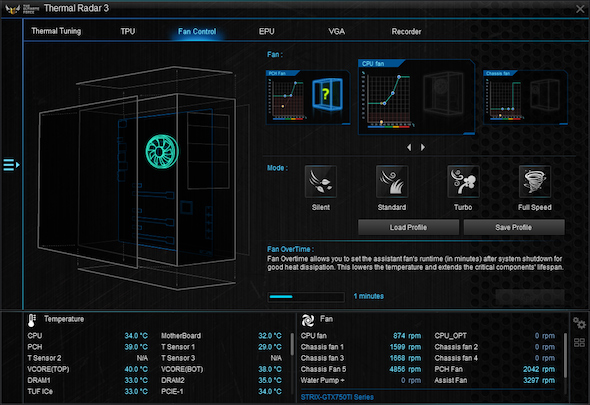

TUF X299 Mark 2 has customizable settings for its 10 fan headers, offering maximum control over your build's cooling and quietness. You can even monitor, manage and control the fans to create your perfect balance between quietness, cooling and performance.

X299 therma lRadar 3

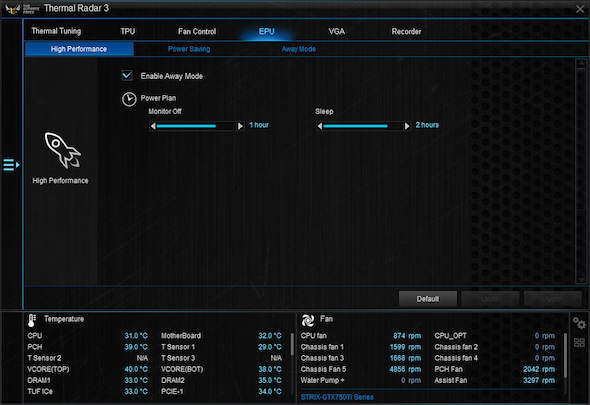

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

X299 therma lRadar 3

TUF X299 Mark 2 Thermal Radar 3 fan management feature has been expanded — allowing custom fan control on ASUS graphics cards (GTX700 and above) as well as case fans.

X299 therma lRadar 3

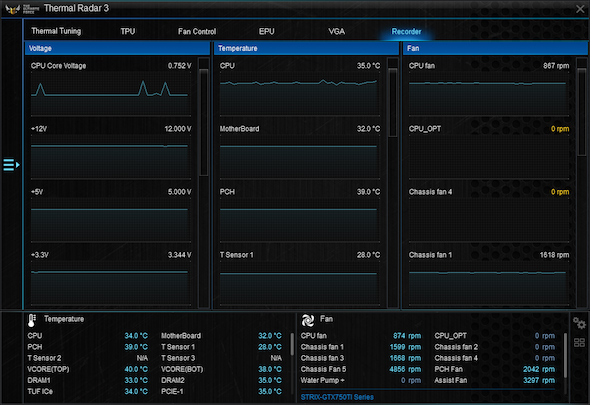

An integrated recorder logs critical voltage readings, temperatures and fan speeds over time – so you can review vital stats and make informed decisions for system settings and optimal operation.

Instant fan tuning, complete system cooling

Our Thermal Radar 3 software allows you to control connected chassis fans, water pumps, AIOs, and even the fans of ASUS graphics cards — all to provide ultimate cooling performance for gaming and productivity. Multiple onboard sensors also enable the temperatures of key components to be monitored in real time, so you can assess and optimize cooling efficiency.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4) [6+ Core] / Dual (2) [4 Core]
Memory Type (ECC) Non-ECC
Memory Type (R/U) RDIMM / UDIMM
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 3600(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 128GB (8x16GB) [6+ Core] / 64GB (4x16GB) [4 Core]
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 3-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 1 x PCIe 3.0 x4
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Start Technology
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x M.2_FAN Connector
  • 1 x MemOK! Button
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel(s) (Q-Connector)
  • 1 x Thermal sensor connector
  • 1 x Thunderbolt header
  • 1 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 2 x USB 3.1 Gen2 Type A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
Asus
Telephone:
01442 265548
