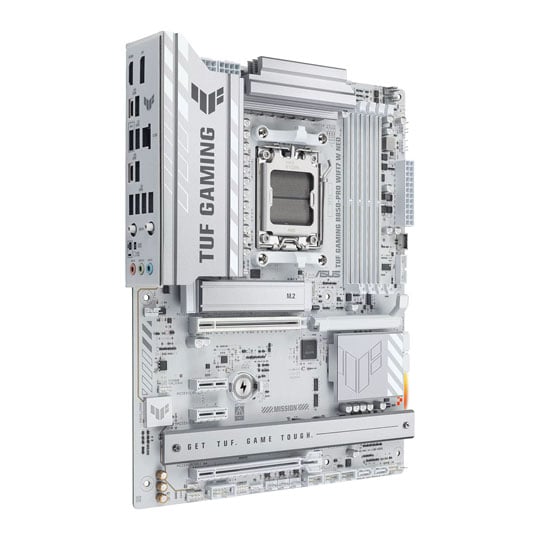

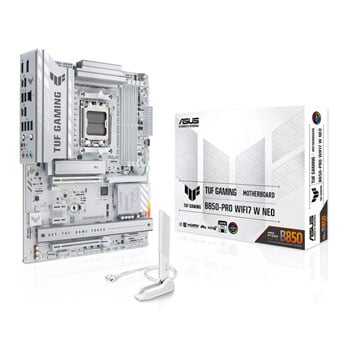

ASUS TUF GAMING B850-PRO WIFI7 W NEO AM5 DDR5 PCIe 5.0 ATX Motherboard

ASUS TUF GAMING B850-PRO WIFI7 W NEO Motherboard

ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

AI Advisor

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

AI Cooling II

Balance the thermals and acoustics of any build with a single click. An ASUS-exclusive algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Asynchronous Clock

For next-level frequency flexibility, the TUF GAMING B850-PRO WIFI7 W NEO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

AMD Precision Boost Overdrive (PBO)

This pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, this AMD algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-Layer Server-Grade Design

Built on a server-grade eight-layer blueprint, this motherboard's core is engineered for precision. Bus signals for PCIe 5.0 and DDR5 are clean and stable, thanks to controlled impedance and dedicated power/ground layers, while the stiffer structure enhances durability. The result is quieter signal behaviour and steadier performance under pressure.

ProCool Power Connectors

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Digi+VRM Control

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Server-Grade DRAM Enhancement

This motherboard features an enhanced memory slot layout that delivers high clock speeds and compatibility with high-capacity DDR5 kits. The refined design supports overclocking of up to 9000+ MT/s, helping you unlock the full potential of your DDR5 modules-whether you're pushing extreme-speed kits or maximizing entry-level sets.

DDR5 Dominance

For users looking to push well beyond stock DDR5 speeds, this motherboard is engineered for enthusiast-grade performance with broad AMD Extended Profiles for Overclocking (EXPO™) support and an upgraded memory design tuned for stability at ultra-high frequencies. Veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 Support

This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Enlarged VRM Heatsinks

The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

AIO Pump Header

An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.

Multiple Temperature Sources

Except for the CPU & CPU OPT fan headers, each fan header can be set to monitor and react to up to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed through Fan Xpert 4 or via the UEFI.
Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Fan Protection

A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

Superb Chipset Heatsink

An expanded surface area for the chipset cooler maximizes system performance and heat dissipation.

Enlarged M.2 Heatsinks

Three M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, front USB 20Gbps Type-C® connector, rear two USB 10Gbps Type-C® ports, front three USB 2.0 headers and Thunderbolt™ (USB4®) header support.

PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

Rear two USB 10Gbps Type-C®

Extensive USB support ensures connections to a wide array of external devices. This motherboard includes two USB 10Gbps Type-C® ports on the rear I/O panel that delivers transfer speeds of up to 10Gbps.

Front USB 20Gbps Type-C®

This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps.

Three USB 2.0 Headers

Three USB 2.0 headers ensure broad compatibility with AIO coolers, chassis fan hubs, front USB modules, and popular third-party components.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

M.2 Q-Release

The M.2 heatsink features a convenient switch to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup.

Clear CMOS & BIOS FlashBack

The Clear CMOS button quickly resets BIOS settings to factory default. lt can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

ESD Guards

ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge - well above the industry standard.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

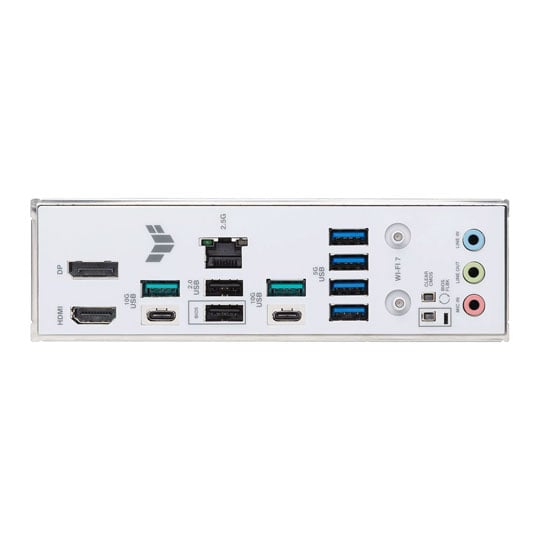

Stainless Steel Back I/O Panel

TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.

WiFi 7

The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

MLO Wizard

MLO Wizard assesses your environment for Multi-Link Operation support across your device, router and operating system, while also visualizing the current traffic capacity on each of your router's frequency bands.

2.5Gb Ethernet

On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

Realtek® 7.1 Channel Audio

This motherboard utilizes an audio codec designed in close collaboration with Realtek® - the Realtek® ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

DTS Audio Processing

DTS®Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

Bluetooth® LE Audio

The new Bluetooth LE Audio technology standard is a major leap in wireless sound, courtesy of the new LC3 audio codec that delivers higher quality and lower power consumption. It supports low-latency transmission and 3D spatial audio for clearer voice and more immersive gaming sound.

Outshine the Competition

A well-tuned system deserves a matching aesthetic. The TUF GAMING motherboard features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

Addressable RGB Gen 2 Header

Three addressable RGB Gen 2 headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors.
• Intelligent Control: ASUS AI Advisor, AI Networking II and AEMP to simplify setup and improve performance.
• Robust Power Solution: 14+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors.
• Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover.
• Latest M.2 Support: One onboard PCIe® 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with substantial cooling solutions.
• High-Performance Networking: On-board Wi-Fi 7 (802.11be) with Intel 2.5 Gb Ethernet.
• Immersive Audio: Realtek® ALC1220P 7.1 Surround Sound High Definition Audio.
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers.
