Scan code: LN129789 Manufacturer code: TUF GAMING B650-PLUS

ASUS TUF GAMING B650-PLUS AM5 DDR5 PCIe 4.0 ATX Motherboard

ASUS TUF GAMING B650-PLUS, AMD B650, AM5, DDR5, PCIe 4.0, 3x M.2, 2.5GbE, AMD EXPO™, ATX

Thumbnail 1 : ASUS TUF GAMING B650-PLUS AM5 DDR5 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASUS TUF GAMING B650-PLUS AM5 DDR5 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASUS TUF GAMING B650-PLUS AM5 DDR5 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASUS TUF GAMING B650-PLUS AM5 DDR5 PCIe 4.0 ATX Motherboard
Scan code: LN129789 Manufacturer code: TUF GAMING B650-PLUS
Order now and receive it by Monday, 4th March
Was: £219.98
£163.98
Get it Monday, 04 MarIn stock
FREE DELIVERY ON THIS ITEM
From £14.86 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £14.86
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £163.98
Total inc. interest: £178.27
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Mar to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

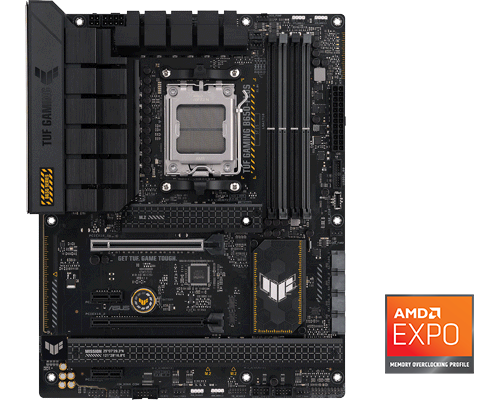

ASUS TUF GAMING B650-PLUS AM5 ATX Motherboard

ASUS

Ready For the 7000 SeriesASUS TUF GAMING B650-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

AMD B650Chipset

AM5CPU Socket

AMD Ryzen™ 7000 SeriesCompatible CPU

ATXForm Factor

Intelligent Control

Push the LimitsComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

PBO Enhancement

CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

Energy Efficient

All Around EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

EZ ModeEZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Advanced ModeAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

ASUS Armory CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.

Rock-Solid Performance

Teamed Power Stages12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

8+4 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

4K Recording

TUF ComponentsIncredibly durable military-grade components including chokes and capacitors which offer fantastic stability and long life.

Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Incredible Storage Opportunities

4K Recording

PCIe 5.0 ReadyTUF GAMING B650 motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

Keep Your Components Cool

Maximum Cooling

1. Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

2. Optimised M.2 Heatsink DesignAll M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

Cooler By Design

Comprehensive Fan Controls TUF GAMING B650 motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility in Armoury Crate or the award-winning ASUS UEFI BIOS.

Multiple Temperature Sources

Multiple Temperature SourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

4-pin headers

AIO Water-coolingAn integrated AiO system enables full control of PWM or DC water pumps, making it perfect for custom or self-contained cooling setups.

ROG fan controller

Smart Fan ProtectionA dedicated integrated circuit protects each fan header from excess heat and electrical currents.

ROG fan controller

4-pin PWM Fan headersEvery onboard header auto-detects any PWM or DC fan.

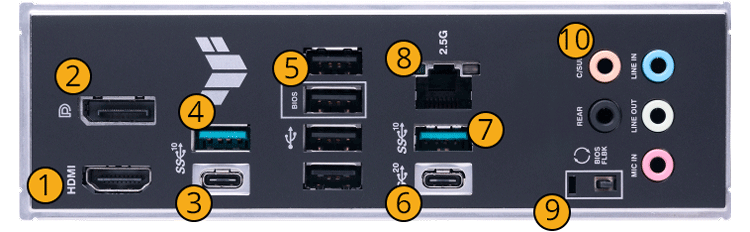

A Fully Comprehensive I/O

4K Recording

1: HDMI
2: DisplayPort
3: 1 x USB 3.2 Gen 2 Type-C
4: 1 x USB 3.2 Gen 1
5: 4 x USB 2.0
6: 1 x USB 3.2 Gen 2x2 Type-C
7: 1 x USB 3.2 Gen 1
8: Realtek 2.5G Ethernet
9: BIOS Flashback™
10: 7.1-ch Audio

Specifications
Core Specifications
Edition TUF GAMING B650-PLUS
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen5 x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 3 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 2.5 Gigabit LAN
Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN129789
Model Number TUF GAMING B650-PLUS
GTIN 4711081912767
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
