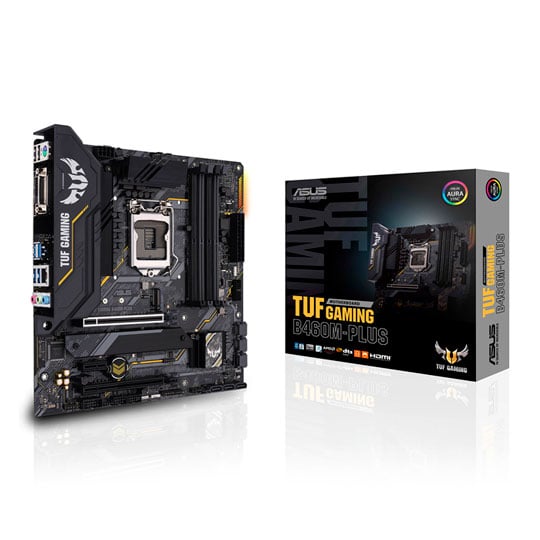

ASUS Intel B460 TUF Gaming B460M-PLUS Micro-ATX Motherboard

ASUS TUF Gaming B460M-PLUS, Intel B460, S 1200, DDR4, SATA3, Dual M.2, Crossfire, GbE, USB 3.2 Gen1, Micro-ATX

Thumbnail 1 : ASUS Intel B460 TUF Gaming B460M-PLUS Micro-ATX Motherboard Thumbnail 2 : ASUS Intel B460 TUF Gaming B460M-PLUS Micro-ATX Motherboard Thumbnail 3 : ASUS Intel B460 TUF Gaming B460M-PLUS Micro-ATX Motherboard Thumbnail 4 : ASUS Intel B460 TUF Gaming B460M-PLUS Micro-ATX Motherboard
Scan code: LN107757 Manufacturer code: TUF GAMING B460M-PLUS
£106.99Item currently awaiting an ETA
Pre order
From £9.61 / month (APR 14.9%)
Monthly Payment: £18.57
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £106.99
Total inc. interest: £111.38
Monthly Payment: £9.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £106.99
Total inc. interest: £115.26
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

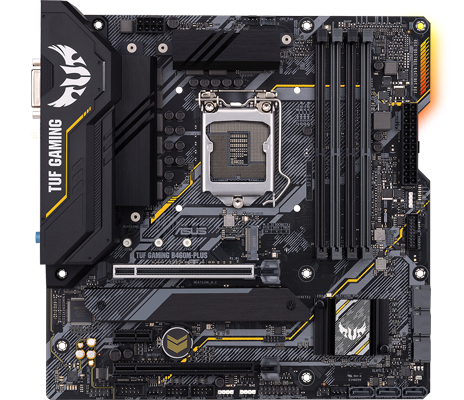

TUF GAMING B460M-PLUS 10th Generation Intel M-ATX Motherboard from ASUS

efef

A TUF Piece of Kit Introducing the all-new TUF Gaming B460M-Plus. TUF Gaming B460M-PLUS distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

Intel B460Chipset

LGA 1200CPU Socket

M-ATXForm Factor

Built to Take the Strain

POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to fuel the latest Intel® CPUs, plus support for faster memory and storage, TUF Gaming B460M-PLUS (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.

Power Delivery Enhancements

TUF Capacitors Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.

Power Delivery Enhancements

DIGI+VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

Power Delivery Enhancements

TUF ChokesCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.

Cooler by Design

Identify

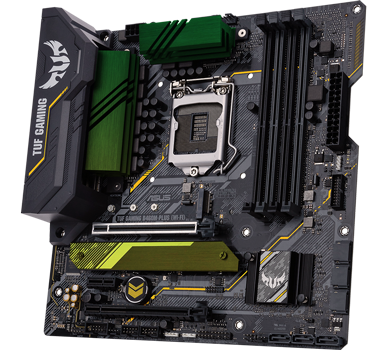

VRM HeatsinkA large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.

Thermal PadHigh-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

M2 HeatsinkThe M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Lightning Fast Storage with Dual M.2

M.2 Support

Dual M.2 (up to 32 Gbps)Dual M.2 slots support data-transfer speeds of up to 32 Gbps on the x4 PCI Express® 3.0 bandwidth, making it perfect for OS or application drives for quicker boot-up and app load times.

Get the Most from your Memory with Optimem

M.2 Support

ASUS OptimemRevisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

High Performance Networking

M.2 Support

Intel EthernetIntel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Little Things Make a Big Difference

Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OTUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

Stainless-Steel Back I/O

LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Outshine the Competition with ASUS Aura Sync

Your Motherboard, Your Way A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Breathe

Breathe

Colour cycle

Colour Cycle

CPU Temp

Smart

EQ Effect

Equaliser

Rainbow Effect

Rainbow

Stars Effect

Starry Night

Static Effect

Static

Strobing Effect

Strobing

Specifications
Core Specifications
Edition TUF GAMING B460M-PLUS
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC S1200A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • DVI-D
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 4 x PCIe 3.0 x1
  • 4 x PCIe 3.0 x16
  • 4 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x AAFP
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DisplayPort
  • 1 x DVI
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
