ASUS TUF GAMING B450M-PLUS II AM4 mATX Motherboard
Durable. Stable. Reliable. The TUF Gaming B450M-PLUS II is designed, engineered and tested to thrive in conditions other motherboards would struggle, built from military grade components, an amped-up power and comprehensive cooling solutions like, VRM heatsinks, PCH heatsinks and Fan XPERT 2+ support. Combined with a single M.2 slot, USB 3.2 Gen2 Type-A and Type-C connectivity, and AURA SYNC RGB support the B450M-PLUS II has what it takes to deliver the rock solid performance with unwavering gaming stability that is required by Ryzen 3rd Generation CPUS.
Built to Take the Strain
POWER DELIVERY ENHANCEMENTS With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster storage and connectivity, TUF GAMING B450M-PLUS II is the perfect foundation for your next high-core-count battle rig.
DIGI+VRM The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
TUF ChokesCertified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
Cooler by Design
Multiple temperature sources Each header can be set to monitor and react to two user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

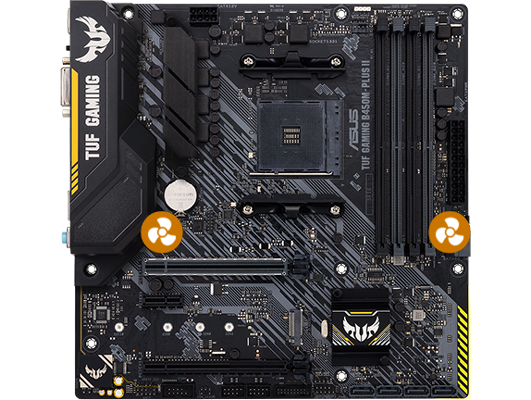

4-pin PWM/DC Fan All onboard chassis fan headers support PWM/DC fans.

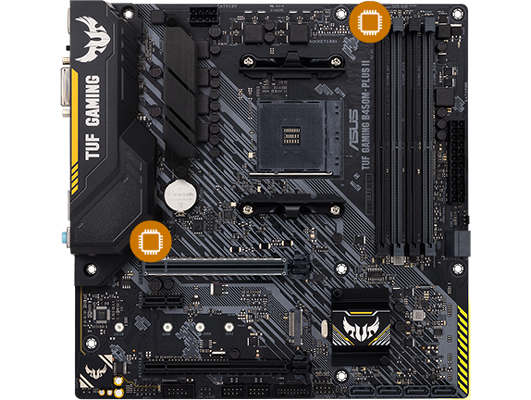

Smart Protection A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.
The Software that gives you Complete Control
ASUS Armory CrateArmoury Crate is a new software utility designed to give you centralised control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customise RGB lighting and effects for every compatible device in your arsenal and synchronise them with Aura Sync for uniﬁed system lighting effects. You can also turn on the AI Noise-Canceling Microphone function for crystal-clear in-game voice communication. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
Get the Transfer Speeds you Deserve
PCIe 3.0 M.2 StorageM.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.
Protection for Your PCIe Slots
ASUS SafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Connections at your Fingertips
Little Things Make a Big Difference
Trustworthy Stability and Compatibility TUF Gaming motherboards are designed to be easy to set up and configure just the way you want —even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
|Edition||TUF GAMING B450M-PLUS II|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC887 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||Not Supported|
|AMD CrossFire Support||2-Way CrossFire|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA3 / M.2|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Realtek RTL8111H (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||244 x 244 mm|
|Model Number||TUF GAMING B450M-PLUS II|
