End Of Life
Scan code: LN35791 Manufacturer code: SABERTOOTH X58

ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III

ASUS SABERTOOTH X58, Intel X58, S 1366, DDR3, SATA III - 6Gb/s, SATA, PCIe 2.0 (x16), ATX

Thumbnail 1 : ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III Thumbnail 2 : ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III Thumbnail 3 : ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III Thumbnail 4 : ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III

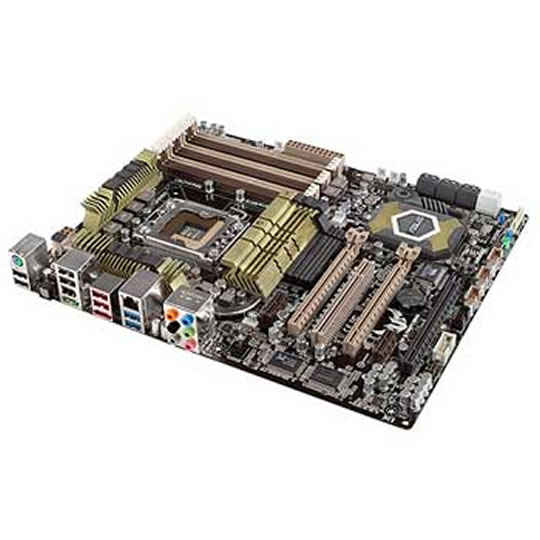

ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III : image 1

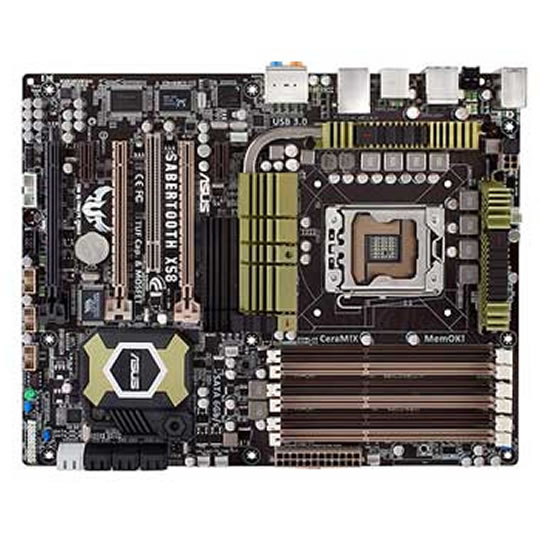

ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III : image 2

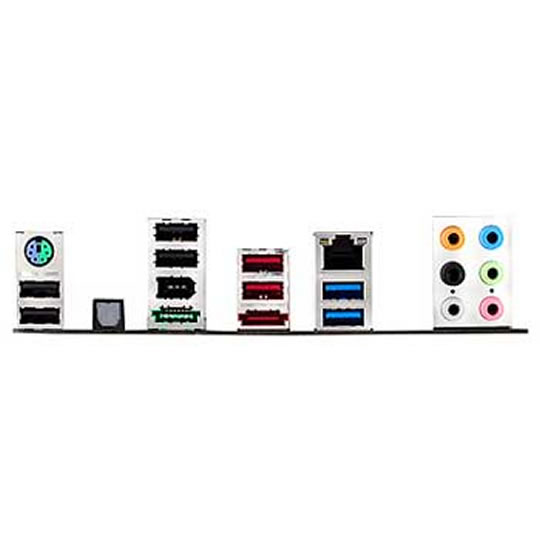

ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III : image 3
ASUS Sabertooth TUF X58 Motherboard, USB 3.0, SATA III : image 4
Scan code: LN35791 Manufacturer code: SABERTOOTH X58
End Of Life
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview NOW IN ABUNDANT STOCK AT SCAN!

Sabertooth X58 supports the latest Intel® Core™ i7 processors in an LGA1366 package with integrated memory controllers to support 3-channel (6 DIMMs) DDR3 memory. The Intel® X58 Express Chipset is one of the most powerful chipset designed to support the Intel® Core™ i7 Processors Intel® QuickPath Interconnect (QPI) supports with a system bus of up to 6.4 GT/s and a max bandwidth of up to 25.6 GB/s, providing improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. The Intel® Core™ i7 processor is one of the most powerful and energy efficient CPUs in the world. It also supports up to 36 PCI Express 2.0 lanes providing better graphics performance.

Innovative ceramics effectively conducts heat away from the system. It replaces traditional anti-oxidant to effectively dissipate heat with a microscopic irregular surface and enlarged area. Better cooling leads to an overall improvement in system stability. Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature, caused by different climate conditions in different geographic regions and system loading. Built-in variety of useful profiles offers flexible controls of fan speed to achieve a quiet and cool environment.

Users can generate a brutal performance even in the most challenging conditions with robust chokes, capacitors, and MOSFETs - certified through third-party, military-grade testing. TUF Chokes, also known as, "Alloy Choke", is made of a compound of various types of metal instead of standard iron. This enables the support of up to a massive 40A rated current, 25% higher than a conventional component. Furthermore, the single piece packaging also eliminates the emission of vibration noise, delivering superb characteristics as well as durability under extreme conditions. Features • Intel® LGA1366 socket for Intel® Core™i7 Processor Extreme Edition / Core™i7 Processor

• Intel® X58/ ICH10R

• CeraM!X Heatsink Coating Tech. - Larger area for heat dissipation with the revolutionary ceramics-coating technology

• TUF Components (Alloy Choke, Cap. & MOSFET; certified by military-standard) - Certified for Tough Duty

• E.S.P. [Efficient Switching Power Design] - Optimal power efficiency for key components

• True USB 3.0 & SATA 6Gb/s Support
