Scan code: LN129379 Manufacturer code: ROG STRIX Z790-I GAMING WIFI

ASUS ROG STRIX Z790-I GAMING WIFI DDR5 PCIe 5.0 Mini-ITX Motherboard

ASUS ROG STRIX Z790-I GAMING WIFI, Intel Z790, S 1700, DDR5, PCIe 5.0, 2x M.2, 2.5GbE, ax WiFi/BT, USB 3.2 Gen2, mITX

Thumbnail 1 : ASUS ROG STRIX Z790-I GAMING WIFI DDR5 PCIe 5.0 Mini-ITX Motherboard Thumbnail 2 : ASUS ROG STRIX Z790-I GAMING WIFI DDR5 PCIe 5.0 Mini-ITX Motherboard Thumbnail 3 : ASUS ROG STRIX Z790-I GAMING WIFI DDR5 PCIe 5.0 Mini-ITX Motherboard
Scan code: LN129379 Manufacturer code: ROG STRIX Z790-I GAMING WIFI
Order now and get it tomorrow, Mon 24th Jun
Was: £429.98
£369.98
Get it Tomorrow, 24 JunIn stock
From £18.07 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £33.52
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £369.98
Total inc. interest: £402.22
Monthly Payment: £18.07
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £369.98
Total inc. interest: £433.54
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.83 / month (APR 19.9%)
Delivery Options
  • By DPD On 24th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ASUS ROG Strix Z790-I GAMING WIFI Intel Mini-ITX Motherboard

ASUS ROG Strix Intel Z790 Series m-ITX Motherboard

GET READY FOR THE NEWEST GENERATION Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I’s power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.

Please note: This motherboard is compatible with Intel® Socket LGA 1700 – ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors.

Intel Z790Chipset

LGA 1700CPU Socket

Supports 12th & 13th GenIntel® Core™ Processors

Mini-ITXForm Factor

Teamed Power Architecture and Power Solution

Breakdown

1.Intel® Socket LGA 1700 for 13th & 12th Gen Intel® Core™ Processors,
and Pentium® Gold, and Celeron® Processors.​
2. Dual Channel Memory, 2 x DIMM Max. 64GB, DDR5 7600+ MT/s (OC) /
Supports Intel® Extreme Memory Profile (XMP) and OPTIMEM II
3. 10+1 Power Stages
4. Expansion Slots – • PCIe 5.0 x16 SafeSlot (x16, x8/x8)
5. Two M.2 Slots – • 1 x PCIe 5.0 (x4) M.2 2280   • 1 x PCIe 4.0 (x4) M.2 2280

Experience All-Round Performance

Push frequency and timings to the max Throughout its compact frame, the Strix Z790-I teems with engineering tweaks that boost CPU and memory performance and lay a potent foundation for full-size SSDs and graphics cards. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

features

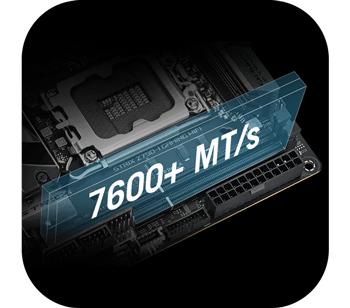

DDR5 Strength & AEMP IIROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix Z790-I.
AEMP II allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix Z790-I to push frequencies higher than ever before.

features

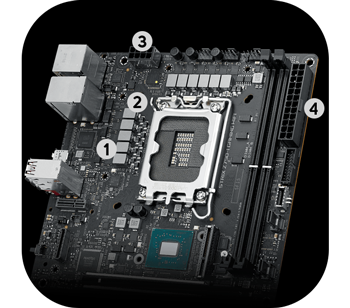

High-quality components 1. Power Architecture 10+1 power stages
2. Alloy chokes and durable capacitors
3. 8-pin PROCOOL II power connector
4. Ten-Layer PCB

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Expert Thermal Management

cooling

VRM Cooling Substantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through a ventilated top, so the VRM stays cool even in air-restricted systems.​

cooling

Thick M.2 heatsinks On-board M.2 slots are sandwiched between thick heatsinks over the chipset in a clever space-saving arrangement. Thermal efficiency is ensured by a miniature active cooling solution so high-performance drives maintain peak performance.​

cooling

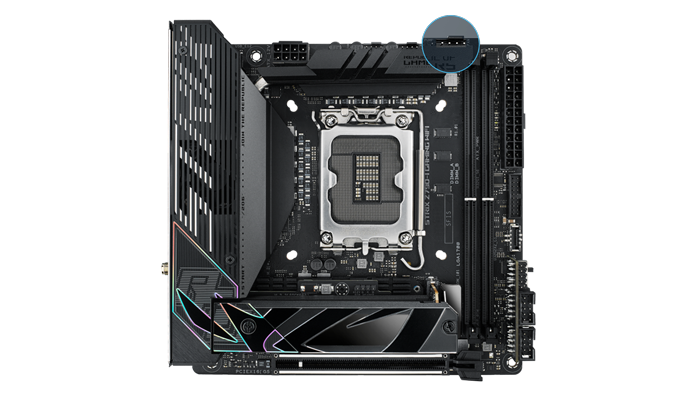

CPU fan header & AIO Positioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers. A dedicated PWM/DC header connects self-contained water-cooling setups.

cooling

4-pin fan headers Features a chassis fan header, that supports auto-detection of PWM or DC fans.

Undeniably ROG Strix

ID Design

The ROG Strix Ecosystem Awaits Linear vents and subtle grid-like textures give the Strix Z790-I a stealthy form that blends in the shadows of most SFF builds. But if a little lighting hits the side of its M.2 shroud, its true colours show in the form of a prismatic sheen glinting off of the highly-reflective aluminium that outlines the embossed ROG logo.

The ROG Strix Z790-I bears the same LGA 1700 socket as the Z690 models, so it is backward compatible with all coolers that supported the previous generation, including all AIO offerings from ASUS and ROG. Enjoy complementary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand. ​

Create a Fully Customized Gaming Setup

features

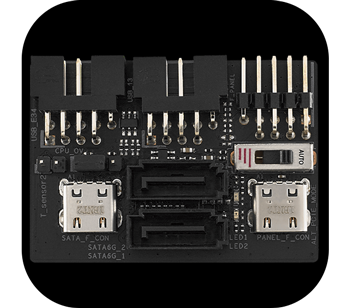

ROG FPS-II CardThe ROG FPS-II card groups I/O onto a vertically-mounted card, saving valuable on-board space and tidying cable management. Connections can be made before the card is installed, greatly simplifying installation in cramped quarters. On board are two SATA ports, front panel headers, two USB 2.0 headers (allowing for up to three USB 2.0 connections), a CPU_OV jumper for extreme overclocking, and an Alteration mode switch.

features

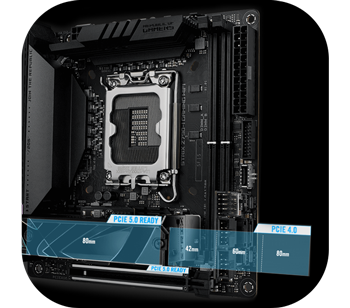

PCIe 5.0 PerformanceThe ROG Strix Z790-I offers end-to-end PCIe 5.0 support with a unique twist. Both the x16 expansion slot and one of the onboard M.2 slots are Gen 5-ready, but that M.2 slot has additional PCIe 4.0 routing to the chipset. If the M.2 slot is in Gen 5 mode, it can scale up to 16 GB/s read and write speeds.
If the M.2 slot uses PCIe 4.0, all of the Gen 5 bandwidth is allocated to the expansion slot for unfettered graphics card performance.

Supreme Networking Capability

Networking

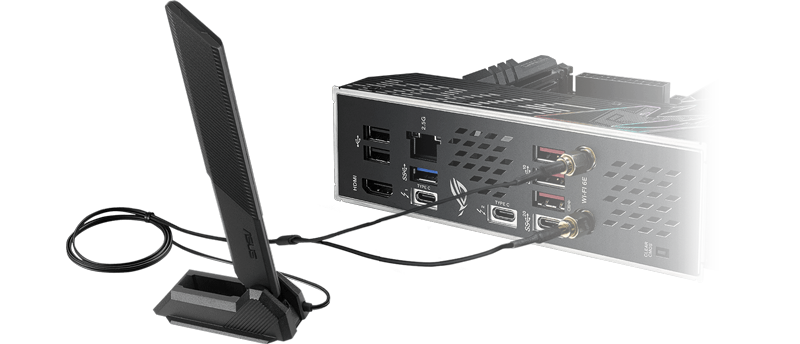

WIFI 6EOnboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel® 2.5 GB EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

Introducing the ROG Strix Hive

Control at your fingertips The all-new ROG Strix Hive brings critical controls and I/O within arm's reach, moving them from the cramped quarters of an SFF chassis to a compact peripheral that sits on the desktop. DIY-friendly buttons and diagnostic LEDs are brought front and center along with a large volume dial. On the sides, a varied group of I/O ports handle audio input and output and provide convenient connectivity for grab-and-go peripherals.

gaming

Gaming features • FLEXKEY   • Volume Control Dial   • AI Overclocking   • Q-LED   • BIOS Flashback™

ports

Connectivity features • USB 2.0 with BIOS Flashback™   • USB 3.2 Gen 2 (USB Type-C®)

audio

Audio features • USB Type-C® Hive Power and Data Connector   • Headphone Jack with Mic in   • Mic in Jack with Optical S/PDIF Out

Leading Connectivity

Armed with all the essentials The ATX experience thoughtfully scaled into mini-ITX: grace your desktop with the ROG Strix Hive for superb audio and control, build easier with the ROG FPS-II card, and make faster connections with the latest Thunderbolt and WiFi support.

Connectivity

Motherboard & ROG FPS-II Card Breakdown

I/O Ports • HDMI Port • 2 x USB 2.0 Ports
• 1 x USB 3.2 Gen 1 Port
• Intel® 2.5Gb Ethernet Port
• 2 x Thunderbolt™ 4 USB Type-C® Ports
• 3 x USB 3.2 Gen 2 Ports
(1 Port Supports ROG Strix Hive​)
• 1 x USB 3.2 Gen 2x2 Port (USB Type-C®)
• WiFi 6E
• Clear CMOS Button

Connectors & Headers • USB 3.2 Gen 1 Header
(Supports 2 x USB 3.2 Gen 1 Ports)
• USB 3.2 Gen 2x2 Connector (Supports USB Type-C®)
ROG FPS-II Card– • 2 x USB 2.0 Headers
(Supports 3 x USB 2.0 Ports)
• 2 x SATA Ports
• Front Panel Header • CPU_OV Header
• Thermal Sensor
• Alteration Mode Switch

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

Specifications
Core Specifications
Edition ROG STRIX Z790-I GAMING WIFI
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000
  • DDR5 - 5200
  • DDR5 - 5400
  • DDR5 - 5600
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7800+(OC)
Max. Memory Capacity 64GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x Temperature Sensor Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN129379
Model Number ROG STRIX Z790-I GAMING WIFI
GTIN 4711081947493
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
