ROG Strix Z690-I Gaming WiFi Intel 12th Generation Mini-ITX Motherboard

ASUS ROG Strix Z690-I Gaming WiFi Mini-ITX Motherboard

GET READY FOR THE NEWEST GENERATION Introducing the newest series of Z690 motherboards – ROG Strix Z690-I Gaming WiFi Mini-ITX from ASUS. The ROG Strix Z690-I Gaming WiFi packs premium-grade power delivery and triple-decker cooling into a compact mini-ITX form factor to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0. Plus, onboard WiFi 6E and PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process, so even novice builders can quickly get to serious gaming.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

Mini-ITXForm Factor

Teamed Power Architecture and Power Solution

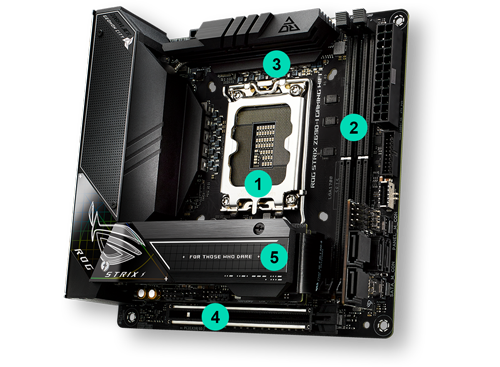

Breakdown

1. Supports the latest 12th Gen Intel® Processors
2. Dual Channel Memory, 2 x DIMM, DDR5 / Supports Intel® XMP and OPTIMEM II
3. 10+1 Power Stages, 105A
4. Expansion Slot: 1 x PCIe 5.0 x16 SafeSlot (x16) CPU
5. Two M.2 Onboard Slots: 1 x M.2 (PCIe 4.0 x4)   |   • 1 x M.2 (PCIe 4.0 x4 & SATA)

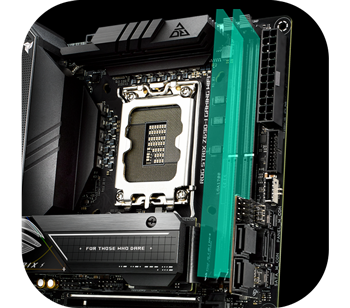

Experience DDR5 Overclocking Strength

Push frequency and timings to the max Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the ROG Strix Z690-I Gaming WiFi breaks performance limits with a stacked suite of overclocking parameters for both high-speed kits and entry-level memory modules that have a locked power management integrated circuit (PMIC).

features

A DEDICATED CIRCUIT FOR DDR5 MEMORYOrdinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage special onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

features

High-quality components 1. 10+1 power stages and low-side MOSFETS
2. Alloy chokes and durable capacitors
3. PROCOOL II power connector
4. DIGI+ power control (VRM)
5. Multi-layered 10 layer PCB

AI Overclocking at a Glance

Intelligent Motherboard ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition. Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits.

features

Designed by ExpertsFor each new motherboard platform, ROG in-house experts painstakingly profile thousands of processors and system configurations to hone the highly advanced algorithm of AI Overclocking.

features

Predictive EdgeThe algorithm analyses your CPU and system cooling, and then defines optimal voltage and frequency settings. Predicted values can be applied manually or engaged automatically to save time.

features

Real-time AdjustmentsOnce activated, the AI Overclocking utility continually tracks vital system stats, making profile adjustments to account for changes in system usage or ambient temperature.

Top-level PC Performance Demands Exceptional Cooling

cooling

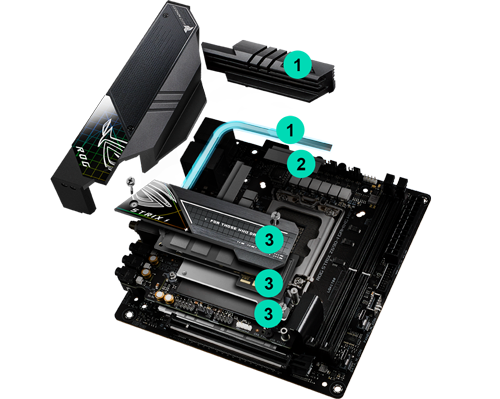

Cooling innovation Connected by an L-shaped heat pipe, the two VRM heatsinks and aluminum I/O cover provide ample mass and surface area to deal with the thermals of Intel’s latest processors. Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
The new triple-decker heatsink is cleverly designed to stack two M.2 slots, both with Q-Latch and full-size, double-sided heatsinks with thermal pads. And there’s a beefy chipset heatsink at the bottom to deliver great cooling performance.

1. Integrated I/O Cover & VRM Heatsinks
2. Thermal Pads
3. Triple-decker heatsink

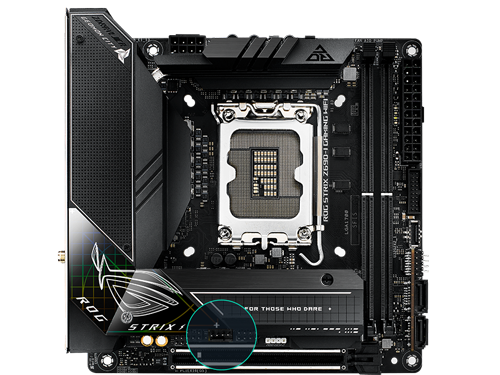

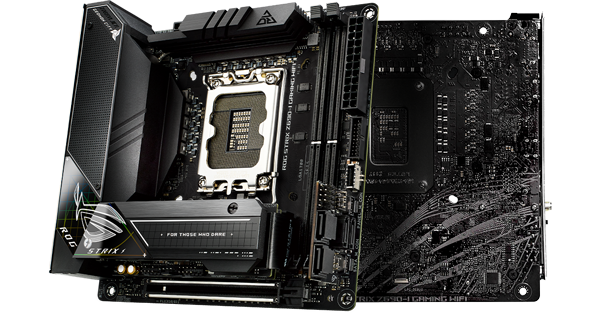

Play in Style

Style

Undeniably ROG Strix The ROG Strix Z690-I Gaming WiFi design language is defined by futuristic grids and meshes that may seem low-key at first, until users gaze upon the lower left-hand corner that glows with an iridescent grid pattern.

Expert Thermal Management

Cooling Solution ROG Strix Z690 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.

cooling

The most comprehensive cooling options ever A dedicated pair of PWM/DC fan headers for CPU coolers. A dedicated PWM/DC header for self-contained water-cooling setups.

cooling

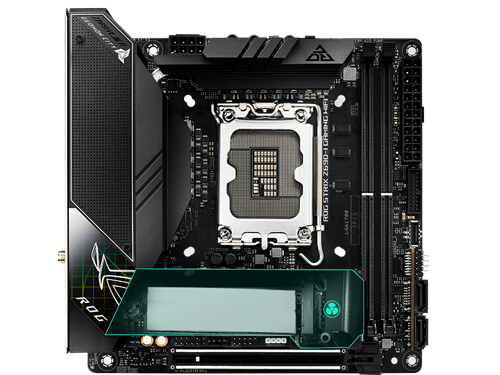

M.2 heatsink and backplate Keeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability. Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVMe SSDs.

cooling

4-pin PWM/DC fan headers Headers that supports auto-detection of PWM or DC fans.
*Support ASUS HYDRANODE

Create a Fully Customized Gaming Setup

features

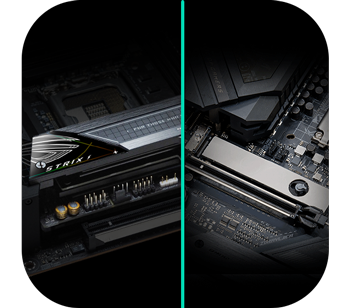

M.2 Q-LATCH, WITH EASY DIY IN MINDThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws. To enable a smooth DIY experience, two stacked M.2 slots are secured by a connector and a set of screws.

features

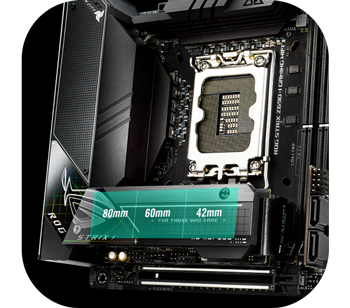

PCIe PerformanceROG Strix Z690-I Gaming WiFi features two onboard M.2 slots, both of which supports wickedly fast PCIe 4.0 drives for provide maximum storage flexibility and lightning-fast data speeds available with the latest Intel processors.

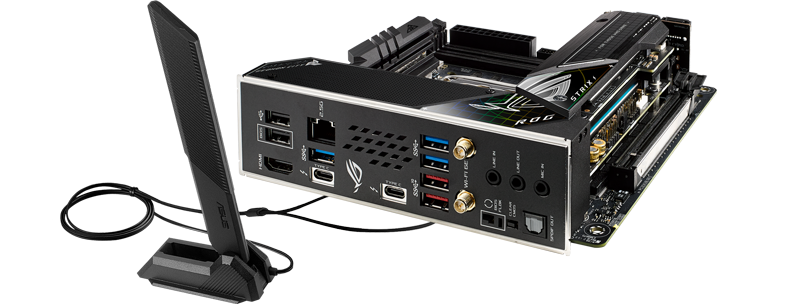

Supreme Networking Capability

Networking

WIFI 6E (802.11 AX)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

Intel® 2.5 GB EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, delivering speeds up to 2.5X faster standard Ethernet connections for faster file transfers, low-lag gaming and high-res video streaming.

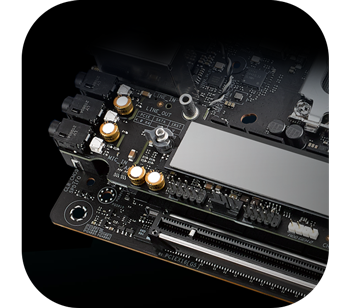

Fine-quality Components for Exceptional Clarity & Fidelity

Audio

Unique Design Features for Powerful Audio ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-I Gaming WiFi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones. ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment.

Built with Leading Connectivity

features

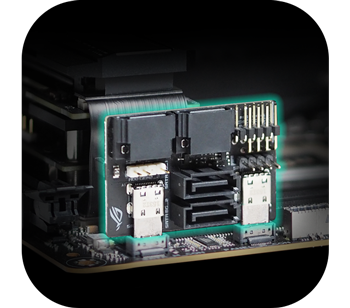

ROG Front Panel SATA CardThe ROG Strix Z690-I Gaming WiFi comes with an expansion card that provides additional functionality including four SATA ports, one ARGB lighting header, and connectors for a front panel header and a PC speaker. This efficient use of space enables builders to construct some of the most compact PC builds with full feature, or could also connect the power button via the 2-pin Power_BTN onboard for even more compact builds.

features

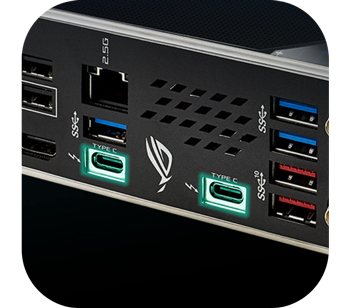

Dual Thunderbolt™ 4 PortsMini-ITX systems often find homes in entertainment centers for HTPC duty. The ROG Strix Z690-I Gaming WiFi stands ready with dual Thunderbolt™ 4 USB C ports on the rear I/O panel whose bidirectional 40 Gbps connectors can handle two external 4K displays at once, plus a variety of other compatible accessories.

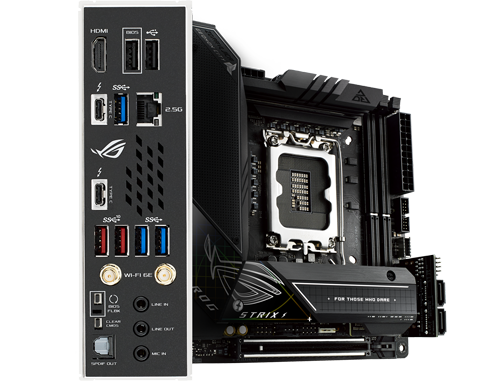

Full Connectivity Breakdown

Connectivity

Armed with all the essentials 1. HDMI Port   |   2. 2 x USB 2.0 Ports   |   3. Intel® 2.5Gb Ethernet   |   4. 3 x USB 3.2 Gen 1 Ports
5. 2 x Thunderbolt™ 4 USB Type-C® Ports   |   6. 2 x USB 3.2 Gen 2 Ports   |   7. Intel® Wi-Fi 6E
8. BIOS FlashBack Button   |   9. Clear CMOS Button   |   10. Optical S/PDIF OUT
11. 3 x LED-illuminated Audio Jacks   |   12. 2 x USB 3.2 Gen 1 Ports   |   13. 1 x USB 3.2 Gen 2x2 Type-C® Port
14. 4 x SATA 6Gb/s   |   15. 2 x USB 2.0 Ports

Control your Rig with Armoury Crate

Armoury Crate

account management software Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Specifications
Core Specifications
Edition ROG STRIX Z690-I GAMING WIFI
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x PCIe 5.0 x16
SATA Support N/A
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 4 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 3 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 170 x 170 x 50 mm
Note
Additional Information
Scan Code LN120786
Model Number ROG STRIX Z690-I GAMING WIFI
GTIN 4711081460961
