Scan code: LN114069 Manufacturer code: ROG STRIX Z590-I GAMING WIFI

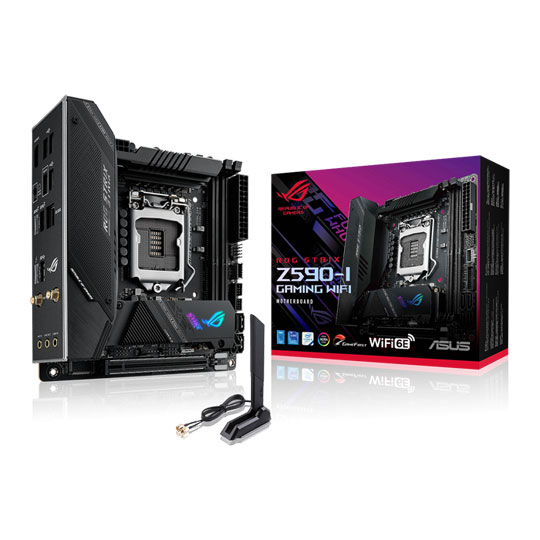

ASUS ROG STRIX Z590-I GAMING WIFI Intel Z590 PCIe 4.0 mITX Motherboard

ASUS ROG STRIX Z590-I GAMING WIFI, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, 2.5GbE, ax/BT5.2, TB4, Mini-ITX

Thumbnail 1 : ASUS ROG STRIX Z590-I GAMING WIFI Intel Z590 PCIe 4.0 mITX Motherboard Thumbnail 2 : ASUS ROG STRIX Z590-I GAMING WIFI Intel Z590 PCIe 4.0 mITX Motherboard Thumbnail 3 : ASUS ROG STRIX Z590-I GAMING WIFI Intel Z590 PCIe 4.0 mITX Motherboard Thumbnail 4 : ASUS ROG STRIX Z590-I GAMING WIFI Intel Z590 PCIe 4.0 mITX Motherboard
Scan code: LN114069 Manufacturer code: ROG STRIX Z590-I GAMING WIFI
£319.98
Order now and get it tomorrow, Mon 25th Oct
From £15.36 / month (APR 14.9%)
Monthly Payment: £28.73
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £319.98
Total inc. interest: £344.71
Monthly Payment: £15.36
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £319.98
Total inc. interest: £368.61
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 25th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

ROG Strix Z590-I Gaming WiFi Intel 11th Generation ITX Motherboard

ASUS ROG Strix Z590-I Gaming WiFi ITX Motherboard

BUILT FOR PERFORMANCE GAMINGThe incredibly powerful ROG Strix Z590-I Gaming WiFi is an ITX motherboard that is designed with advanced power delivery and enhanced cooling to manage with the strains of 11th Generation Intel® Core™ processors. Along with Intel® Wi-Fi 6E and PCI Express® 4.0 M.2 for super-fast transfer speeds and storage. Strix Z590-I Gaming WiFi features Two-Way AI Noise Cancellation to guarantee clear communication in any situation. It also looks good, with the dark, stunning colour scheme in contrast to the brightly lit Aura Sync RGB lighting.

Please note: This motherboard is compatible with Intel® Socket LGA 1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

Intel Z590Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible Processors

ITXForm Factor

Storage and Memory Advantages

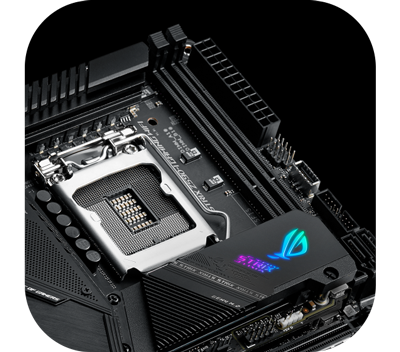

memory

Optimem IIROG Strix Z590-I Gaming WiFi supports up to 64GB DDR4 Dual channel memory. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.

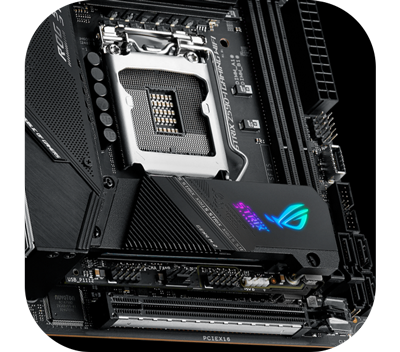

pcie 4

PCIe 4.0-ReadyROG Strix Z590-I Gaming WiFi features two onboard M.2 slots, one of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs.

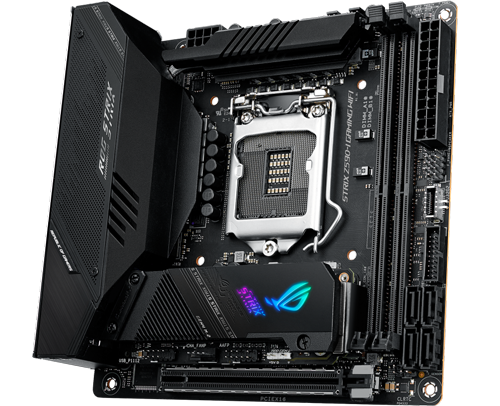

Optimized ASUS Thermal Design

cooling design

Aluminium I/O and VRM Heatsink ROG Strix Z590 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS. Both heatsinks also integrate a high-surface-area aluminium I/O cover which helps dissipate heat. With two skived fins, L-shaped heatpipe, two onboard M.2 heatsinks, including an M.2 backplate and a skived fin for the PCIe 4.0 M.2 slot – the Strix Z590-I certainly stays cool.

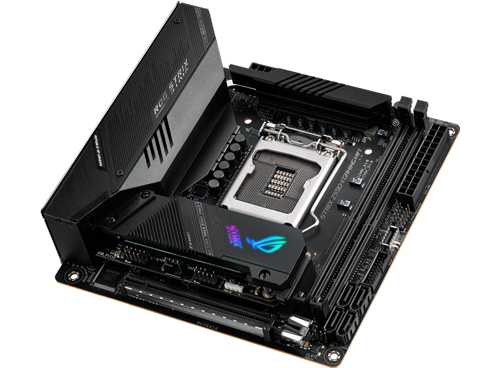

Experience ROG SupremeFX

Audio

exceptional clarity and fidelity for the best sound quality ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-I Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components.

TWO-WAY AI NOISE CANCELLATION This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.

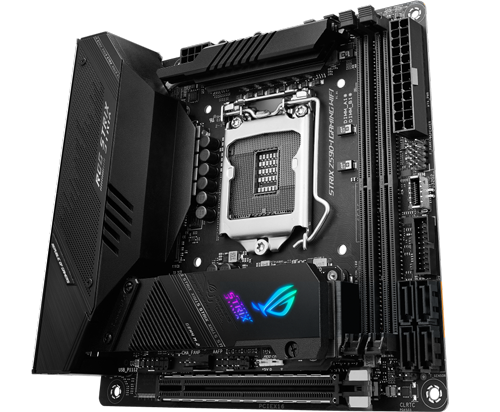

Undeniably ROG Strix Style

RGB board

Outshine the Competition ROG Strix Z590-I Gaming WiFi embodies the ROG spirit with its futuristic cyberpunk-inspired design elements and two-tone silver-and-black finish. With built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs, as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

ROG Strix Z590-I Gaming WiFi's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

AURA SYNC

Static

AURA SYNC

Breathing

AURA SYNC

Strobing

AURA SYNC

Rainbow

AURA SYNC

Colour Cycle

AURA SYNC

Starry Night

AURA SYNC

Music

AURA SYNC

Smart

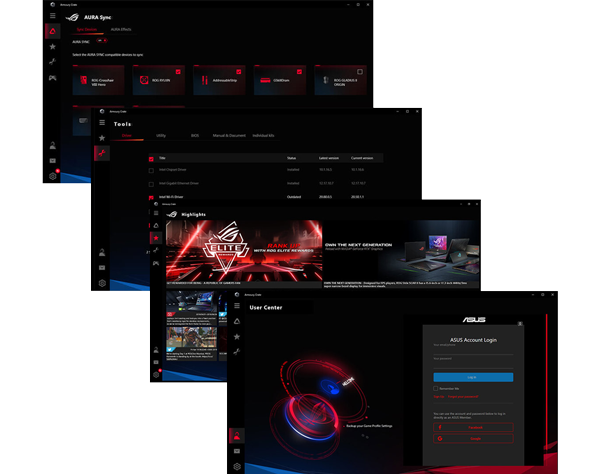

Control your Rig with Armoury Crate

Armoury Crate

account management software This new software utility is designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

Bundled third-party software like AIDA64 and MemTest86 allow you to benchmark individual components or the entire system. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics

AI Overclocking

AI Overclocking

Designed by expertsAt the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.

AI Overclocking

Predictive edgeThe algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then automatically applies these settings to guide the clocking process, balancing frequency and voltage.

AI Overclocking

Real-time adjustmentsThe software monitors workload, system temperature, fan speed and power draw at one-minute intervals, and makes real-time adjustments to ensure ongoing optimal performance.

AI OVERCLOCKING AT A GLANCE ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.
Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI Cooling Features

AI Cooling

CPU temperature detectionAI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

AI Cooling

Automated optimizationUnder stable system loads, the software automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.
*Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / M.2_FAN / H_AMP / RAD_FAN

AI Cooling

Ongoing monitoringAI Cooling continues to monitor the system and adjust fan speed based on current load.

SELF-ADAPTIVE FAN TUNING ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature. AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls. For those who prefer manual control, AI Cooling provides reference points on a graph, detailing fan speed in relation to temperature to provide a guide for fan settings.

AI Networking Features

AI Networking

IdentificationGameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

AI Networking

BoostGameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you super-smooth online gameplay – even when you're streaming high-quality video or transferring large files.

AI Networking

VisualizationAn intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.

how does it work? The proprietary ROG GameFirst VI utility is designed to help all users – beginners, experts, and everyone in between – optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

Networking and Leading Connectivity

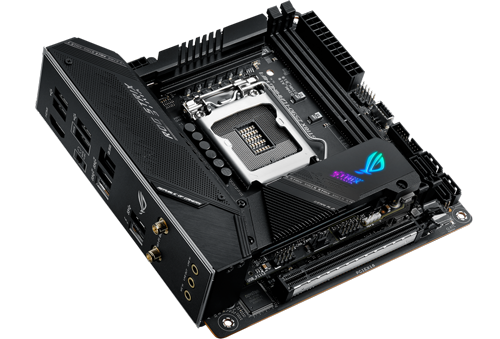

WiFi Antenna

Intel® WiFi 6E(802.11 ax)Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultra-fast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

Intel 2.5 Gb EthernetOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Unbelievable Power Design

Power DesignDigital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

Teamed Power Stages8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

ProCool II Power ConnectorThe ASUS ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines. Metal armor improves heat dissipation, and lower impedance helps prevent hotspots and improves reliability.

Digi+ Power ControlThe built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

TOP TIER PERFORMANCE ROG Strix Z590-I Gaming WiFi is armed with up-rated power delivery and optimized cooling to enable top-tier performance for gaming. Fully equipped with intelligent controls for easy management of overclocking, cooling and networking settings, Strix Z590-I Gaming WiFi also features Two-Way AI Noise CancelLation for crystal-clear in-game communication.

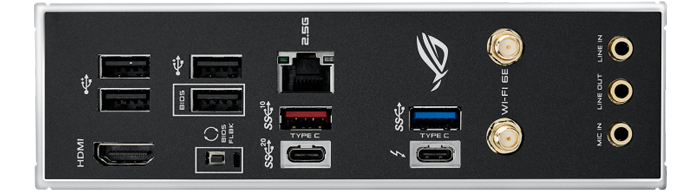

Z590-I Gaming WiFi Motherboard's Full Connectivity

Ports

DIY Friendly Design This incredible motherboard features a DIY-friendly design with a pre-mounted I/O shield, BIOS FlashBack™ button and Flexkey. Along with the best gaming connectivity as it supports HDMI™ 2.0, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C®. Featuring 8 Rear USB Ports: 1 x Thunderbolt™ 4 port(s) (1 x USB Type-C®) with up to 5V/3A, 15W charging support.

Strix Ecosystem
Specifications
Core Specifications
Edition ROG STRIX Z590-I GAMING WIFI
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4700(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5133(OC)
  • DDR4 - 5333(0C)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.0
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel 802.11ax WiFi + BT5 Module
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x BIOS Flashback Button
  • 1 x HDMI
  • 1 x Line In (LED-Illuminated)
  • 1 x Line Out (LED-Illuminated)
  • 1 x Mic In (LED-Illuminated)
  • 1 x Thunderbolt 4
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note Intel® 11th Gen processors supports PCIe 4.0
Additional Information
Scan Code LN114069
Model Number ROG STRIX Z590-I GAMING WIFI
GTIN 4711081097952
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
