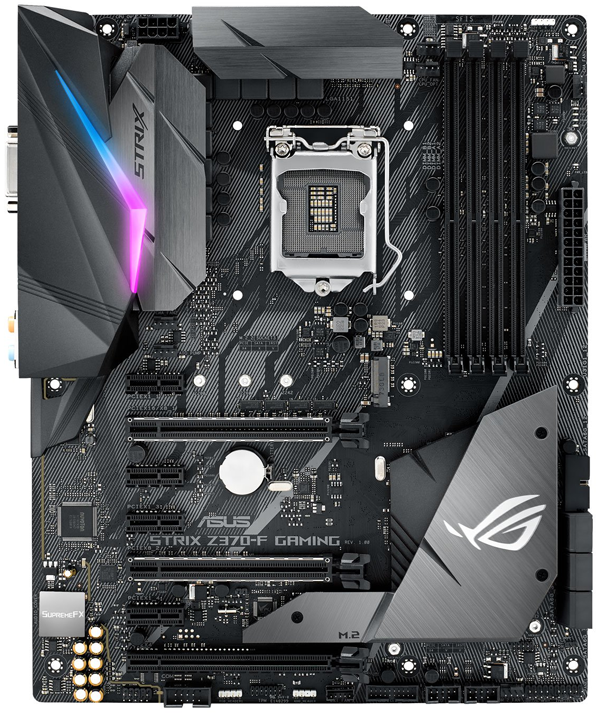

ASUS Intel ROG STRIX Z370-F Coffee Lake GAMING ATX Motherboard

ASUS ROG STRIX Z370-F GAMING, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, GbE, USB3.1 A+C, ATX

ASUS
Scan code: LN84735 Manufacturer code: 90MB0V50-M0EAY0 Request call
£197.48
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £11.50 By DPD On 23rd Oct 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

ASUS Z370 Gaming Motherboard - ROG Strix Z370-F GAMING - Intel 8th Gen

ATX Gaming Motherboard - 300 Series

The all new ROG Strix Z370 motherboard is ready to do battle, inspired by the sharpest blades and premium colourways to match any of your moods. The ROG engineering allows you to push the performance as for as you dare. Ready for the latest 8th Gen Processors. this Z270-F Gaming is fully loaded with overclocking and cooling innovations to allow you to get the best out of all of your components. In addition the AURA RGB lighting and SupremeFX audio rounds the ROG Strix Z370-F Gaming motherboard off with great looks and sound.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

8th Gen Only
Compatable CPUs

ATX
Form Factor

Features on the Strix Z370

  1. USB 3.1 Gen2 (1x Type-A + 1x Type-C)
  2. Intel® I219-V / LANGuard / GameFirst IV
  3. 2x PCIe 3.0 x 16 SafeSlots (Support x16, x8/x8) / 1x PCIe 3.0 x 16(at x4 mode) / 4x PCIe 3.0 x 1
  4. T-sensor Header
  5. SupremeFX
  6. 2x Aura RGB headers
  7. DDR4 4000MHz (O.C.) 4x DIMM, Dual-channel Support XMP
  8. Intel® Socket 1151
  9. M.2 Socket 3 Type M (2242-2280) Support PCIe 3.0 x4 Mode
  10. 6x SATA 6G ports
  11. M.2 Socket 3 Type M (2242-2280) Support SATA & PCIe 3.0 x4 modes
  12. M.2 fan header

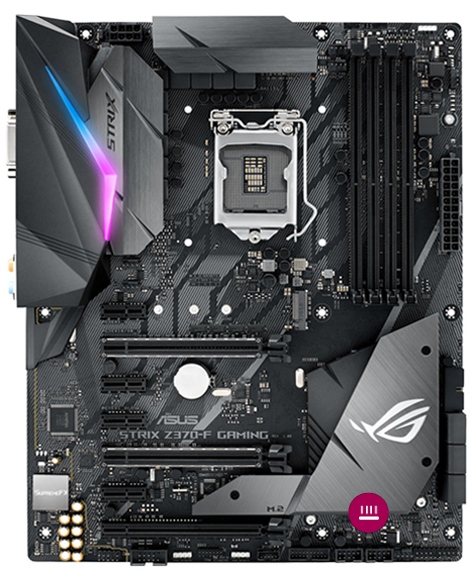

  13. 1x Addressable header

Beyond VR Ready

Complete your Immersion

ROG Strix Z370-F Gaming is VR Ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime Z370-A has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

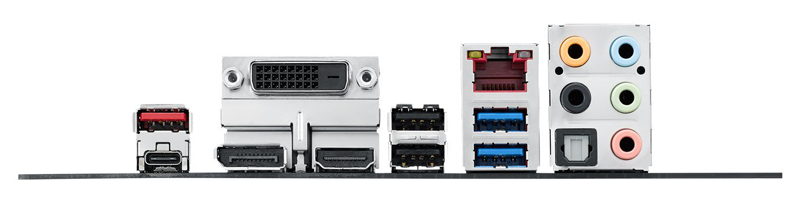

Back Panel Connections

1 x DVI-D | 1 x DisplayPort | 1 x HDMI | 1 x LAN (RJ45) port(s) | 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM | 2 x USB 3.1 Gen 1 (blue) | 2 x USB 2.0 | 1 x Optical S/PDIF out | 5 x Audio jack(s)

AURA Sync RGB LED Lighting

AURA - Static

Static

AURA - Breathing

Breathing

AURA - Strobing

Strobing

AURA - Rainbow

Rainbow

AURA - Colour Cycle

Colour Cycle

AURA - Comet

Comet

AURA - Flash & Dash

Flash & Dash

AURA - Wave

Wave

AURA - Glowing Yo Yo

Glowing Yo Yo

AURA - Starry Night

Starry Night

AURA - Music Effect

Music Effect

AURA - Temperature

Temperature

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full RGB control with a variety of functional presets for the built-in RGB LEDs as well as the LED strips connected to the onboard RGB headers.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Cooler by Design

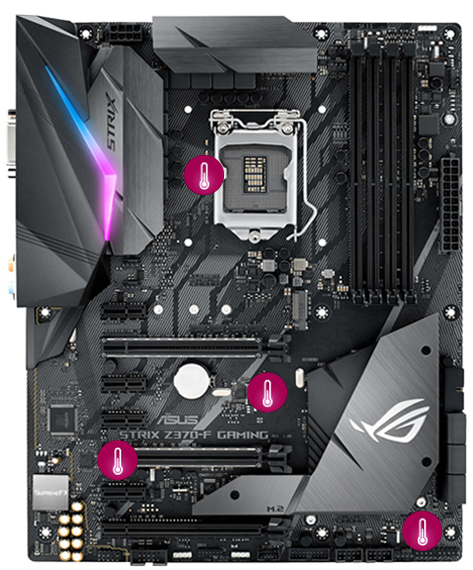

Multiple Temperature Sources

Each header can be set to monitor and react to three thermal sensors, and via Fan Xpert 4 you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

4-pin PWM/DC fan

Each onboard header supports auto-detection of PWM or DC fans.

Precise Digital Power Control

Includes three additional DC or PWM fan headers, plus three thermal-probe headers.

AIO Pump

A dedicated PWM/DC header for self-contained water-cooling setups.

Overclocking DDR4 RAM

strength in numbers

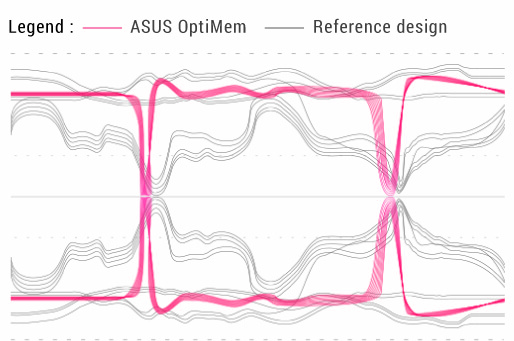

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.

Ultrafast M.2 Connectivity

Speed up with onboard M.2 up to 32Gbps

Dual PCIe 3.0 x4 M.2 slots provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to three PCIe 3.0 storage devices via two M.2 slots and a PCIe x16 slot to enjoy the world's fastest data-transfer speeds. The ROG Strix Z370-F Gaming is also equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build

Intel® Optane™ Memory

Advanced performance with the Optane Cache Memory

Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z370-A. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

USB 3.1 Gen 2 Type-C & A

Ultimate-speed 10Gbps with USB 3.1 Gen 2

With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

Intel Gigabit Ethernet

More throughput, less CPU usage

ROG Strix Z370-F features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

ASUS Motherboard LANGuard

Pumped-up throughput, Best Surge Protection

LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Strix Z370F Gaming's connection and deliver pumped-up throughput, plus electrostatically guarded and surge-protected components (ESD Guards) for 1.9x-greater tolerance to static electricity and 2.5x-greater protection (up to 15KV) against surges!

5-Way Optimisation

One-click overclock and cooling

ASUS 5-Way Optimisation makes your PC smart. One click takes care of complex tuning, dynamically optimising essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig. An automated tuning utility that optimises overclocking and cooling profiles for your unique system configuration. Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks. Stress test function helps optimise and overclock for CPU- or memory-centric workloads.

CPU Performance Boost

Unleash your PC's full performance with the ASUS AI Suite 3 utility. The TurboV Processing Unit (TPU) is the intelligence behind our automated system-tuning utility, offering the ability to fine-tune voltages, monitor system stats, and adjust overclock parameters for optimal performance.

All-round Energy Efficiency

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible Cooling Controls

With Prime Z370-A you have comprehensive control over fans, water pumps, and even all-in-one (AIO) coolers ― all via Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.

Precise Digital Power Control

Digi+ delivers real-time control over voltage droop, switching frequency and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.

App specific Optimisation

Whether you're a professional designer or hardcore gamer, you'll feel the benefit of the ASUS-exclusive Turbo App. This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritise network data and optimise audio settings at app level ― so your Prime Z370-A system is perfectly optimised for whatever you're doing.

SafeSlot Core

Protect your graphics card investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Built to Last

Q-LEDS

Onboard LEDs to Indicate the power status, and problems with the CPU, memory, graphics card or boot device for quick diagnosis.

CPU Install Tool

Three-step simplicity and safety—just pop your CPU in the special tool; insert the tool directly into the CPU socket; close the latch; then you're good to go!

Durable component

Fine-quality, super-tough components are our watchwords. We fit only superior chokes, plus durable capacitors engineered to resist extreme temperature variations of between -55℃ and 105℃ —110% better than the industry standard.

LANGuard

DRAM Overcurrent Protection

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

LANGuard

Digi+ VRM

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

LANGuard

Stainless-Steel Back I/O

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide assure a lifespan that's 3X longer than ordinary panels.

SupremeFX Motherboard Audio

ROG Strix's SupremeFX audio technology has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever recording quality — and 120dB on line-out for crystal-clear sound! We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!

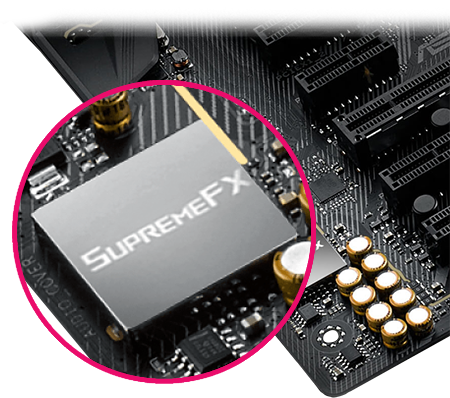

Audio cover

Effective shielding preserves the integrity of audio signals for the best quality.

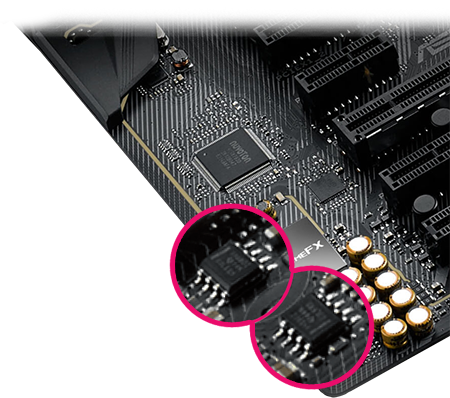

Dual Op Amplifiers

One op amp adds voltage gain while the other works as a buffer. They're capable of driving 32-600Ω headphones effortlessly.

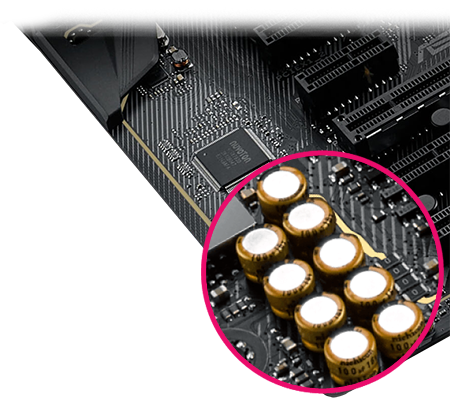

Premium Nichicon™ audio capacitors

Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

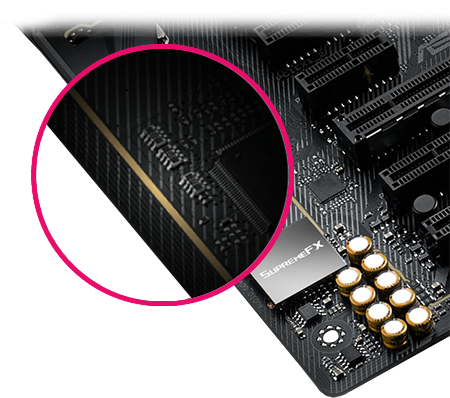

Audio line shielding

Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • DisplayPort 1.2
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 4 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 3D Mount screw port
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 5-pin EXT_FAN(Extension Fan) connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU_OV
  • 1 x Front Panel Audio Header
  • 1 x M.2_FAN Connector
  • 2 x RGB Header
  • 1 x ROG Extension header (ROG_EXT)
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x T_Sensor Connector
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
