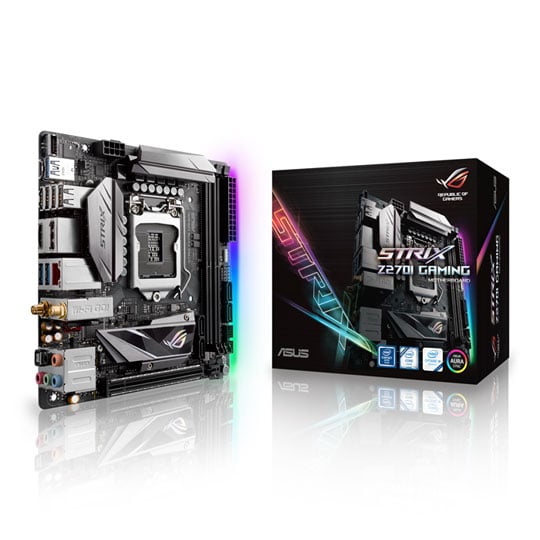

ASUS ROG Strix Z270I Mini ITX Gaming Motherboard

ASUS ROG STRIX Z270I GAMING, Intel Z270, S 1151, DDR4, SATA3, M.2 (PCIe/SATA), Intel GbE, acWiFi, USB 3.0 A+C, Mini ITX

Scan code: LN78090 Manufacturer code: STRIX Z270I GAMING Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £14.86 / month (APR 14.9%)
Monthly Payment: £28.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £165.49
Total inc. interest: £172.30
Monthly Payment: £14.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £165.49
Total inc. interest: £178.29
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £5.48 By DPD On 21st Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Intel LGA-1151 mini-ITX gaming motherboard with double-decker heatsink, Aura Sync RGB LED, 802.11ac Wi-Fi, DDR4 4266 MHz, Dual M.2, SATA 6Gb/s, and a front-panel USB 3.1 Type-C connector. Features • LGA1151 Socket For 7th Gen and 6th Gen Intel® Core™ desktop processors.
• Double-Decker PCH and M.2 Heatsinks Design for optimal heat dissipation and gaming performance.
• Aura Sync RGB LEDs and Aura 4-pin RGB Header For ultimate customizability.
• ROG SupremeFX Audio: Renowned audio performance with dual headphone amplifiers, levelled-up Sonic Studio III, and Sonic Radar III.
• Best Gaming Networking: Intel® Gigabit Ethernet, 2x2 802.11ac MU-MIMO Wi-Fi, and LANGuard and GameFirst technologies.
• 5-Way Optimization: One-click system-wide overclocking.
• Next-Gen Connectivity: Onboard dual M.2 slots for up to 32Gbps of PCIe bandwidth a front-panel USB 3.1 Type-C connector.
• Patent-Pending ASUS SafeSlot for enhanced PCIe retention and shearing resistance.
Core Specifications
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 32GB (2x16GB)
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel® Smart Response Technology
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 1 x System Fan header
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 1 x TPM Header (14-1 pin)
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x ASUS WiFi Go! Module (a/b/g/n/ac + BT 4.1)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 2 x Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x SPDIF Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.0
  • 1 x USB 3.0 Type-C
  • 2 x WiFi Antenna connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
01442 265548
Customers also bought
ASUS ROG STRIX Z270I GAMING, Intel Z270, S 1151, DDR4, SATA3, M.2 (PCIe/SATA), Intel GbE, acWiFi, USB 3.0 A+C, Mini ITX is rated 3.8 out of 5 by 4.
Rated 3 out of 5 by from Good but buggy. A well-designed motherboard to fit into such a small factor, although some compromises have been made. There is no USB 2.0 motherboard header for a monitored water-cooler for instance (very unusual for this to be missing). You would have to run a cable from the external USB 2.0 back into the box, which is messy. There IS a USB 3.1 header that could be used, but that would require a couple of converter cables, which again adds clutter to the inside. I like the ten multi-colour LEDS that are programmable to provide a variety of effects. Sadly the windows software is so buggy you can rarely get this to work reliably. Probably the biggest issue is the auto-overclocking. It's very buggy and frankly if left to it's own devices commonly locks up the PC. Many people have to choke down their RAM speed to 2.333ghz to even get their PC to boot. This motherboard was first released two years ago, and still has all these problems despite BIOS upgrades. ASUS support has been useless and not even got back to me. Overall, this could have been so much more, but the bugs make it no better than average.
Date published: 2017-12-29
Rated 5 out of 5 by from great motherboard for its size I was a little worried about going to m-itx for a gaming pc but very very pleased. audio is really good on the board, 2 x m.2 slots are great. only problem is it only has 3 fan connectors but soon sorted that by getting a fan hub I went for the nzxt grid so overall very happy with this board and my build, running a 1080ti so 4k all the way !!!
Date published: 2017-09-17
Rated 3 out of 5 by from Nice RGB light show but let down by cold boot failures. Despite BIOS updates and following compatibility list faithfully this board does not boot from a cold start. By cold boot I mean mains off at the wall. Requires reset button to be pushed to bring to life. Fine if you always just put to sleep but not for those who like to switch mains off when not in use. Apart from that the board works fine. Well documented problem on Asus ROG forum. Have built two systems in last couple of months using this board and the cold boot problem has only get worse with each Bios revision. Just not good enough Asus.
Date published: 2017-06-08
Rated 4 out of 5 by from A good motherboard A little bit limited on features, but its a powerhorse for overclocking. The bios menu isnt great. Two M.2 slots will be useful for the future im sure. 4 SATA ports is a bit low.
Date published: 2017-03-10
