Scan code: LN77242 Manufacturer code: STRIX Z270G GAMING

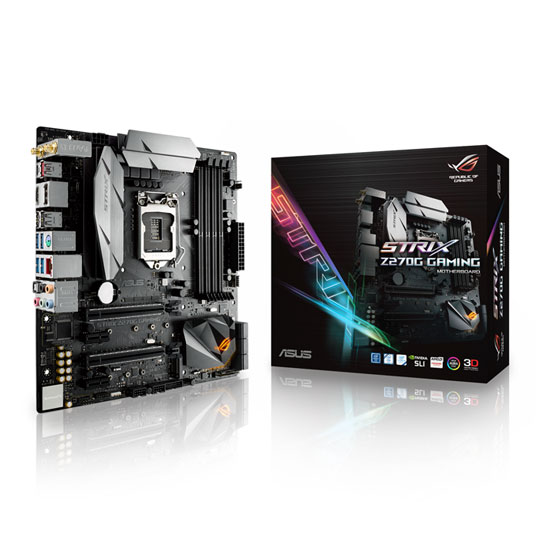

ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard

ASUS ROG STRIX Z270G GAMING, Intel Z270, S 1151, DDR4, SATA3, M.2, 2-Way SLi/CrossFire, GbE/WiFi, USB 3.1 A+C, Micro ATX

Thumbnail 1 : ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard Thumbnail 2 : ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard Thumbnail 3 : ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard Thumbnail 4 : ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard : video thumbnail 1 ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard : video thumbnail 2 ASUS ROG STRIX Z270G Gaming Micro ATX Motherboard : video thumbnail 3
Scan code: LN77242 Manufacturer code: STRIX Z270G GAMING
£151.49
From £13.60 / month (APR 14.9%)
Monthly Payment: £26.29
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £151.49
Total inc. interest: £157.72
Monthly Payment: £13.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £151.49
Total inc. interest: £163.20
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Jul 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview ASUS ROG STRIX Z270G GAMING LGA1151 DDR4 DP HDMI M.2 mATX Motherboard with onboard AC Wifi and USB 3.1. Features • 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling.
• Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers and a 3D-printing friendly mount.
• Maximize your connectivity and speed with Dual M.2, front panel USB 3.1, onboard 802.11ac Wifi and Intel® Optane™ Memory compatibility.
• Two Patent-pending SafeSlots feature an injection moulding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs.
• Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors.
Specifications
Core Specifications
Edition
Form Factor MicroATX
CPU Socket 1151
Chipset Intel Z270
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x CPU OPT Fan Connector
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x System panel connector
  • 1 x Temperature Sensor Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Header
  • 1 x Water Pump Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x ASUS WiFi Go! Module (a/b/g/n/ac + BT 4.1)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x DisplayPort 1.2
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
Customers also bought
Reviews
Questions & Answers

Does this motherboard use Realtek Audio?

Asked by: Selew
Hello, This motherboards audio is ROG SupremeFX 8-Ch. HD Audio S1220A. Regards,
Answered by: JackB
Date published: 2017-06-08
