Scan code: LN126259 Manufacturer code: ROG-STRIX-RX6650XT-O8G-GAMING

ASUS AMD Radeon RX 6650 XT ROG Strix OC 8GB Graphics Card

ASUS ROG Strix Radeon RX 6650 XT OC Edition 8GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 2048 Streams, 2694MHz Boost

Thumbnail 1 : ASUS AMD Radeon RX 6650 XT ROG Strix OC 8GB Graphics Card Thumbnail 2 : ASUS AMD Radeon RX 6650 XT ROG Strix OC 8GB Graphics Card Thumbnail 3 : ASUS AMD Radeon RX 6650 XT ROG Strix OC 8GB Graphics Card Thumbnail 4 : ASUS AMD Radeon RX 6650 XT ROG Strix OC 8GB Graphics Card
Scan code: LN126259 Manufacturer code: ROG-STRIX-RX6650XT-O8G-GAMING
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ROG Strix Radeon RX 6650 XT OC Gaming RDNA2 Graphics Card by ASUS

ASUS RX6750 XT

Frame Crunching Colossus The ROG Strix Radeon RX 6650XT OC brings an industry leading cooling solution to high-end power performance and additional "creature" comforts to a smaller form factor. Dual axial-tech fans, dual-ball bearings, premium level chokes, capacitors and optimised power stages. as well as a vented backplate pave the way to supreme performance. Powered by the all-new breakthrough RNDA2 architecture - engineered to deliver powerhouse performance to all gamers.
The new AMD Radeon™ RX 6950 XT, RX 6750 XT, and RX 6650 XT graphics cards are optimised for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. The Radeon™ RX 6000 Series graphics cards take full advantage of the latest innovations in upscaling technologies such as AMD FidelityFX™ Super Resolution2 or the new Radeon™ Super Resolution1. Whether it is AAA gaming or eSports, experience all your games without compromise.

2048Stream Processors

8GBGDDR6 Memory

2523 (2694) MHzCore Clock (OC Mode)

2543 (2694) MHzBoost Clock

The Power of Two

ASUS RX6750 XT

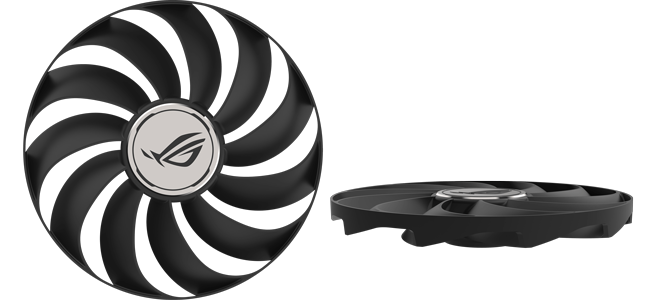

Axial-Fan Technology Optimal cooling performance is provided by powerful dual axial-tech fans, featuring dual-ball bearings, half-width barrier rings and intelligent stop start technology where the fans engage at 60°C and shut off when temperatures reach 52°C allowing for increased product longevity and decreased noise when the system is idling or under a low load.

No Nonsense Metal Shroud

Strong Improved Backplate

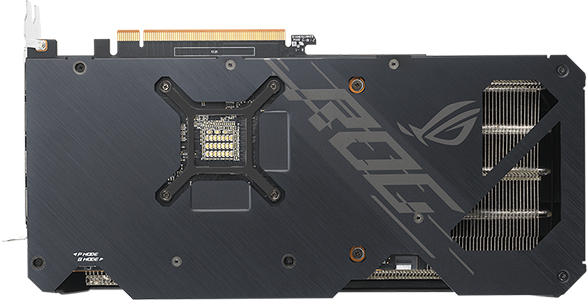

ARMORED UNDERSIDEThe underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual BIOS switch allows customisation of the card’s default performance profile without software.

Not Just a Pretty Face

4K Recording

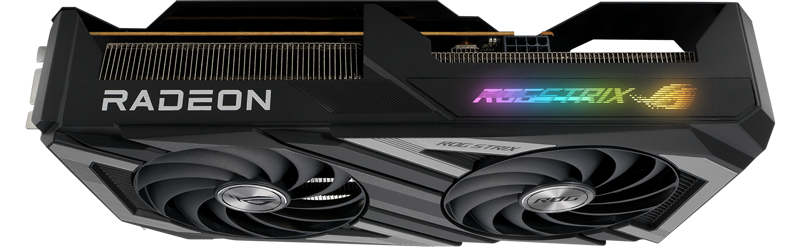

Gnarly GrillA striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs. The ROG Strix Radeon™ RX 6650 XT features Aura RGB lighting on the side of the card. Aura Sync software connects compatible products for a completely customised lightning setup. You can sync to music, change color based on temperature, or select from a large number of patterns and static options. Look out for the Aura Sync logo when you're picking parts for your build.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimised Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6950 XT RX 6900 XT RX 6800 XT RX 6800 RX 6750 XT RX 6700 XT RX 6650 XT RX 6600 XT RX 6600 RX 6500 XT RX 6400 RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RNDA2 RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 5,120 4,608 3,840 2,560 2,560 2,048 2,048 1,792 1,024 768 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 80 72 60 40 40 32 32 28 16 12 0 0 0 0 0
Reference Base Clock 2,100MHz 2,015 MHz 2,015 MHz 1,815 MHz 2,495MHz 2,321 MHz 2,410MHz 1,986MHz 1,626MHz 2,610MHz TBC 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,310MHz 2,250MHz 2,250 MHz 2,105 MHz 2,600MHz 2,581 MHz 2,635MHz 2,589MHz 2,491MHz 2,815MHz 2,321MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 12GB GDDR6 8GB GDDR6 8GB GDDR6 8GB GDDR6 4GB GDDR6 4GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 256-bit 192-bit 192-bit 128-bit 128-bit 128-bit 64-bit 64-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 335W 300W 300W 250W 250W 160W 180W 160W 132W 107W 53W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6650 XT
Edition ROG Strix OC Editiion
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 2048
Core Clock
Boost Clock 2694 MHz
Video Memory (VRAM)
Memory Size 8GB
Memory Type GDDR6
Memory Clock 17.5 MHz
Memory Speed (Effective with DDR)
Memory Bus 128 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Dual Fan (2)
Cooler Design
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0
Connectivity
  • 3 x DisplayPort 1.4a
  • 1 x HDMI 2.1
Visuals
AMD CrossFire Support Supported
AMD Freesync Support Yes
AMD FreeSync Version
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 650 W
Maximum GPU Temperature
Physical
Width
Low Profile Support
Dimensions 281 x 135 x 59 mm
Package Type Retail
Additional Information
Scan Code LN126259
Model Number ROG-STRIX-RX6650XT-O8G-GAMING
