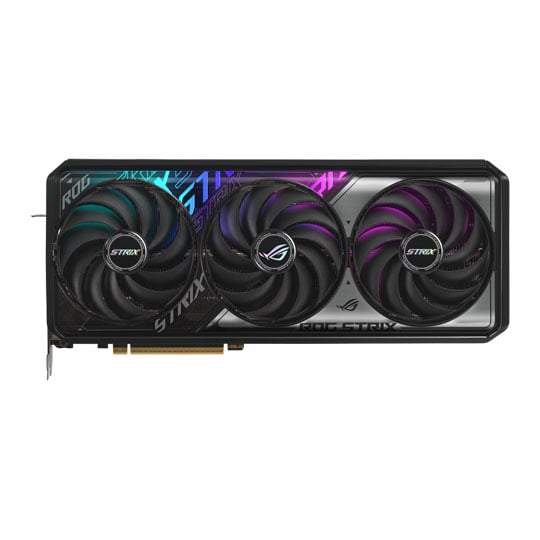

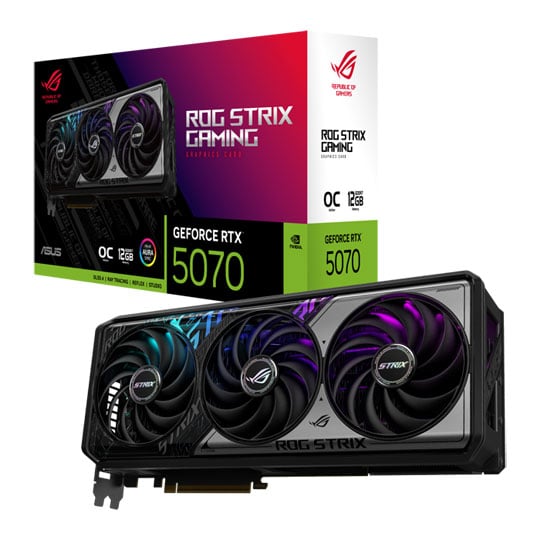

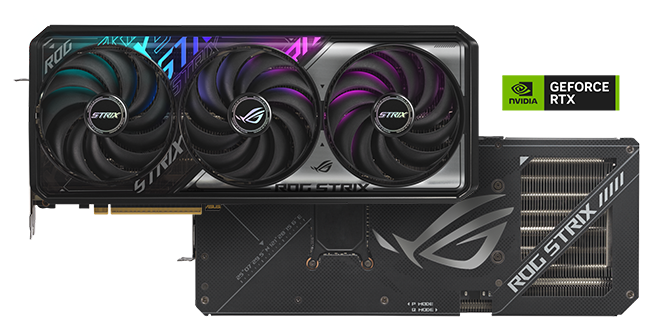

ASUS ROG STRIX NVIDIA GeForce RTX 5070 OC Blackwell Graphics Card

ASUS NVIDIA GeForce RTX 5070 ROG STRIX OC 12GB Graphics Card

The ROG Strix GeForce RTX 5070 12GB GDDR7 OC Edition delivers high-performance gaming and creative capabilities powered by NVIDIA Blackwell architecture, with 6144 CUDA cores, advanced AI features, enhanced ray tracing and next-generation graphics technologies. Equipped with 12GB of GDDR7 memory, fifth-generation Tensor Cores and fourth-generation Ray Tracing Cores, the RTX 5070 is built for demanding games and creative workloads, while NVIDIA DLSS 4 with Multi Frame Generation helps deliver higher frame rates and improved image quality. ASUS combines the GPU with advanced cooling featuring enlarged Axial-tech fans, reverse-rotation technology, a vented backplate, MaxContact technology and a phase-change GPU thermal pad for efficient heat transfer and reliable performance under heavy loads. 0dB technology allows the fans to stop during lighter workloads for quieter operation, while Aura Sync ARGB lighting provides customisable illumination. ASUS GPU Tweak III gives users the tools to fine-tune GPU clocks, voltages and fan speeds, with real-time monitoring for easy performance optimisation.

Impeccable Cooling Solution

Axial-Tech Upgrades - Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology - The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vented Backplate - Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design - MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pads - By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Breathtaking Reliability

Premium Power Delivery - Digital power control, high-current power stages, and 15K capacitors provide ample reserves to reliably enhance performance.

ASUS GPU Guard - To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating - A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto-Extreme Technology - An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

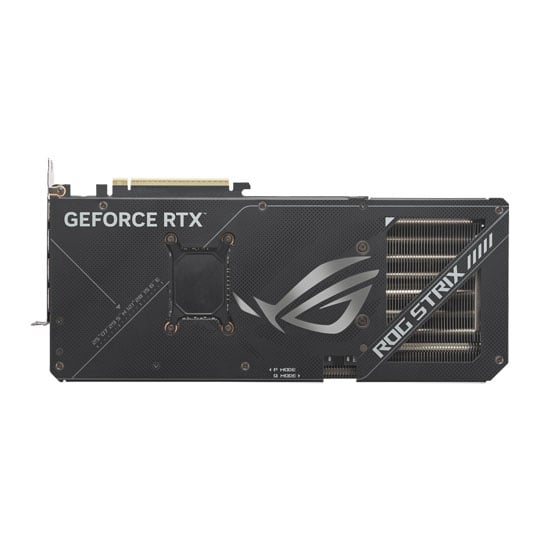

Protective Backplate - The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket - The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.

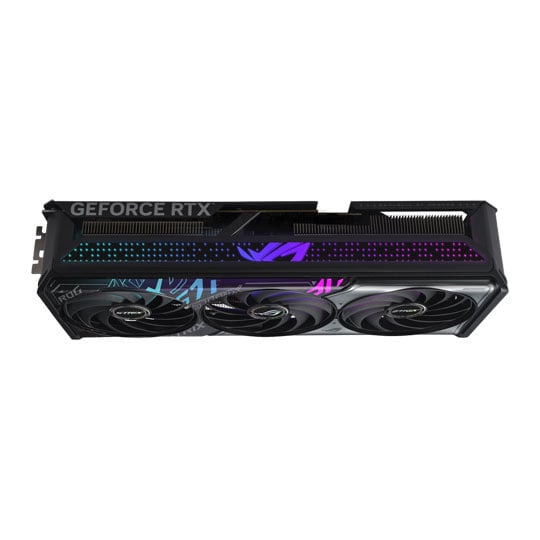

ASUS Aura Sync

The ARGB lighting components compatible with Aura on the card's shroud and right edge offer limitless options for customizing colors and effects. Combine these with a variety of compatible system parts to synchronize the illumination and create a truly unique build.

GPU Tweak III

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

• NVIDIA GeForce RTX 5070 powered by advanced Blackwell architecture
• 6144 CUDA cores for high-performance gaming and creative workloads
• 12GB GDDR7 memory for fast, high-bandwidth performance
• NVIDIA DLSS 4 with Multi Frame Generation for enhanced frame rates and image quality
• Fifth-generation Tensor Cores for advanced AI performance
• Fourth-generation Ray Tracing Cores for realistic lighting, reflections and shadows
• Advanced ASUS cooling with Axial-tech fans, reverse rotation, vented backplate and MaxContact technology
• Phase-change GPU thermal pad for improved heat transfer and long-term thermal performance
• 0dB fan technology for quiet operation during lighter workloads
• Aura Sync ARGB lighting with customisable effects
• ASUS GPU Tweak III for GPU tuning, fan control and real-time monitoring
• Premium build quality with protective PCB coating, reinforced backplate and stainless-steel mounting bracket
